Eighteen Sound 6ND410 16Ω

LF Driver

WatchWatch price SimSimulate

Media

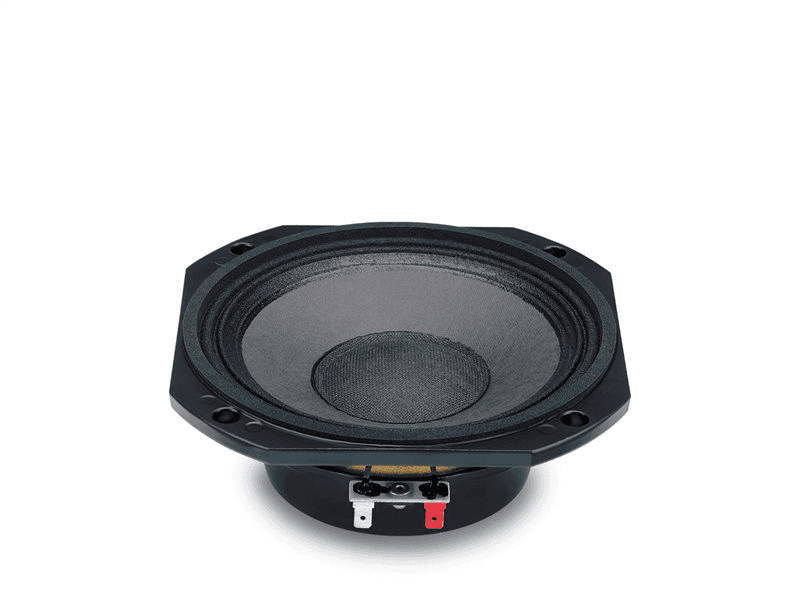

Eighteen Sound 6ND410 6.5 inch 16 ohm loudspeaker driver view 1

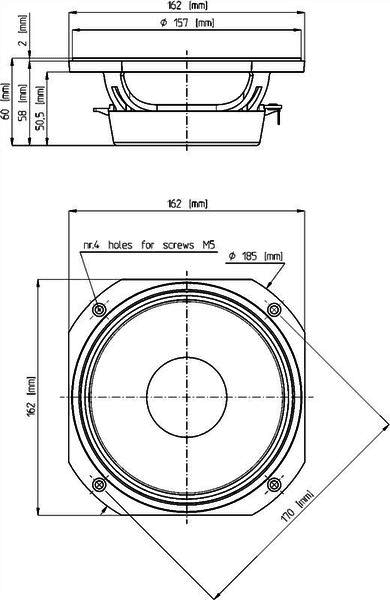

Eighteen Sound 6ND410 6.5 inch 16 ohm loudspeaker driver view 2

Auto-advancing

Overview

LF Driver

Eighteen Sound 6ND410

Eighteen Sound 6ND410 is a 6.5" 16 ohm LF driver rated at 180W RMS. The validated T/S data includes Fs 149Hz, Qts 0.48, Vas 6.2L, Xmax 2mm, sensitivity 97.7dB, plus 29cm³ Vd and 271 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size

6.5"

Impedance

16Ω

RMS Power

180W

Sensitivity

97.7dB

102.0dBmanufacturer; using T/S-derived value (4.3dB delta).

EBP

271

Vented alignment

V_d

29cm³

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves

frequency response172 ptsp2medium

Curve provenanceInspect 2 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

frequency response
Frequency response
Trace datasheet-response-trace-poc/v2
172 plotted pointsSource file SHA-256 2c46ae8fe3aa…Medium confidence2,459 selected pixels of 2,923
Manufacturer datasheet, page 2
impedance
Impedance response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 2c46ae8fe3aa…Medium confidence4,480 selected pixels of 5,070
Manufacturer datasheet, page 2

T/S Parameters

Valid

Canonical

Fs149Hz

Qts0.48

Qes0.55

Qms4.1

Vas6.2L

Re10.6Ω

Le0.14mH

BL13.0Tm

Sd143cm²

Mms9g

Xmax2.0mm

SPL98dB

Power180W

Power Nominal180W

Impedance16Ω

F Low200Hz

F High8000Hz

What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight1.3kg

Diameter162.0mm

Overall Depth60.0mm

Cutout Diameter148.0mm

Bolt Circle Diameter170.0mm
