6-inch LF driver · NERO series

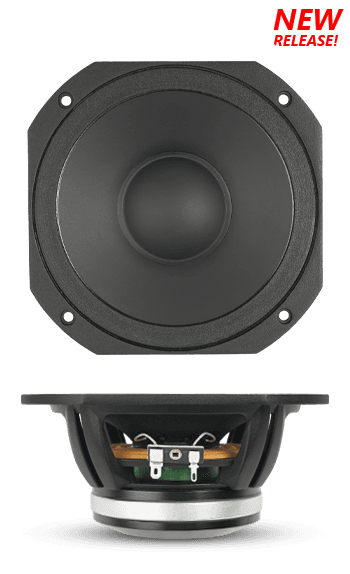

SB Audience NERO-6MRN151D 8Ω
8 Ω
No price for delivery to the UK
- Fs
- 230Hz
- Xmax
- 4mm
- SPL
- 94dB
- Pe
- –
- BL
- 14.5T·m
- Vd
- 55cm³
- Qts
- 0.48
- Vas
- 0.8L
SB Audience NERO-6MRN151D is a 6-inch 8 ohm LF driver. The validated T/S data includes Fs 230 Hz, Qts 0.48, Vas 0.8 L, Xmax 4 mm, sensitivity 94.3 dB, plus 55 cm³ Vd and 397 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 230Hz
- Qts
- 0.48
- Qes
- 0.58
- Qms
- 2.6
- Vas
- 0.8L
- Re
- 5.6Ω
- Le
- 0.17mH
Motor and cone
- BL
- 14.5T·m
- Sd
- 137cm²
- Mms
- 15g
- Xmax
- 4mm
- Vd †
- 55cm³
Power and response
- Sensitivity †
- 94.3dB
- Impedance
- 8Ω
- EBP †
- 397 · Leans vented
Size and mounting
- Diameter
- 185mm
- Cutout
- 147.5mm
- Bolt circle
- 170mm
- Weight
- 1.6kg
Other published values
- Cms
- 0.03mm/N
- Rms
- 8.21kg/s
Other dimensions
- Mounting Depth
- 73.5
† Calculated by bits from the published values
What this validation status means
Everything else SB Audience lists
LF · Primary · 6″
- BL
- 14.5T·m
- Fs
- 230Hz
- Le
- 0.17mH
- Re
- 5.6Ω
- Sd
- 137cm²
- Cms
- 0.03mm/N
- Mms
- 15g
- Qes
- 0.58
- Qms
- 2.6
- Qts
- 0.48
- Rms
- 8.21kg/s
- SPL
- 94.3dB
- Vas
- 0.8L
- Xmax
- 4mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 94.3dB
- Weight
- 1.6kg
- Diameter
- 185mm
- Mounting Depth
- 73.5
- Cutout
- 147.5mm
- Bolt circle
- 170mm
02
Compare
Same-size drivers, compared with the NERO-6MRN151D. Clear differences are green when better and red when worse.
This driverNERO-6MRN151D
Best price
–
Fs
230 Hz
Qts
0.48
Vas
0.8 L
BL
14.5 T·m
Xmax
4 mm
Sensitivity
94.3 dB
Power
–
Dayton AudioSIG150-4
£32.02Fs62 Hz −73%, better
Qts0.49 –
Vas8.7 L +987%, worse
BL5.2 T·m −64%, worse
Xmax4 mm –
Sensitivity87.8 dB −6.5, worse
CelestionTRUVOX 0615
£32.65Fs90 Hz −61%, better
Qts0.47 –
Vas7.4 L +830%, worse
BL8.0 T·m −45%, worse
Xmax3.5 mm −13%, worse
Sensitivity92.2 dB −2.1, worse
Dayton AudioRS125P-4
£37.76Fs70 Hz −70%, better
Qts0.48 –
Vas4.0 L +397%, worse
BL3.5 T·m −76%, worse
Xmax4 mm –
Sensitivity85.8 dB −8.5, worse
Dayton AudioRS125P-8
£37.76Fs70 Hz −70%, better
Qts0.44 −8%
Vas4.0 L +397%, worse
BL5.1 T·m −65%, worse
Xmax4 mm –
Sensitivity86.1 dB −8.2, worse
LavoceMAF061.50
£42.73Fs177 Hz −23%, better
Qts0.52 +8%
Vas1.9 L +137%, worse
BL10.5 T·m −27%, worse
Xmax3.6 mm −10%
Sensitivity94.7 dB –
FaitalPRO6FE300
£44.69Fs100 Hz −57%, better
Qts0.46 −4%
Vas4.7 L +488%, worse
BL10 T·m −31%, worse
Xmax3.9 mm –
Sensitivity91.9 dB −2.4, worse
CelestionTFX0515
£47.91Fs74 Hz −68%, better
Qts0.47 –
Vas6.5 L +716%, worse
BL7.0 T·m −52%, worse
Xmax3.8 mm −6%
Sensitivity89.2 dB −5.1, worse
RS SpeakersMW 140.38 FIBONACCI
£119.96Fs56 Hz −76%, better
Qts0.44 −8%
Vas6.9 L +763%, worse
BL6.2 T·m −58%, worse
Xmax4 mm –
Sensitivity85.9 dB −8.4, worse
FaitalPRO6PR130
£122.46Fs175 Hz −24%, better
Qts0.48 –
Vas4.2 L +425%, worse
BL11.4 T·m −21%, worse
Xmax4.6 mm +15%, better
Sensitivity98 dB +3.7, better
PRV Audio6MR500-NDY
£137.66Fs105 Hz −55%, better
Qts0.53 +10%, worse
Vas5.1 L +541%, worse
BL9.8 T·m −32%, worse
Xmax4.2 mm +5%
Sensitivity92.4 dB −1.9
B&C6NSM51
£150.38Fs280 Hz +22%, worse
Qts0.60 +25%, worse
Vas0.7 L −13%, better
BL13.9 T·m −4%
Xmax2.8 mm −30%, worse
Sensitivity95.6 dB +1.3

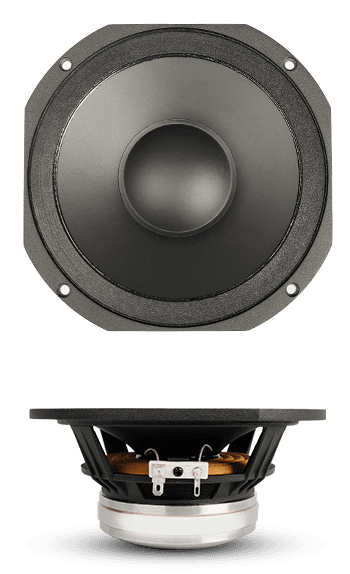

SB AudienceNERO-6MRN150D
£168.92Fs200 Hz −13%, better
Qts0.48 –
Vas1.1 L +38%, worse
BL13.1 T·m −10%
Xmax3.4 mm −14%, worse
Sensitivity93.8 dB −0.5
MorelUW 1058
£477.60Fs26 Hz −89%, better
Qts0.43 −10%, better
Vas40.8 L +5000%, worse
BL15.3 T·m +6%
Xmax12.5 mm +213%, better
Sensitivity83 dB −11.3, worse
CelestionNTR06-1705B
No current priceFs133 Hz −42%, better
Qts0.44 −8%
Vas3.6 L +354%, worse
BL10.7 T·m −26%, worse
Xmax4 mm –
Sensitivity93.7 dB −0.6
Dayton AudioCFC180-8
No current priceFs51 Hz −78%, better
Qts0.51 +6%
Vas12.4 L +1455%, worse
BL9 T·m −38%, worse
Xmax4 mm –
Sensitivity86.5 dB −7.8, worse
CIARECW170
No current priceFs55 Hz −76%, better
Qts0.47 –
Vas18 L +2150%, worse
BL4.6 T·m −68%, worse
Xmax4.3 mm +7%
Sensitivity89.3 dB −5, worse
No photo
PHL Audio930ND
No current priceFs129 Hz −44%, better
Qts0.48 –
Vas2.6 L +225%, worse
BL8.8 T·m −39%, worse
Xmax4.5 mm +13%, better
Sensitivity92.1 dB −2.2, worse
BMS6N160
No current priceFs89 Hz −61%, better
Qts0.47 –
Vas7.7 L +863%, worse
BL11.3 T·m −22%, worse
Xmax5 mm +25%, better
Sensitivity91.7 dB −2.6, worse
Audio Technology15 H 52 06 13 SDKAM-LR
No current priceFs65 Hz −72%, better
Qts0.45 −6%
Vas9.2 L +1050%, worse
BL6.4 T·m −56%, worse
Xmax4 mm –
Sensitivity89.1 dB −5.2, worse
No photo
PHL Audio930
No current priceFs130 Hz −43%, better
Qts0.50 +4%
Vas2.5 L +213%, worse
BL8.7 T·m −40%, worse
Xmax4.5 mm +13%, better
Sensitivity91.9 dB −2.4, worse
CIARECXI160
No current priceFs91 Hz −60%, better
Qts0.51 +6%
Vas7.8 L +875%, worse
BL6.8 T·m −53%, worse
Xmax4.5 mm +13%, better
Sensitivity92.2 dB −2.1, worse
WavecorWF168OM02
No current priceFs40 Hz −83%, better
Qts0.54 +13%, worse
Vas29.5 L +3588%, worse
BL6 T·m −59%, worse
Xmax4.2 mm +5%
Sensitivity87.2 dB −7.1, worse
Tang BandW6-789E
No current priceFs50 Hz −78%, better
Qts0.46 −4%
Vas41.5 L +5091%, worse
BL5.1 T·m −65%, worse
Xmax4.3 mm +6%
Sensitivity92.2 dB −2.1, worse
Dayton AudioCFC180-4
No current priceFs52 Hz −77%, better
Qts0.43 −10%, better
Vas11.5 L +1337%, worse
BL6.8 T·m −53%, worse
Xmax4 mm –
Sensitivity87.1 dB −7.2, worse
Tang BandW6-658I
No current priceFs45 Hz −80%, better
Qts0.44 −8%
Vas28.3 L +3439%, worse
BL6.3 T·m −56%, worse
Xmax4.1 mm –
Sensitivity89.2 dB −5.1, worse
BMS6C150
No current priceFs88 Hz −62%, better
Qts0.46 −4%
Vas7.6 L +850%, worse
BL11.4 T·m −22%, worse
Xmax5 mm +25%, better
Sensitivity92 dB −2.3, worse
CIAREPWA6.38
No current priceFs77 Hz −67%, better
Qts0.56 +17%, worse
Vas5.6 L +600%, worse
BL8.7 T·m −40%, worse
Xmax4 mm –
Sensitivity88.2 dB −6.1, worse
HiViW6
No current priceFs40 Hz −83%, better
Qts0.52 +8%
Vas25.1 L +3038%, worse
BL6.7 T·m −54%, worse
Xmax4.3 mm +7%
Sensitivity86 dB −8.3, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports Import VAT and duty may apply | £168.92 | Back order | Visit shop at SoundImports |
