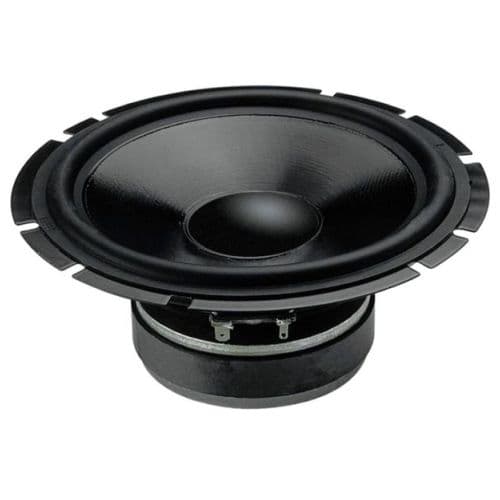

CIARE CW170
CIARE CW170 is a 6.5" 4 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 55Hz, Qts 0.47, Vas 18L, Xmax 4.3mm, sensitivity 89.3dB, plus 55cm³ Vd and 98 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
4Ω
RMS Power
150W
Sensitivity
89.3dB
EBP
98
Either alignment
Vd
55cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,433 selected pixels of 1,650
T/S Parameters
Valid
Fs55Hz
Qts0.47
Qes0.56
Qms3.0
Vas18.0L
Re3.3Ω
Le0.27mH
BL4.6Tm
Sd129cm²
Mms10g
Xmax4.3mm
SPL89dB
Power150W
Power Nominal60W
Impedance4Ω
F Low45Hz
F High45Hz
Voice Coil25mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 4Ω
Source: inc VAT · 20%
£33.33
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
Diameter165.0mm
Overall Depth70.0mm
Cutout Diameter142.0mm
Bolt Circle Diameter156.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CW170
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
69%
Similarity

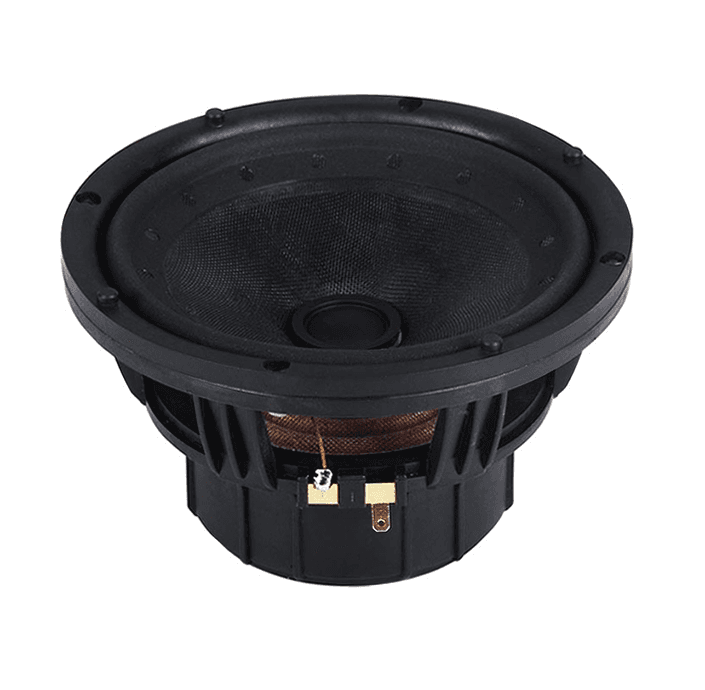

Tang Band
W6-2090
6"
Xmax4.8mm+12%
Qts0.49+4%
BL4.1Tm-10%
Vas13.1L-27%
Qes0.55-2%
69%
Similarity

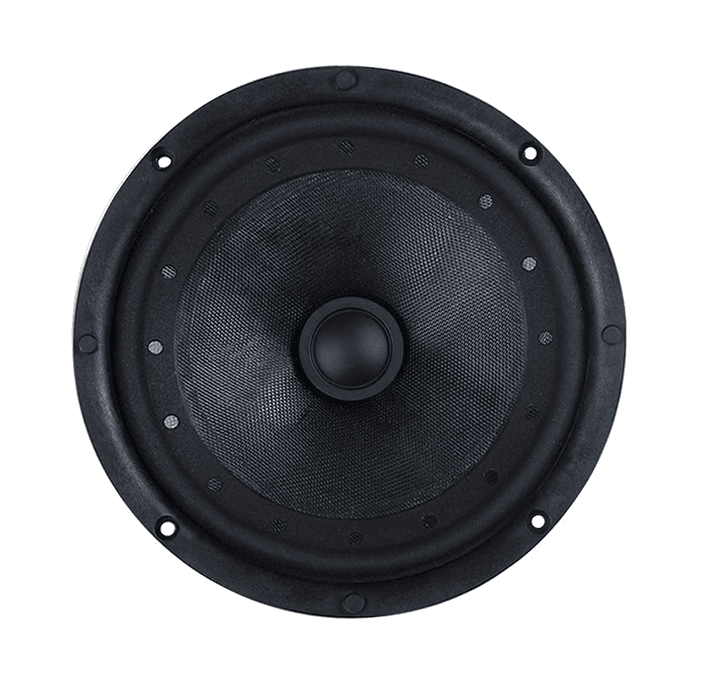

Tang Band
W6-2090
6"
Xmax4.8mm+12%
Qts0.49+4%
BL4.1Tm-10%
Vas13.1L-27%
Qes0.55-2%
66%
Similarity
Wavecor
WF166TU01
6.5"
Xmax3.5mm-19%
Qts0.45-4%
BL5.2Tm+13%
Vas23.2L+29%
Qes0.47-16%
62%
Similarity
£31.79
Dayton Audio
SIG150-4
6"
Xmax4mm-7%
Qts0.49+4%
BL5.2Tm+13%
Vas8.7L-52%
Qes0.53-5%
56%
Similarity

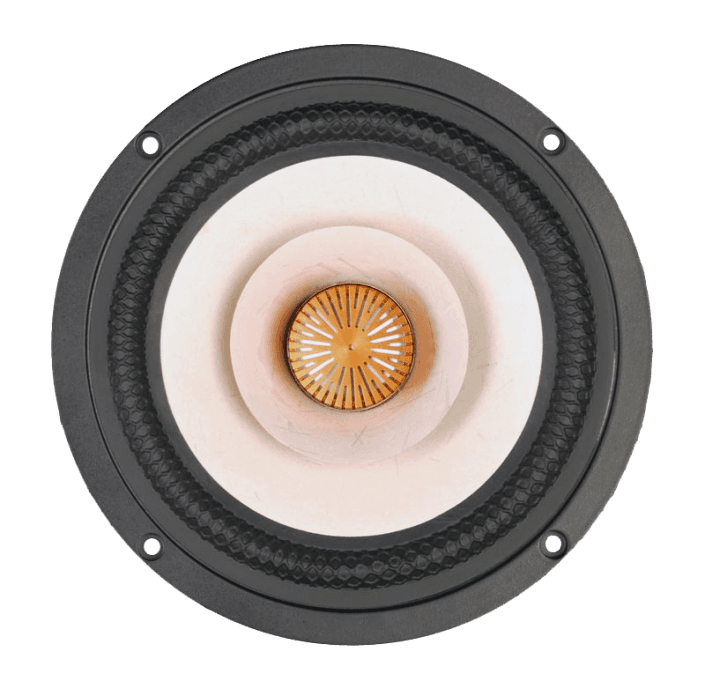

Tang Band
