Overview
LF Driver
GRS
GRS 6SMP-8

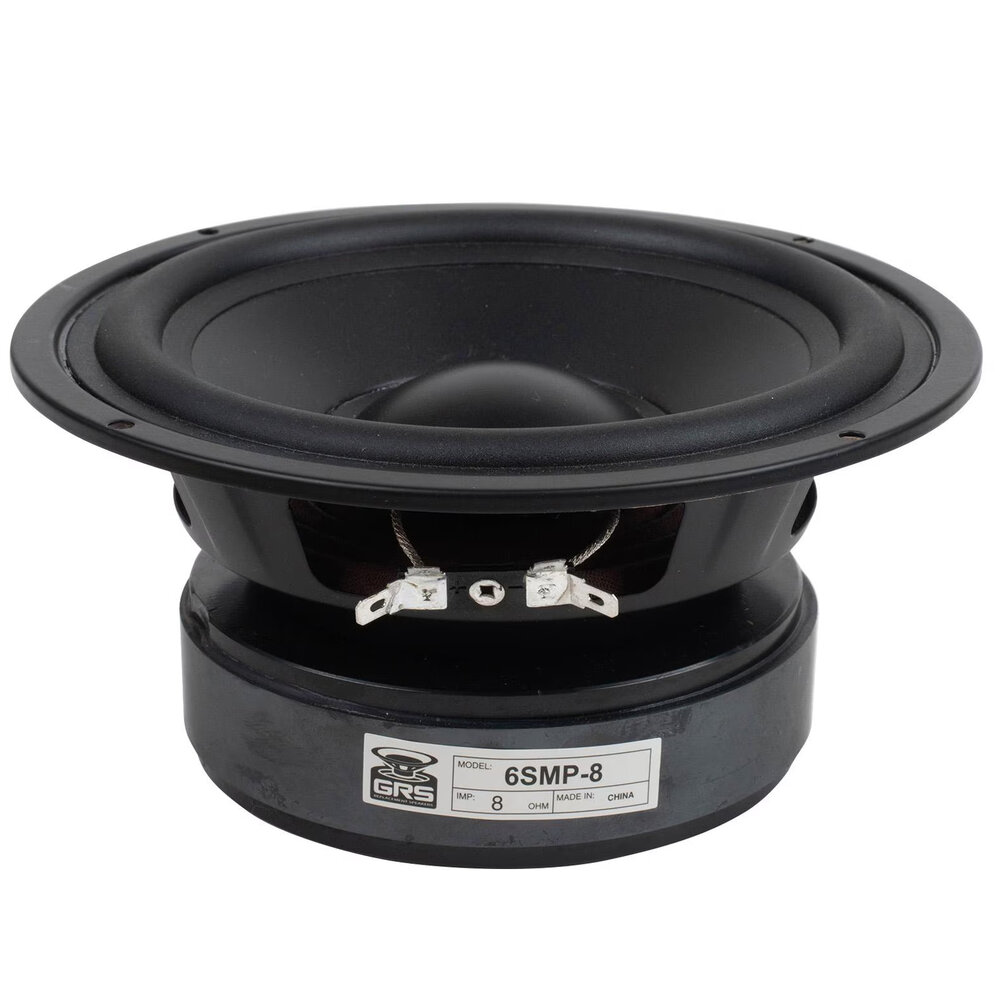

GRS 6SMP-8 is a 6.5" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 47Hz, Qts 0.45, Vas 14.5L, Xmax 5mm, sensitivity 86.5dB, plus 68cm³ Vd and 87 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
50W
Sensitivity
86.5dB
87.7dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
87
Either alignment
Vd
68cm³
T/S Parameters
Valid
Fs47Hz
Qts0.45
Qes0.54
Qms2.7
Vas14.5L
Re6.1Ω
Le0.43mH
BL8.4Tm
Sd136cm²
Mms21g
Xmax5.0mm
SPL87dB
Power50W
Impedance8Ω
F Low40Hz
F High2500Hz
Voice Coil39mm
Pricing & availability
Price definitionsVendor offers
1 vendorsoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£34.32
inc VAT
Out of stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
GRS
6SMP-8
6.5"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£110.95
Fountek
FW168K
6.5"
Xmax5mm0%
Qts0.43-5%
BL7.9Tm-6%
Vas15.1L+4%
Qes0.52-3%
89%
Similarity
Accuton
C168-6-890
6.5"
Xmax5mm0%
Qts0.44-2%
BL7.5Tm-10%
Vas15L+3%
Qes0.49-9%
84%
Similarity
HiVi
D6.8B
6.75"
Xmax5.3mm+6%
Qts0.450%
BL8.9Tm+6%
Vas13.5L-7%
Qes0.49-9%
77%
Similarity
HiVi
C6.5
6.5"
Xmax4.9mm-2%
Qts0.38-16%
BL9.1Tm+9%
Vas13.3L-8%
Qes0.47-13%
72%
Similarity
HiVi
S6.5RMKII
6.5"
Xmax5.8mm+16%
Qts0.48+7%
BL6.4Tm-24%
Vas15.7L+8%
Qes0.55+2%
71%
Similarity
Beyma
206B30P8
6.5"
Xmax5.5mm+10%
Qts0.5+11%
BL6.8Tm-19%
Vas15.6L+8%
Qes0.6+11%
71%
Similarity
£30.95
Peerless
SDS-P830657
6.5"
Xmax5.5mm+9%
Qts0.47+4%
BL6.9Tm-17%
Vas20.1L+39%
Qes0.56+5%
71%
Similarity
Peerless
FSL-0615R01-08
6.5"
Xmax6mm+20%
Qts0.450%
BL8.5Tm+1%
Vas6.7L-54%
Qes0.51-6%
67%
Similarity
£42.07
Lavoce
WAF061.80
6.5"
Xmax4.9mm-2%
Qts0.42-7%
BL9.5Tm+13%
Vas7.3L-50%
Qes0.44-19%
66%
Similarity
CIARE
HW161N
6.5"
Xmax5mm0%
Qts0.37-18%
BL7.4Tm-11%
Vas19.9L+37%
Qes0.46-15%
63%
Similarity
£32.65
Celestion
TRUVOX 0615
6.5"
Xmax3.5mm-30%
Qts0.47+5%
BL8Tm-4%
Vas7.4L-49%
Qes0.52-4%
63%
Similarity
HiVi
S6.5
6.5"
Xmax5.8mm+16%
Qts0.42-7%
BL6.4Tm-24%
Vas18.4L+27%
Qes0.47-13%
