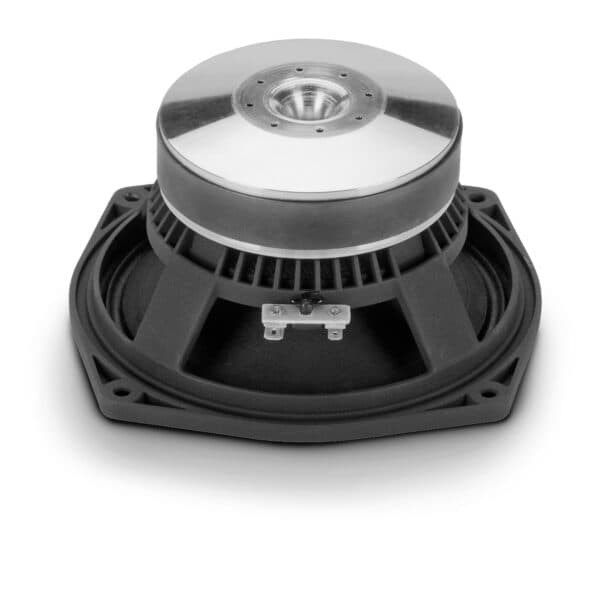

BMS 6S117 16Ω
16 Ω · 80–3500 Hz
No current price
- Fs
- 80Hz
- Xmax
- 5mm
- SPL
- 92dB
- Pe
- 130W
- BL
- 11.3T·m
- Vd
- 72cm³
- Qts
- 0.43
- Vas
- 10L
BMS 6S117 is a 6.5-inch 16 ohm LF driver rated at 130 W RMS. The validated T/S data includes Fs 80 Hz, Qts 0.43, Vas 10.4 L, Xmax 5 mm, sensitivity 92.4 dB, plus 72 cm³ Vd and 163 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 80Hz
- Qts
- 0.43
- Qes
- 0.49
- Qms
- 3.3
- Vas
- 10.4L
- Re
- 11.4Ω
- Le
- 0.64mH
Motor and cone
- BL
- 11.3T·m
- Sd
- 143cm²
- Mms
- 11g
- Xmax
- 5mm
- Vd †
- 72cm³
- Voice coil
- 38mm
Power and response
- Sensitivity †
- 92.4dB
- Manufacturer sensitivity
- 93dB
- Power
- 130W
- Impedance
- 16Ω
- Range
- 80–3500Hz
- EBP †
- 163 · Leans vented

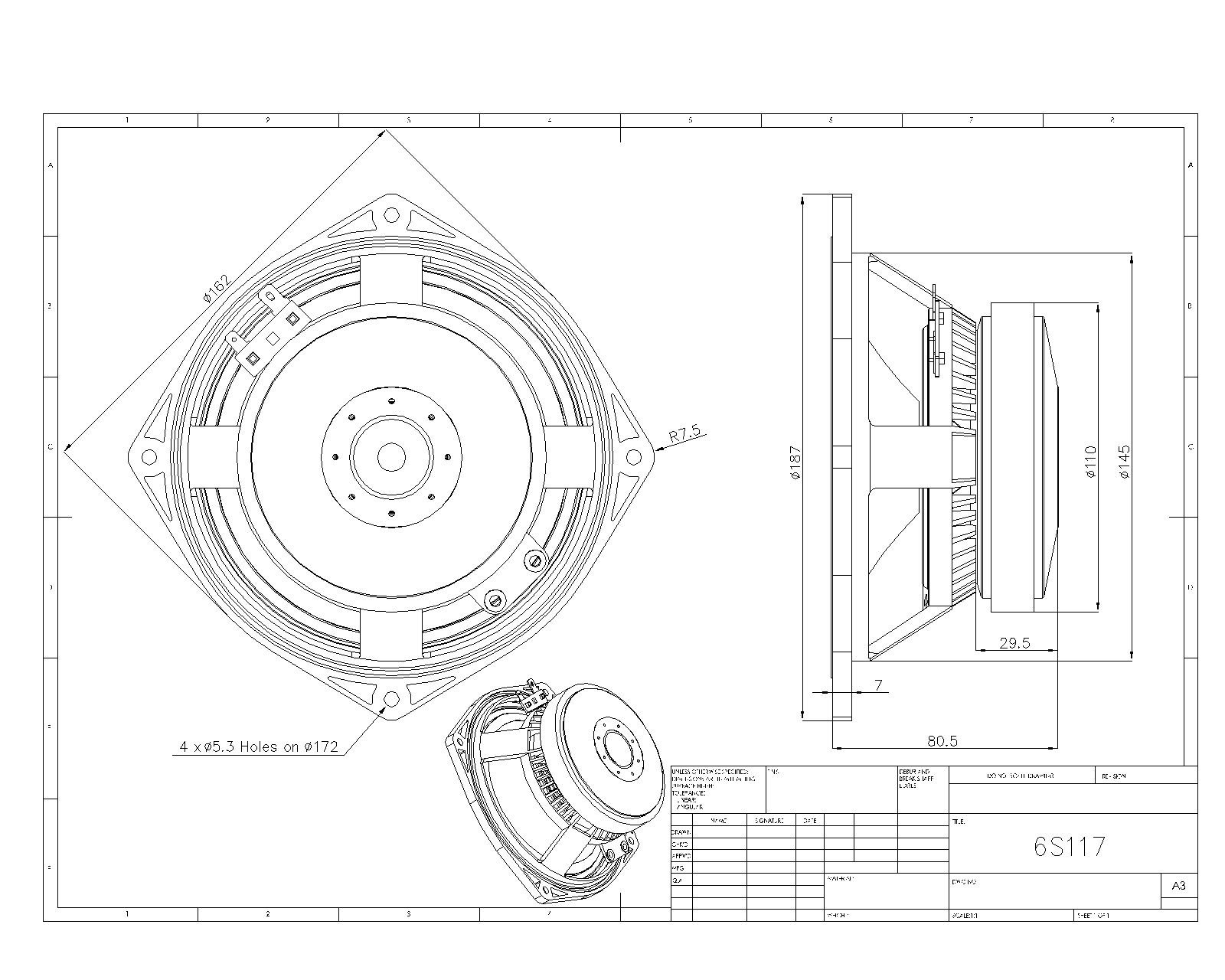

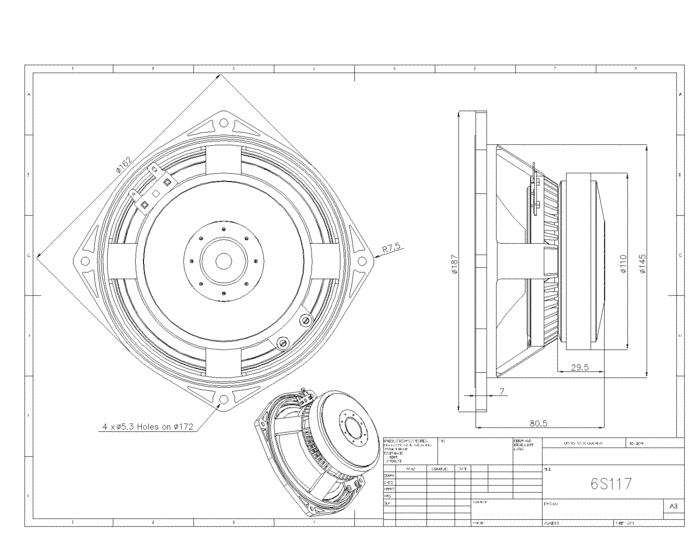

Size and mounting
- Diameter
- 162mm
- Cutout
- 146mm
- Bolt circle
- 172mm
- Depth
- 81.5mm
- Weight
- 1.6kg
Other published values
- Cms
- 0.36mm/N
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 11.3T·m
- Fs
- 80Hz
- Le
- 0.64mH
- Re
- 11.4Ω
- Sd
- 143cm²
- Cms
- 0.36mm/N
- Mms
- 11g
- Qes
- 0.49
- Qms
- 3.3
- Qts
- 0.43
- SPL
- 92.4dB
- Vas
- 10.4L
- Xmax
- 5mm
- Power
- 130W
- Impedance
- 16Ω
- Sensitivity
- 93dB
- Low limit
- 80Hz
- Calculated sensitivity †
- 92.4dB
- High limit
- 3500Hz
- Manufacturer sensitivity
- 93dB
- Voice coil
- 38mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 11.3 Tesla m
- 1. application
- Low-middle
- 18. moving mass
- Mms 0.011 kg
- 13. dc resistance
- Re 11.4 Ohm
- 9. magnet gap depth
- 5 mm
- 17. equivalent volume
- Vas 10.4 L
- 2. nominal impendance
- 16 Ohm
- 5. frequency response
- 80 – 3500 Hz
- 6. voice coil diameter
- 38 (1.5″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 80 Hz
- 14. mechanical q factor
- Qms 3.3
- 15. electrical q factor
- Qes 0.49
- 16. total quality factor
- Qts 0.43
- 19. mechanical complience
- Cms 0.36 mm / N
- 21. effective piston area
- Sd 0.0143 m²
- 22. max. linear excursion
- Xmax +/- 5 mm
- 23. voice coil inductance
- Le1k 0.64 mH
- 4. sensitivity (1 w / 1 m)
- 93 dB
- 3. power handling aes noise
- 130 W
- 8. voice coil winding depth
- 15 mm
- 11. effect. diaphragm diameter d
- 135 mm
