Overview
LF Driver
Tang Band

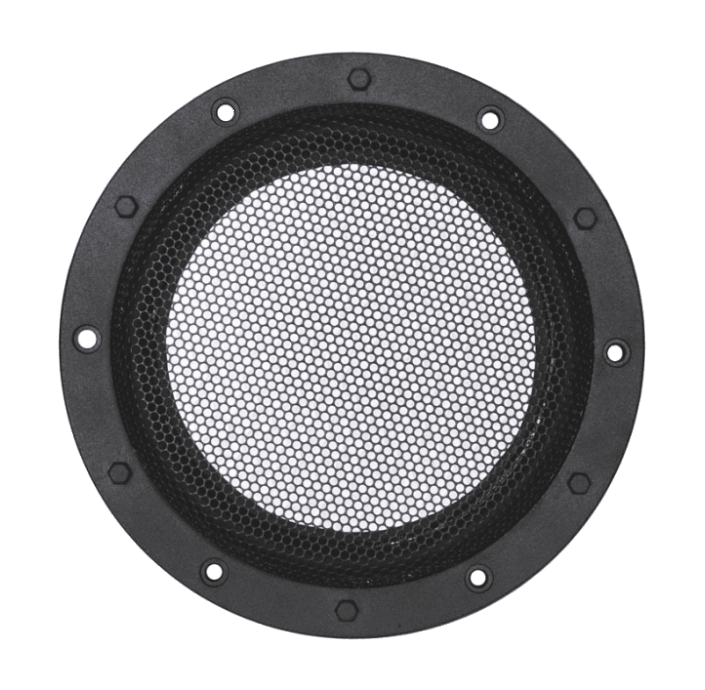

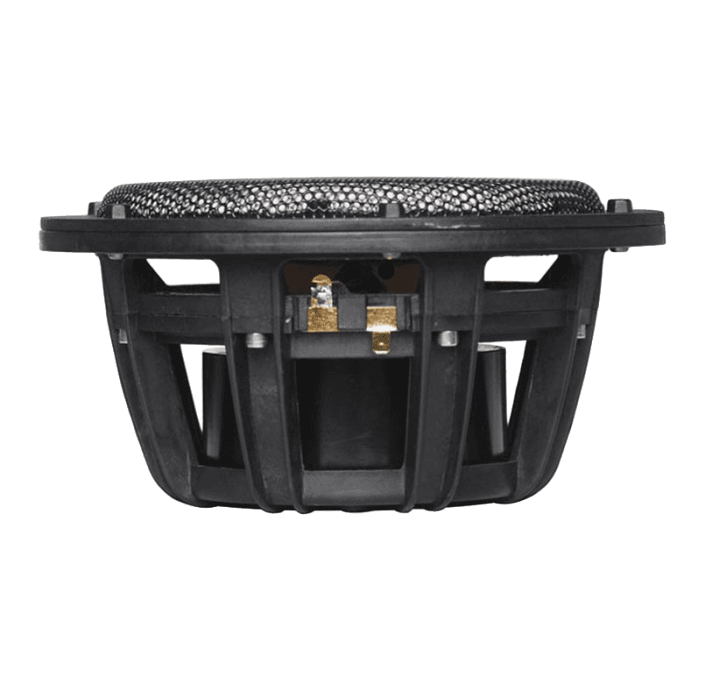

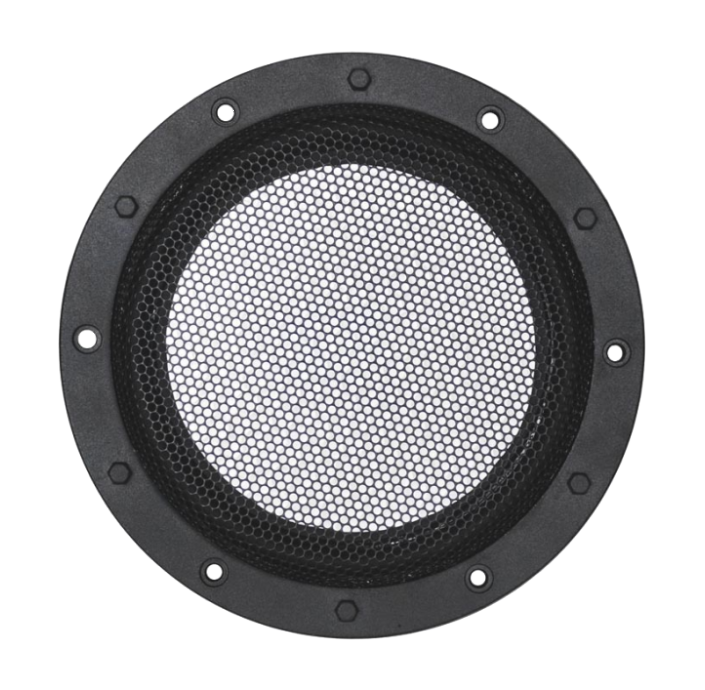

Tang Band W6-1914S
Tang Band W6-1914S is a 6" 8 ohm LF driver rated at 45W RMS. The validated T/S data includes Fs 65Hz, Qts 0.44, Vas 6.8L, Xmax 0.5mm, sensitivity 88dB, plus 7cm³ Vd and 138 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
45W
Sensitivity
88.0dB
89.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
138
Vented alignment
Vd
7cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence2,080 selected pixels of 2,080
T/S Parameters
Valid
Fs65Hz
Qts0.44
Qes0.47
Qms7.9
Vas6.8L
Re6.5Ω
Le0.08mH
BL11.6Tm
Sd140cm²
Mms23g
Xmax0.5mm
SPL88dB
Power45W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
