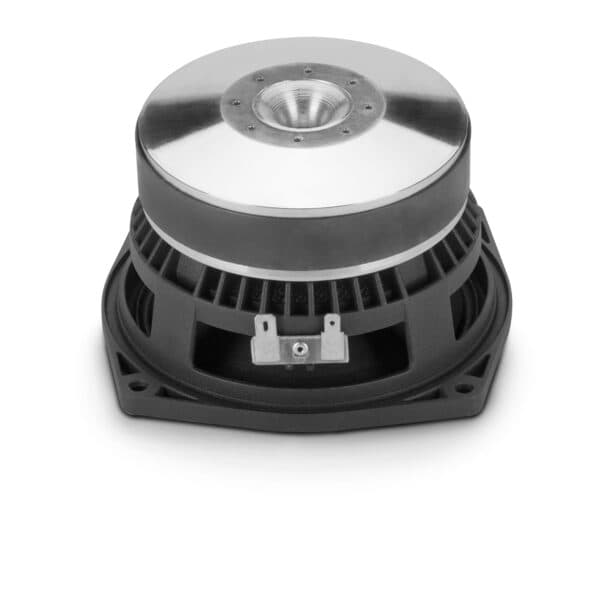

5-inch LF driver · 38 mm voice coil · 130 W

BMS 5S117 16Ω

Name: BMS 5S117 16 Ohm
Brand: BMS
SKU: 5S117

16 Ω · 80–4000 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 95Hz
Xmax: 5mm
SPL: 90dB
Pe: 130W
BL: 11.3T·m
Vd: 43cm³
Qts: 0.42
Vas: 3L

See all 25 specs

Specifications

Published by BMS

Manufacturer page

Datasheet PDF

BMS 5S117 is a 5-inch 16 ohm LF driver rated at 130 W RMS. The validated T/S data includes Fs 95 Hz, Qts 0.42, Vas 3.3 L, Xmax 5 mm, sensitivity 89.6 dB, plus 43 cm³ Vd and 194 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 95Hz
Qts: 0.42
Qes: 0.49
Qms: 3.3
Vas: 3.3L
Re: 11.4Ω
Le: 0.58mH

Motor and cone

BL: 11.3T·m
Sd: 85cm²
Mms: 9g
Xmax: 5mm
Vd †: 43cm³
Voice coil: 38mm

Power and response

Sensitivity †: 89.6dB
Manufacturer sensitivity: 91dB
Power: 130W
Impedance: 16Ω
Range: 80–4000Hz
EBP †: 194 · Leans vented

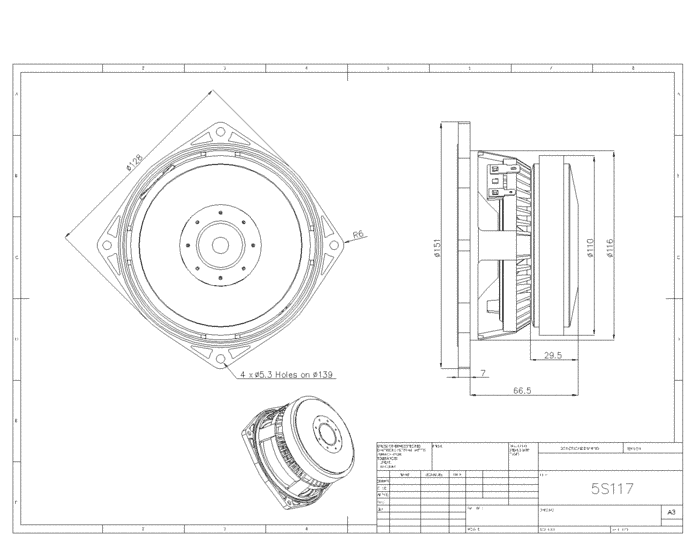

Size and mounting

Diameter: 128mm
Cutout: 117mm
Bolt circle: 139mm
Depth: 75mm
Weight: 1.6kg

Other published values

Cms: 0.31mm/N

Sensitivity shows 89.6 dB, calculated from the T/S values. BMS publishes 91.0 dB, 1.4 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else BMS lists

LF

BL: 11.3T·m
Fs: 95Hz
Le: 0.58mH
Re: 11.4Ω
Sd: 85cm²
Cms: 0.31mm/N
Mms: 9g
Qes: 0.49
Qms: 3.3
Qts: 0.42
SPL: 89.6dB
Vas: 3.3L
Xmax: 5mm
Power: 130W
Impedance: 16Ω
Sensitivity: 91dB
Low limit: 80Hz
Calculated sensitivity †: 89.6dB
High limit: 4000Hz
Manufacturer sensitivity: 91dB
Voice coil: 38mm
10. basket: Cast Aluminum
20. bl factor: BL 11.3 Tesla m
1. application: Low-middle
18. moving mass: Mms 0.0089 kg
13. dc resistance: Re 11.4 Ohm
9. magnet gap depth: 5 mm
17. equivalent volume: Vas 3.25 L
2. nominal impendance: 16 Ohm
5. frequency response: 80 – 4000 Hz
6. voice coil diameter: 38 (1.5″) mm
7. voice coil material: Cu
12. resonance frequency: Fs 95 Hz
14. mechanical q factor: Qms 3.3
15. electrical q factor: Qes 0.49
16. total quality factor: Qts 0.42
19. mechanical complience: Cms 0.31 mm / N
21. effective piston area: Sd 0.0085 m²
22. max. linear excursion: Xmax +/- 5 mm
23. voice coil inductance: Le1k 0.58 mH
4. sensitivity (1 w / 1 m): 91 dB
3. power handling aes noise: 130 W
8. voice coil winding depth: 15 mm
11. effect. diaphragm diameter d: 105 mm
