Overview
LF DriverFE series
FaitalPRO

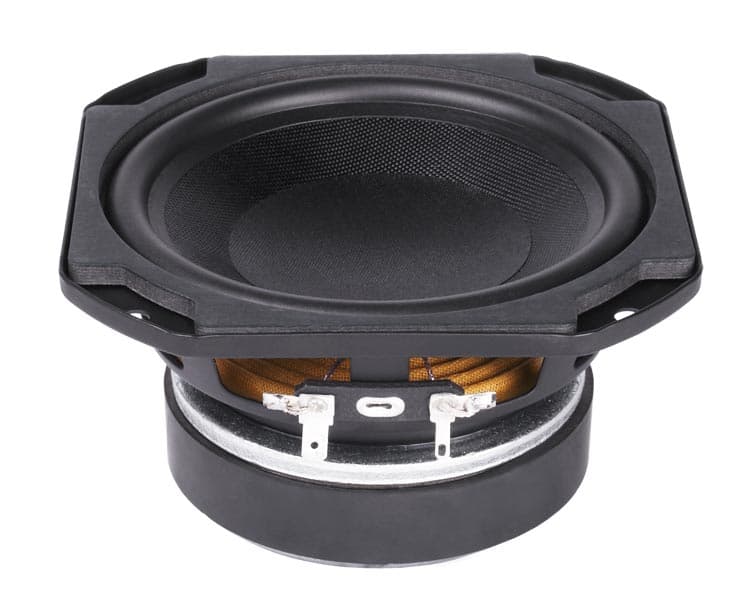

FaitalPRO 5FE100
FaitalPRO 5FE100 is a 5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 65Hz, Qts 0.45, Vas 5.7L, Xmax 5.3mm, sensitivity 87.2dB, plus 44cm³ Vd and 135 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £21.52.
Size
5"
Impedance
8Ω
RMS Power
80W
Sensitivity
87.2dB
EBP
135
Vented alignment
Vd
44cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees204 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
204 plotted pointsMedium confidence563 selected pixels of 789 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence673 selected pixels of 979 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,153 selected pixels of 1,153
T/S Parameters
Valid
Fs65Hz
Qts0.45
Qes0.48
Qms8.2
Vas5.7L
Re5.4Ω
Le0.53mH
BL6.9Tm
Sd84cm²
Mms11g
Xmax5.3mm
SPL87dB
Power80W
Impedance8Ω
F Low63Hz
F High6300Hz
Pricing & availability
Price definitionsPrice movement
Other offers
4 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£21.52
inc VAT
Back order
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£21.94
inc VAT
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£30.03
inc VAT
Out of stock
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£39.02
inc VAT
13 in stock
Best current price
Updated 11 Sept 2026
bluearan
£21.52
Avg £27.49£5.97 below avg (-21.7%)
inc VAT·10+ in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.1kg
Diameter144.8mm
Overall Depth71.5mm
Cutout Diameter114.0mm
Bolt Circle Diameter133.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
FaitalPRO
5FE100
5"
Best current price
£21.52
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
43%
Similarity
45% cheaper£11.82
Dayton Audio
TCP115-8
4"
Lower price
Xmax4mm-24%
Qts0.43-4%
BL7.4Tm+7%
Vas2.5L-56%
Qes0.54+13%
23%
Similarity
45% cheaper£11.82
Dayton Audio
TCP115-4
4"
Lower price
Xmax4mm-24%
Qts0.35-22%
BL5.2Tm-25%
Vas3.1L-46%
Qes0.4-17%
48%
Similarity
36% cheaper£13.87
Peerless
SDS-P830855
4"
Lower price
Xmax5mm-5%
Qts0.48+7%
BL5.2Tm-24%
Vas3.3L-43%
Qes0.54+12%
45%
Similarity
7% cheaper£19.96
Dayton Audio
DS115-8
4"
Lower price
Xmax4.1mm-22%
Qts0.38-16%
BL5.9Tm-15%
Vas4.3L-24%
Qes0.46-4%
100%
Similarity
2% more£21.90
FaitalPRO
5FE105
5"
Higher price
Xmax5.3mm0%
Qts0.450%
BL6.9Tm0%
Vas5.7L0%
Qes0.480%
53%
Similarity
13% more£24.39
Dayton Audio
SIG120-4
4.75"
Higher price
Xmax4mm-24%
Qts0.43-4%
BL5Tm-28%
Vas3.1L-46%
Qes0.47-2%
91%
Similarity
14% more£24.49
FaitalPRO
5FE120
5"
Higher price
Xmax5.3mm0%
Qts0.48+7%
BL6.9Tm0%
Vas5.4L-5%
Qes0.51+6%
74%
Similarity
37% more£29.57
Dayton Audio
DS135-8
5"
Higher price
Xmax4.8mm-8%
Qts0.39-13%
BL6.2Tm-10%
Vas7.3L+28%
Qes0.480%
69%
Similarity
37% more£29.57
Dayton Audio
DSA135-8
5"
Higher price
Xmax4.9mm-7%
Qts0.38-16%
BL6.2Tm-10%
Vas7.9L+39%
Qes0.47-2%
33%
Similarity
48% more£31.79
Dayton Audio
SIG150-4
6"
Higher price
Xmax4mm-24%
Qts0.49+9%
BL5.2Tm-25%
Vas8.7L+53%
Qes0.53+10%
60%
Similarity
72% more£36.97
Dayton Audio
RS125P-8
5"
Higher price
Xmax4mm-24%
Qts0.44-2%
BL5.1Tm-26%
Vas4L-30%
Qes0.53+10%
52%
Similarity
72% more£36.97
Dayton Audio
RS125-8
5"
Higher price
Xmax4mm-24%
Qts0.34-24%
BL5.7Tm-18%
Vas4.8L-16%
Qes0.42-12%
