Overview
LF DriverHDS series
Peerless

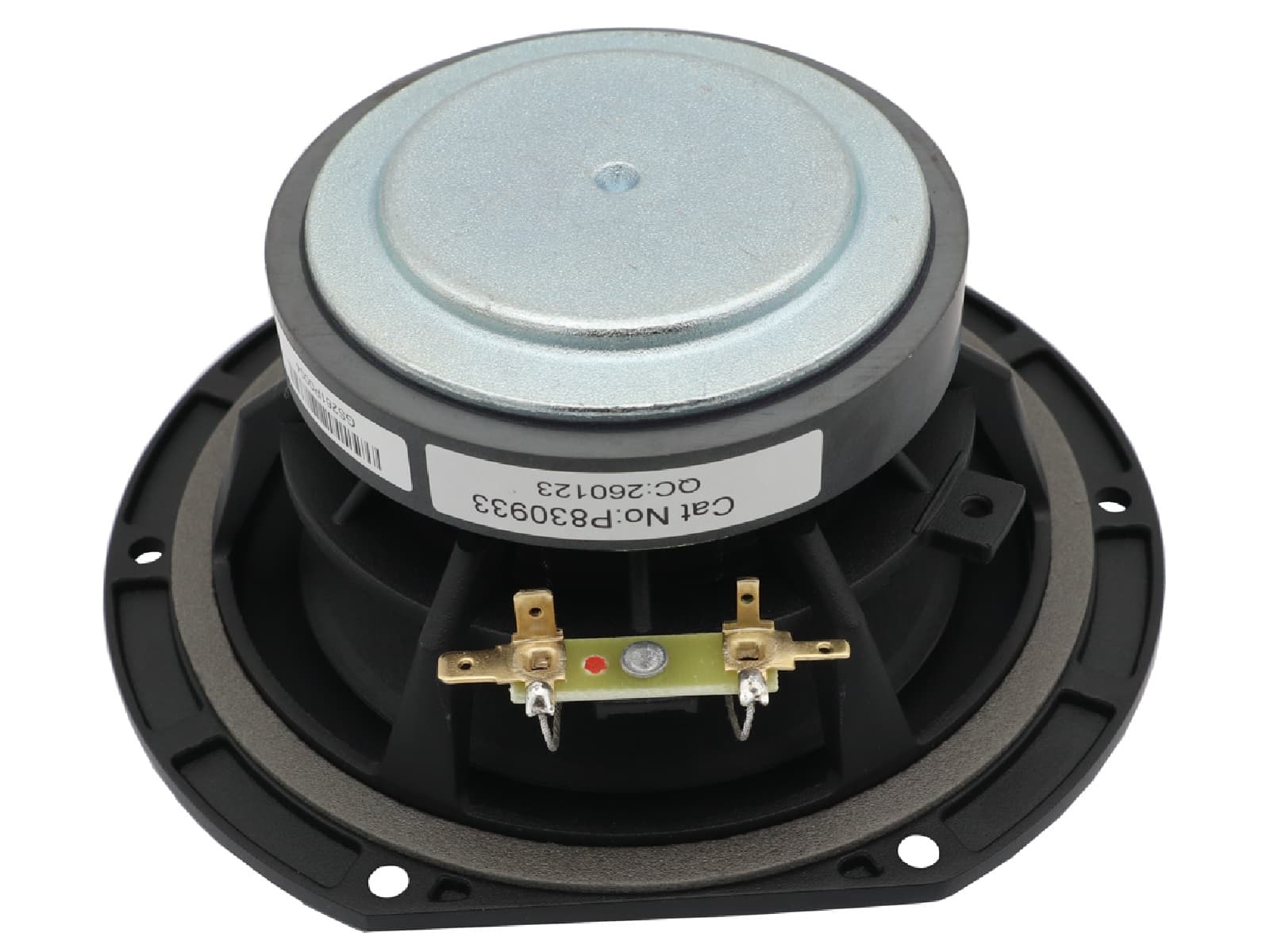

Peerless HDS-P830933
Peerless HDS-P830933 is a 5.25" 8 ohm LF driver rated at 40W RMS. The validated T/S data includes Fs 65Hz, Qts 0.40, Vas 7.2L, Xmax 5.5mm, sensitivity 88.6dB, plus 48cm³ Vd and 150 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
5.25"
Impedance
8Ω
RMS Power
40W
Sensitivity
88.6dB
EBP
150
Vented alignment
Vd
48cm³
T/S Parameters
Valid
Fs65Hz
Qts0.40
Qes0.43
Qms4.6
Vas7.2L
Re6.0Ω
Le0.40mH
BL7.2Tm
Sd88cm²
Mms9g
Xmax5.5mm
SPL89dB
Power40W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.1kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Peerless
HDS-P830933
5.25"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
83%
Similarity
£126.11
Beyma
5CX200FE
5"
Xmax5.7mm+4%
Qts0.41+2%
BL7.4Tm+2%
Vas5.3L-27%
Qes0.43-1%
77%
Similarity
£29.57
Dayton Audio
DS135-8
5"
Xmax4.8mm-11%
Qts0.39-3%
BL6.2Tm-14%
Vas7.3L+1%
Qes0.48+11%
74%
Similarity
£29.57
Dayton Audio
DSA135-8
5"
Xmax4.9mm-10%
Qts0.38-5%
BL6.2Tm-14%
Vas7.9L+10%
Qes0.47+8%
74%
Similarity
CIARE
HW131
5"
Xmax4.4mm-19%
Qts0.39-3%
BL7Tm-3%
Vas5.6L-23%
Qes0.46+6%
73%
Similarity
£21.52
FaitalPRO
5FE100
5"
Xmax5.3mm-4%
Qts0.45+12%
BL6.9Tm-4%
Vas5.7L-21%
Qes0.48+11%
73%
Similarity
£21.90
FaitalPRO
5FE105
5"
Xmax5.3mm-4%
Qts0.45+12%
BL6.9Tm-4%
Vas5.7L-21%
Qes0.48+11%
Image unavailable
71%
Similarity
Wavecor
WF152BD11
6"
Xmax4.5mm-18%
Qts0.40%
BL7.2Tm0%
Vas8.6L+19%
Qes0.42-3%
69%
Similarity
£112.82
FaitalPRO
5HX140
5"
Xmax5.1mm-7%
Qts0.41+2%
BL8Tm+11%
Vas3.4L-53%
Qes0.45+4%
64%
Similarity
£24.49
FaitalPRO
5FE120
5"
Xmax5.3mm-4%
Qts0.48+20%
BL6.9Tm-4%
Vas5.4L-25%
Qes0.51+18%
64%
Similarity
£43.27
FaitalPRO
5FE125
5"
Xmax5.3mm-4%
Qts0.48+20%
BL6.9Tm-4%
Vas5.4L-25%
Qes0.51+18%
63%
Similarity
£47.39
Peerless
SLS-P830945
5"
Xmax7mm+28%
Qts0.40%
BL6.2Tm-14%
Vas4.7L-35%
Qes0.44+2%
Image unavailable
62%
Similarity
Wavecor
WF152BD12
6"
Xmax4.5mm-18%
Qts0.38-5%
BL7.2Tm0%
Vas9.6L+33%
Qes0.4-8%
