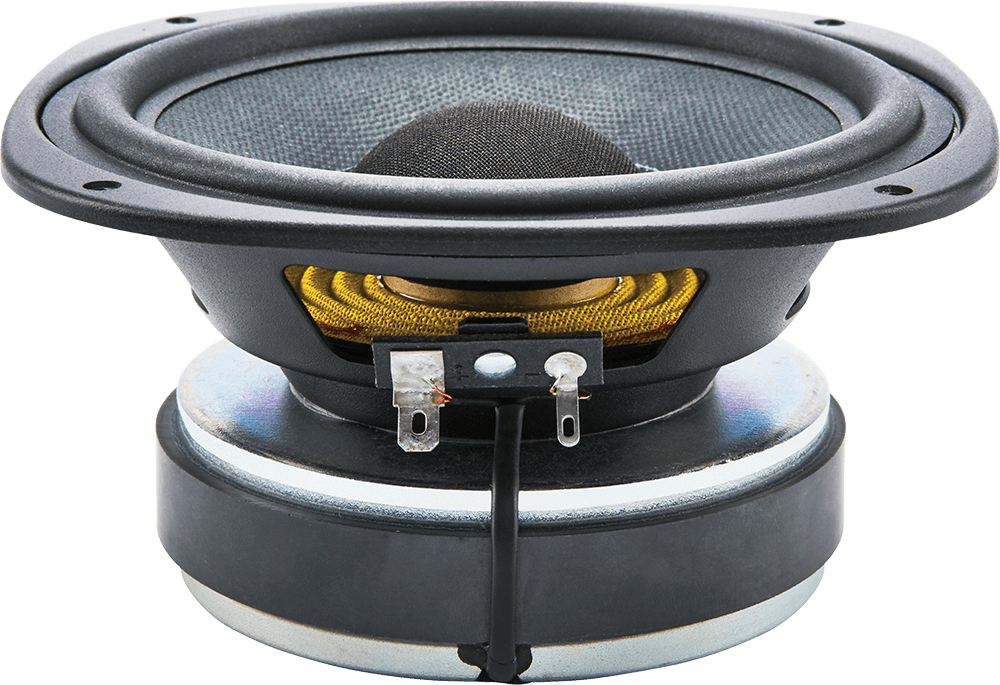

5-inch LF driver · TFX0512 series · 19 mm voice coil · 8 W

Celestion TFX0512 8Ω

Name: Celestion TFX0512 8 Ohm
Brand: Celestion
SKU: TFX0512

8 Ω · 2000–20000 Hz

No price for delivery to the UK

All 1 offer

Open in 00 Simulator

Fs: 69Hz
Xmax: 3.3mm
SPL: 88dB
Pe: 8W
BL: 6.4T·m
Vd: 26cm³
Qts: 0.46
Vas: 5L

See all 27 specs

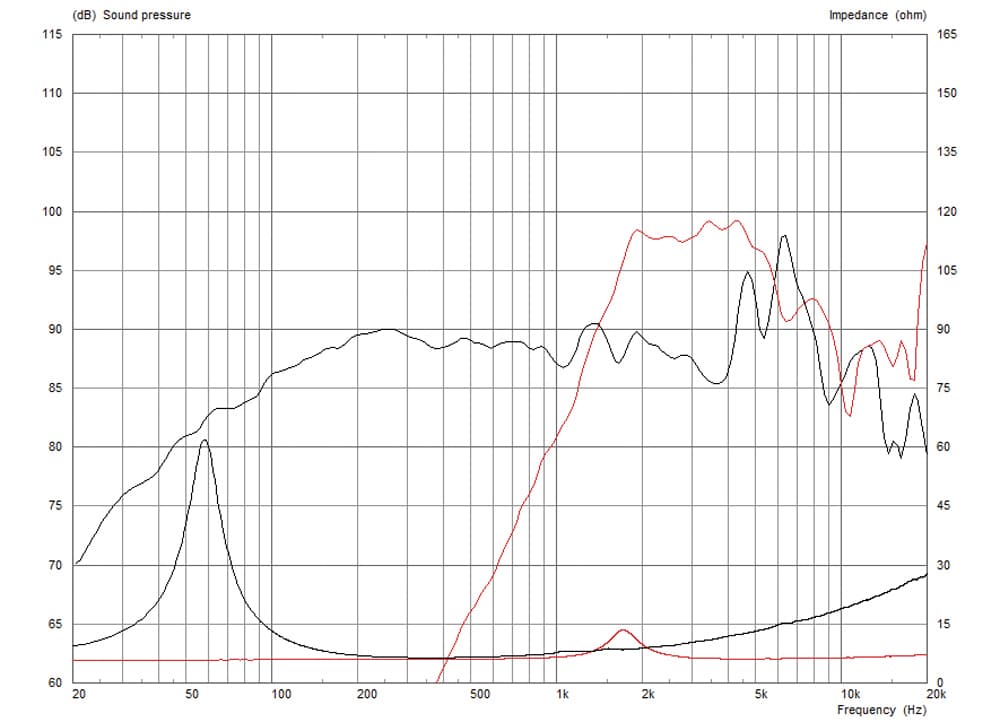

Published graphs

Specifications

Published by Celestion

Manufacturer page

Datasheet PDF

Celestion TFX0512 is a 5-inch 8 ohm LF driver rated at 8 W RMS. The validated T/S data includes Fs 69 Hz, Qts 0.46, Vas 5.4 L, Xmax 3.3 mm, sensitivity 87.6 dB, plus 26 cm³ Vd and 140 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 69Hz
Qts: 0.46
Qes: 0.49
Qms: 6.2
Vas: 5.4L
Re: 5.5Ω
Le: 0.37mH

Motor and cone

BL: 6.4T·m
Sd: 79cm²
Mms: 9g
Xmax: 3.3mm
Vd †: 26cm³
Voice coil: 19mm

Power and response

Sensitivity †: 87.6dB
Manufacturer sensitivity: 97dB
Power: 8W
Impedance: 8Ω
Range: 2000–20000Hz
EBP †: 140 · Leans vented

Size and mounting

Diameter: 151mm
Cutout: 116mm
Bolt circle: 140mm
Depth: 72mm
Weight: 2kg

Other published values

Cms: 0.62mm/N
Rms: 0.60kg/s
Power Program: 16

Sensitivity shows 87.6 dB, calculated from the T/S values. Celestion publishes 97.0 dB, 9.4 dB apart.

Excursion and motor values come from the LF section; the frequency range spans every section.

† Calculated by bits from the published values

What this validation status means

Components and manufacturer details

LF · Primary · 5″

BL: 6.4T·m
Fs: 69Hz
Le: 0.37mH
Re: 5.5Ω
Sd: 79cm²
Cms: 0.62mm/N
Mms: 9g
Qes: 0.49
Qms: 6.2
Qts: 0.46
Rms: 0.60kg/s
SPL: 87.6dB
Vas: 5.4L
Xmax: 3.3mm
Power: 8W
Impedance: 8Ω
Sensitivity: 97dB
Low limit: 2000Hz
Power Program: 16
Calculated sensitivity †: 87.6dB
High limit: 20000Hz
Manufacturer sensitivity: 97dB
Voice coil: 19mm
Weight: 2kg
Diameter: 151mm
Depth: 72mm
Cutout: 116mm
Bolt circle: 140mm
