4-inch LF driver · FE series · 40 W

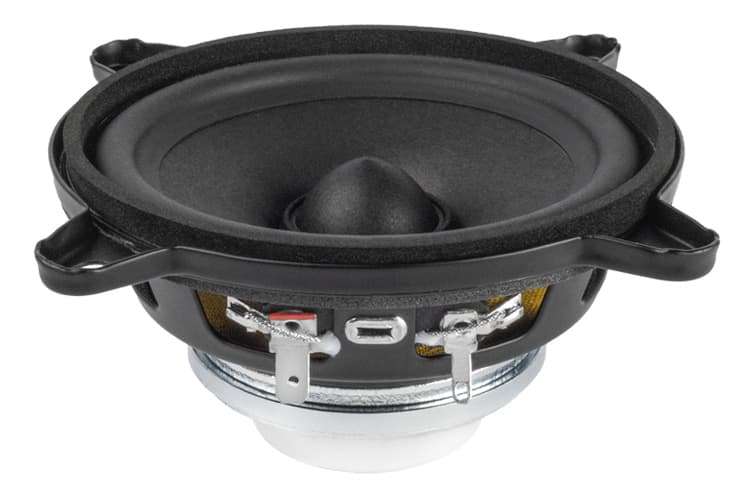

FaitalPRO 4FE42 8Ω
100–20000 Hz
£28.64
SteadyBlue Aran · 17 in stock · All 5 offers
- Fs
- 110Hz
- Xmax
- 2.8mm
- SPL
- 89dB
- Pe
- 40W
- BL
- 6T·m
- Vd
- 14cm³
- Qts
- 0.47
- Vas
- 2L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
122 plotted pointsMedium confidence298 selected pixels of 787 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence971 selected pixels of 971 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,287 selected pixels of 1,287
FaitalPRO 4FE42 is a 4-inch 8 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 110 Hz, Qts 0.47, Vas 1.9 L, Xmax 2.8 mm, sensitivity 89.1 dB, plus 14 cm³ Vd and 220 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £28.64.
The published T/S values agree with each other
Thiele/Small
- Fs
- 110Hz
- Qts
- 0.47
- Qes
- 0.50
- Qms
- 8
- Vas
- 1.9L
- Re
- 5.4Ω
- Le
- 0.07mH
Motor and cone
- BL
- 6T·m
- Sd
- 51cm²
- Mms
- 4g
- Xmax
- 2.8mm
- Vd †
- 14cm³
Power and response
- Sensitivity †
- 89.1dB
- Manufacturer sensitivity
- 94dB
- Power
- 40W
- Impedance
- 8Ω
- Range
- 100–20000Hz
- EBP †
- 220 · Leans vented
Size and mounting
- Diameter
- 129.8mm
- Cutout
- 91.5mm
- Bolt circle
- 115.3mm
- Depth
- 54.1mm
Other published values
- Cms
- 0.52mm/N
- Rms
- 0.30kg/s
- Power Program
- 80
Sensitivity shows 89.1 dB, calculated from the T/S values. FaitalPRO publishes 94.0 dB, 4.9 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 4″
- BL
- 6T·m
- Fs
- 110Hz
- Le
- 0.07mH
- Re
- 5.4Ω
- Sd
- 51cm²
- Cms
- 0.52mm/N
- Mms
- 4g
- Qes
- 0.50
- Qms
- 8
- Qts
- 0.47
- Rms
- 0.30kg/s
- SPL
- 89.1dB
- Vas
- 1.9L
- Xmax
- 2.8mm
- Power
- 40W
- Impedance
- 8Ω
- Sensitivity
- 94dB
- Low limit
- 100Hz
- Power Program
- 80
- Calculated sensitivity †
- 89.1dB
- High limit
- 20000Hz
- Manufacturer sensitivity
- 94dB
- Diameter
- 129.8mm
- Depth
- 54.1mm
- Cutout
- 91.5mm
- Bolt circle
- 115.3mm
