Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespTang Band W3-2108 4Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Tang Band

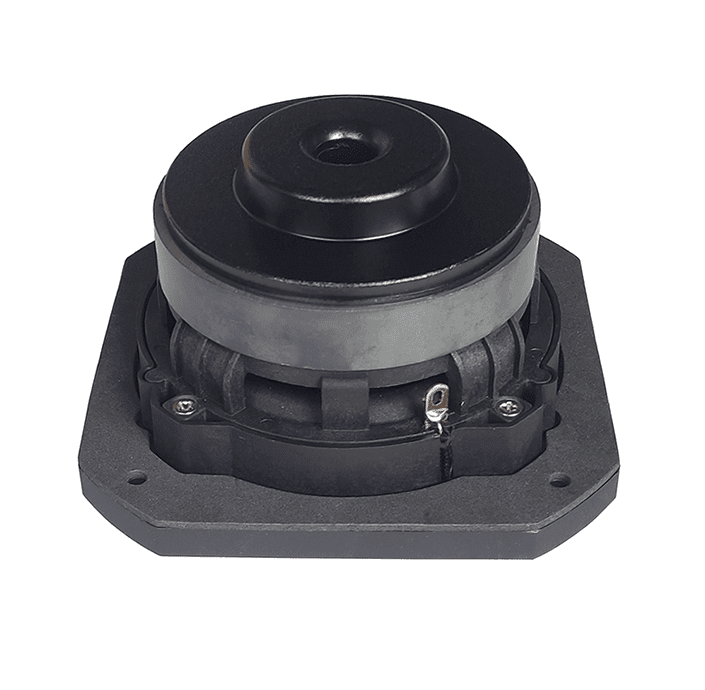

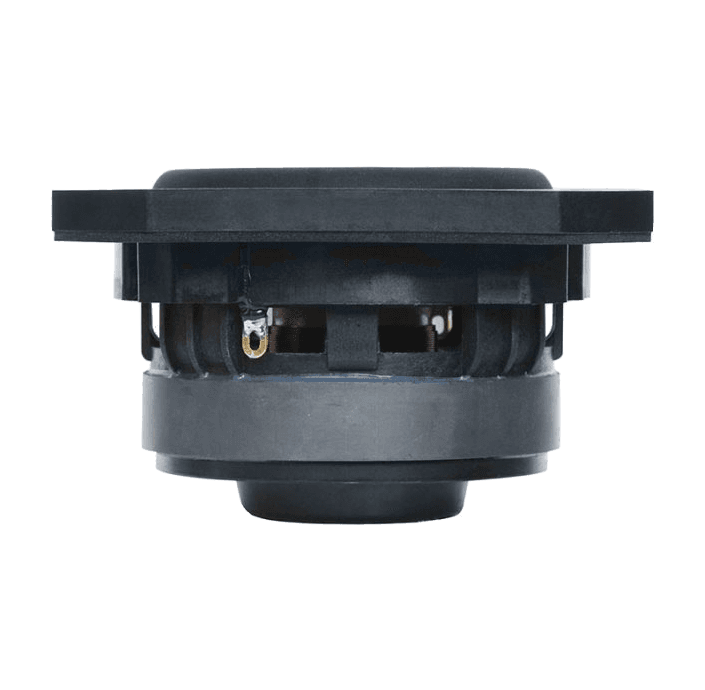

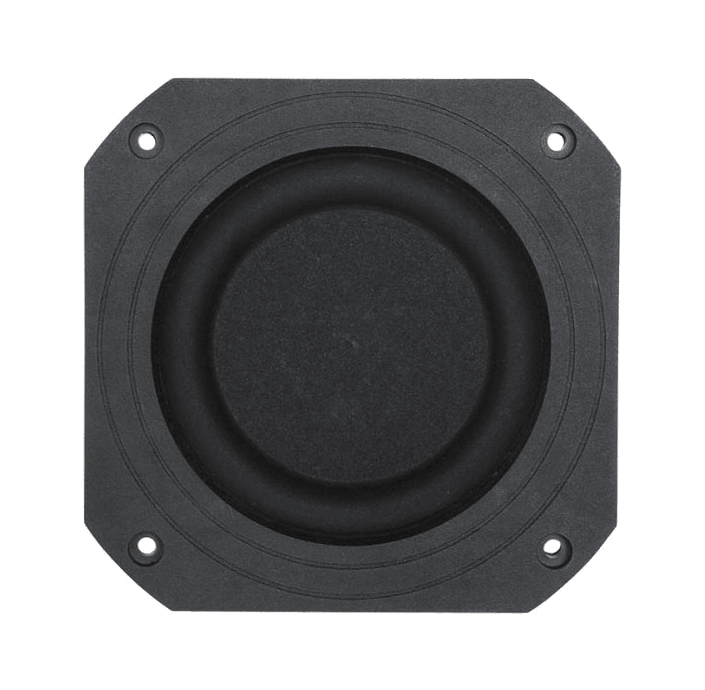

Tang Band W3-2108
Tang Band W3-2108 is a 3" 4 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 45Hz, Qts 0.46, Vas 1.7L, Xmax 7mm, sensitivity 76.9dB, plus 31cm³ Vd and 88 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
3"
Impedance
4Ω
RMS Power
25W
Sensitivity
76.9dB
EBP
88
Either alignment
Vd
31cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,260 selected pixels of 3,027 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,472 selected pixels of 2,472
T/S Parameters
Valid
Fs45Hz
Qts0.46
Qes0.51
Qms4.7
Vas1.7L
Re3.6Ω
Le0.21mH
BL6.2Tm
Sd44cm²
Mms18g
Xmax7.0mm
SPL77dB
Power25W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
