Overview
LF Driver
Sica

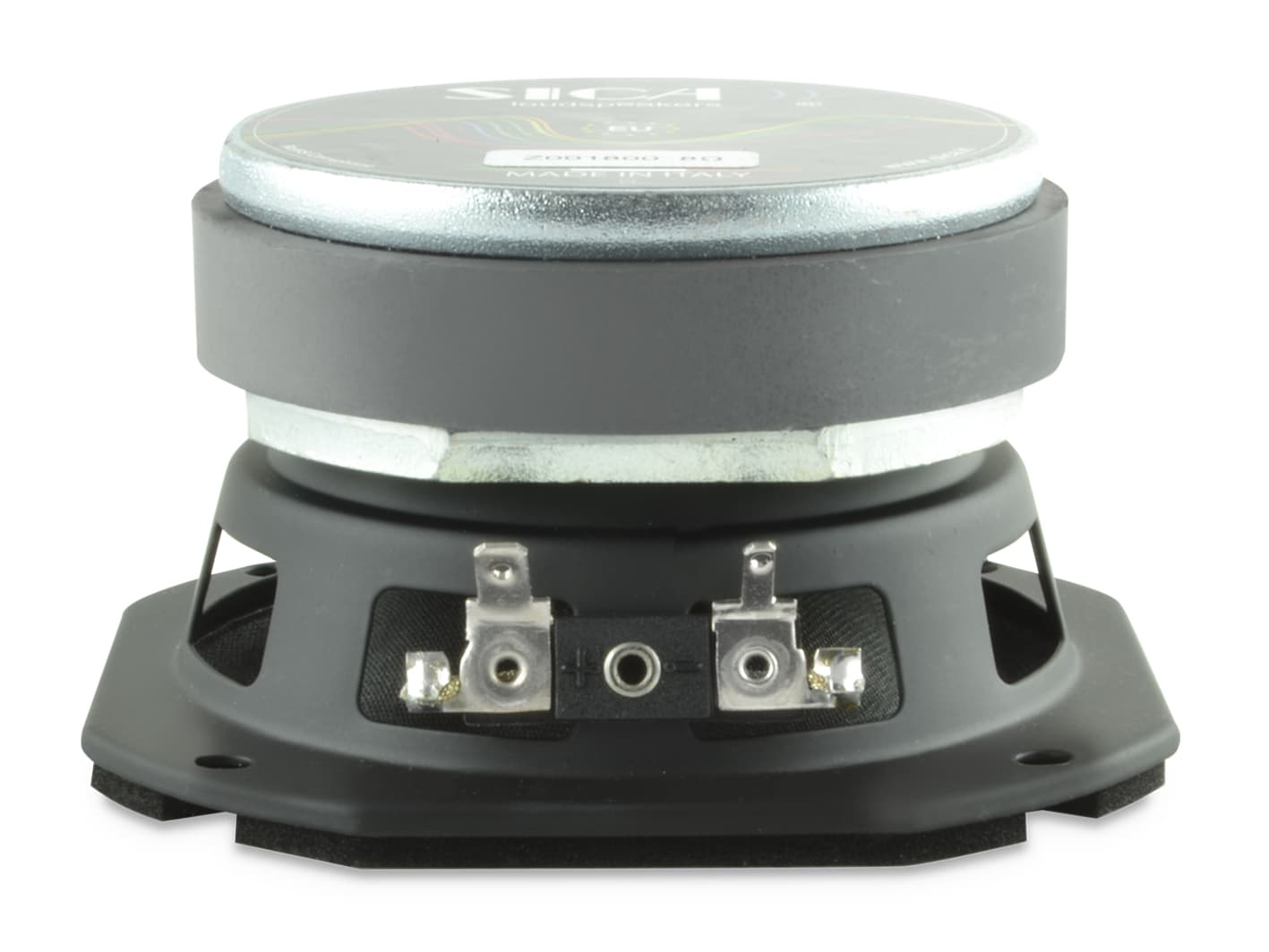

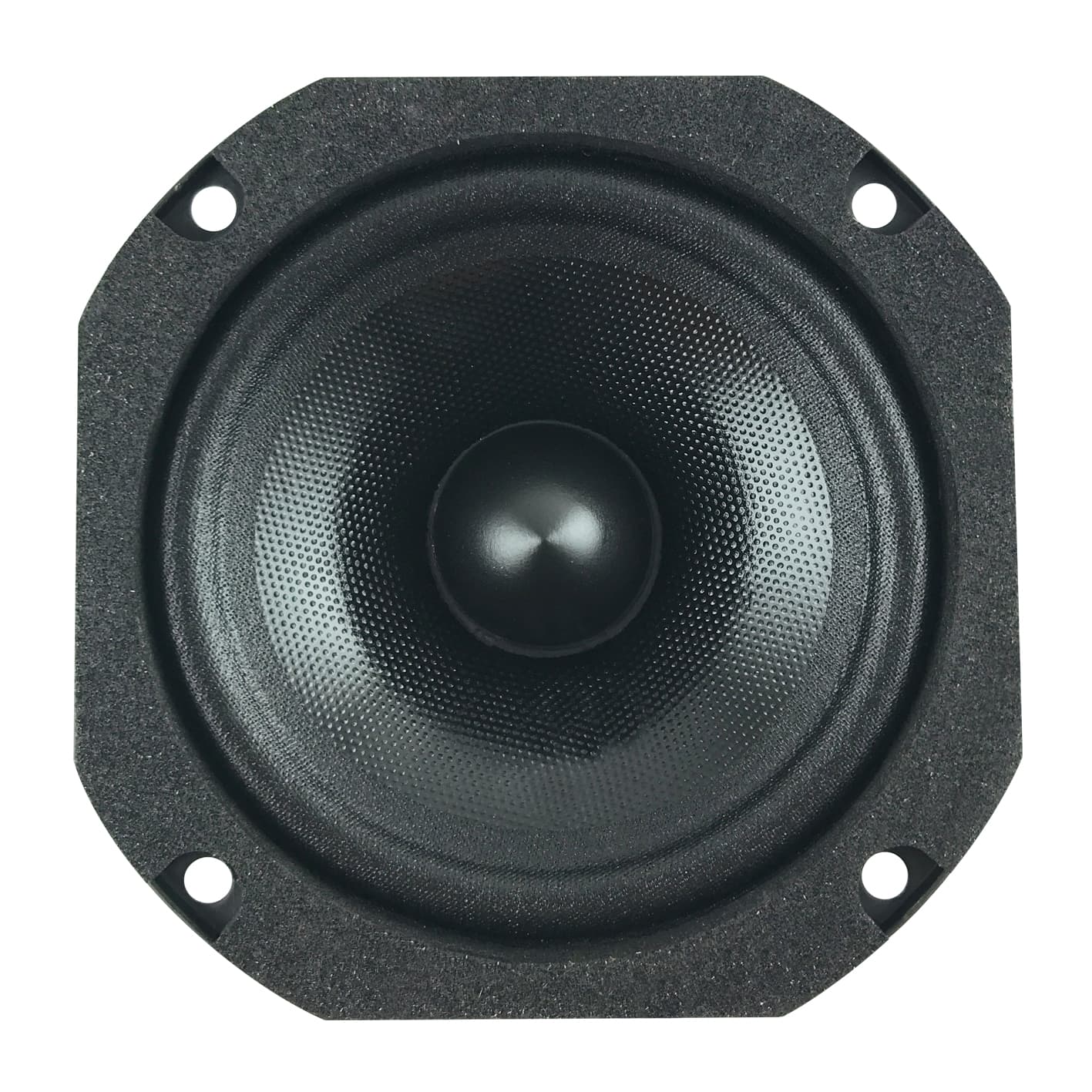

Sica 4 E 1 CS
Sica 4 E 1 CS is a 4" 8 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 118Hz, Qts 0.39, Vas 1.3L, Xmax 2.2mm, sensitivity 88.4dB, plus 10cm³ Vd and 241 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
8Ω
RMS Power
70W
Sensitivity
88.4dB
90.2dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
241
Vented alignment
Vd
10cm³
T/S Parameters
Valid
Fs118Hz
Qts0.39
Qes0.49
Qms1.9
Vas1.3L
Re5.6Ω
Le0.14mH
BL5.8Tm
Sd44cm²
Mms4g
Xmax2.2mm
SPL88dB
Power70W
Impedance8Ω
Voice Coil25mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.0kg
Diameter104.0mm
Overall Depth58.3mm
Cutout Diameter90.0mm
Bolt Circle Diameter106.0mm
