4-inch LF driver · CX series · 25 mm voice coil · 40 W

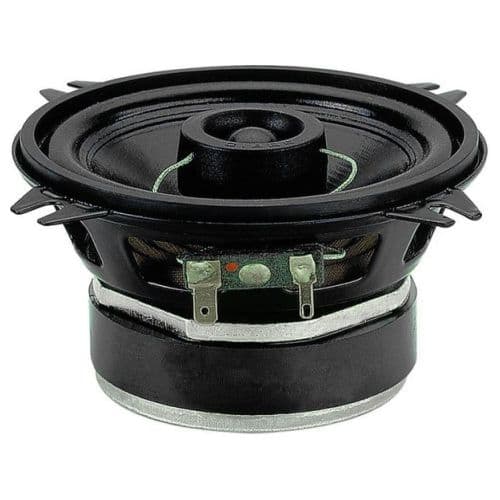

CIARE CX102 4Ω
4 Ω
No price for delivery to the UK
- Fs
- 125Hz
- Xmax
- 1.9mm
- SPL
- 90dB
- Pe
- 40W
- BL
- 4.3T·m
- Vd
- 10cm³
- Qts
- 0.43
- Vas
- 2L
CIARE CX102 is a 4-inch 4 ohm LF driver rated at 40 W RMS. The validated T/S data includes Fs 125 Hz, Qts 0.43, Vas 1.5 L, Xmax 1.9 mm, sensitivity 89.6 dB, plus 10 cm³ Vd and 245 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 125Hz
- Qts
- 0.43
- Qes
- 0.51
- Qms
- 3.0
- Vas
- 1.5L
- Re
- 3.1Ω
Motor and cone
- BL
- 4.3T·m
- Sd
- 50cm²
- Mms
- 4g
- Xmax
- 1.9mm
- Vd †
- 10cm³
- Voice coil
- 25mm
Power and response
- Sensitivity †
- 89.6dB
- Manufacturer sensitivity
- 89dB
- Power
- 40W
- Nominal power
- 40W
- Impedance
- 4Ω
- EBP †
- 245 · Leans vented
Size and mounting
- Diameter
- 100.5mm
- Cutout
- 91mm
- Bolt circle
- 116mm
- Depth
- 54mm
- Weight
- 0.7kg
Other published values
- Cms
- 0.42mm/N
- Power Program
- 100
Excursion and motor values come from the LF section; the frequency range spans every section.
† Calculated by bits from the published values
What this validation status means
Components and manufacturer details
LF · Primary · 4″
- BL
- 4.3T·m
- Fs
- 125Hz
- Re
- 3.1Ω
- Sd
- 50cm²
- Cms
- 0.42mm/N
- Mms
- 4g
- Qes
- 0.51
- Qms
- 3.0
- Qts
- 0.43
- SPL
- 89.6dB
- Vas
- 1.5L
- Xmax
- 1.9mm
- Power
- 40W
- Impedance
- 4Ω
- Sensitivity
- 89dB
- Nominal power
- 40W
- Power Program
- 100
- Calculated sensitivity †
- 89.6dB
- Manufacturer sensitivity
- 89dB
- Voice coil
- 25mm
- Weight
- 0.7kg
- Diameter
- 100.5mm
- Depth
- 54mm
- Cutout
- 91mm
- Bolt circle
- 116mm
