4.5-inch LF driver · MR120BD series

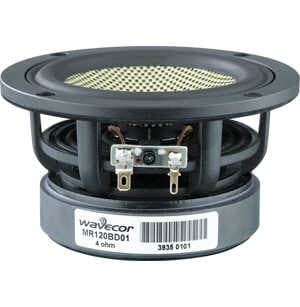

Wavecor MR120BD01 4Ω
4 Ω
No current price
- Fs
- 72Hz
- Xmax
- 1.5mm
- SPL
- 86dB
- Pe
- –
- BL
- 4.2T·m
- Vd
- 8cm³
- Qts
- 0.45
- Vas
- 3L
Wavecor MR120BD01 is a 4.5-inch 4 ohm LF driver. The validated T/S data includes Fs 72 Hz, Qts 0.45, Vas 3.1 L, Xmax 1.5 mm, sensitivity 85.9 dB, plus 8 cm³ Vd and 153 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 72Hz
- Qts
- 0.45
- Qes
- 0.47
- Qms
- 8.5
- Vas
- 3.1L
- Re
- 3.2Ω
Motor and cone
- BL
- 4.2T·m
- Sd
- 50cm²
- Mms
- 6g
- Xmax
- 1.5mm
- Vd †
- 8cm³
Power and response
- Sensitivity †
- 85.9dB
- Impedance
- 4Ω
- Low limit
- 200000Hz
- High limit
- 4000Hz
- EBP †
- 153 · Leans vented
Size and mounting
- Diameter
- 120.7mm
Other published values
- Cms
- 0.87mm/N
- Rms
- 0.30kg/s
† Calculated by bits from the published values
What this validation status means
Everything else Wavecor lists
LF · Primary · 4.5″
- BL
- 4.2T·m
- Fs
- 72Hz
- Re
- 3.2Ω
- Sd
- 50cm²
- Cms
- 0.87mm/N
- Mms
- 6g
- Qes
- 0.47
- Qms
- 8.5
- Qts
- 0.45
- Rms
- 0.30kg/s
- SPL
- 85.9dB
- Vas
- 3.1L
- Xmax
- 1.5mm
- Impedance
- 4Ω
- Low limit
- 200000Hz
- Calculated sensitivity †
- 85.9dB
- High limit
- 4000Hz
- Diameter
- 120.7mm
02
Compare
Same-size drivers, compared with the MR120BD01. Clear differences are green when better and red when worse.
This driverMR120BD01
Best price
–
Fs
72 Hz
Qts
0.45
Vas
3.1 L
BL
4.2 T·m
Xmax
1.5 mm
Sensitivity
85.9 dB
Power
–
Dayton AudioSIG120-4
£24.67Fs75 Hz +4%
Qts0.43 −4%
Vas3.1 L –
BL5 T·m +19%, better
Xmax4 mm +167%, better
Sensitivity86.4 dB +0.5
Tang BandW4-1052SDF
£47.37Fs70 Hz –
Qts0.42 −7%
Vas5.2 L +68%, worse
BL4.1 T·m –
Xmax2.6 mm +73%, better
Sensitivity87.9 dB +2, better
VisatonB 100
£73.93Fs75 Hz +4%
Qts0.52 +16%, worse
Vas5.3 L +70%, worse
BL4.1 T·m –
Xmax1.6 mm +10%
Sensitivity88.2 dB +2.3, better
WavecorWF120BD05
£81.54Fs52 Hz −28%, better
Qts0.43 −4%
Vas5.3 L +71%, worse
BL4.1 T·m –
Xmax4 mm +167%, better
Sensitivity84.2 dB −1.7
WavecorWF118WA05
£82.89Fs65 Hz −10%
Qts0.46 –
Vas3.5 L +13%, worse
BL4.3 T·m –
Xmax3 mm +100%, better
Sensitivity85 dB −0.9
WavecorSW118WA01
£84.74Fs58 Hz −19%, better
Qts0.39 −13%, better
Vas3.3 L +6%
BL4.7 T·m +12%, better
Xmax4 mm +167%, better
Sensitivity84 dB −1.9
WavecorSW118WA02
£84.74Fs60 Hz −17%, better
Qts0.47 +4%
Vas3.3 L +6%
BL5.9 T·m +40%, better
Xmax4 mm +167%, better
Sensitivity83.6 dB −2.3, worse
WavecorWF120BD11
£87.52Fs58 Hz −19%, better
Qts0.39 −13%, better
Vas3.8 L +23%, worse
BL4.2 T·m –
Xmax3 mm +100%, better
Sensitivity84.7 dB −1.2
VisatonHX 10
£99.54Fs80 Hz +11%, worse
Qts0.50 +11%, worse
Vas5.1 L +65%, worse
BL3.9 T·m −7%
Xmax1.5 mm –
Sensitivity88.3 dB +2.4, better
WavecorWF120BD03
£120.66Fs70 Hz –
Qts0.42 −7%
Vas3.3 L +5%
BL4.5 T·m +7%
Xmax4 mm +167%, better
Sensitivity85.9 dB –
WavecorWF120BD14
£133.13Fs58 Hz −20%, better
Qts0.46 –
Vas3.9 L +26%, worse
BL5.3 T·m +26%, better
Xmax3 mm +100%, better
Sensitivity83.8 dB −2.1, worse
Tang BandW4-1879
£209.33Fs55 Hz −24%, better
Qts0.43 −4%
Vas9.1 L +194%, worse
BL4.2 T·m –
Xmax5 mm +233%, better
Sensitivity86.8 dB +0.9
WavecorMR120BD02
No current priceFs70 Hz –
Qts0.44 –
Vas3.2 L +3%
BL4.2 T·m –
Xmax1.5 mm –
Sensitivity85.8 dB –
CIARECM132
No current priceFs115 Hz +60%, worse
Qts0.43 −4%
Vas3.8 L +23%, worse
BL4.4 T·m +5%
Xmax1.6 mm +7%
Sensitivity92.2 dB +6.3, better
Tang BandW4-2099
No current priceFs60 Hz −17%, better
Qts0.47 +4%
Vas2.8 L −11%, better
BL3.7 T·m −12%, worse
Xmax3 mm +100%, better
Sensitivity82.5 dB −3.4, worse
CIARECM100
No current priceFs160 Hz +122%, worse
Qts0.43 −4%
Vas1.8 L −42%, better
BL4.1 T·m –
Xmax1.9 mm +27%, better
Sensitivity93.5 dB +7.6, better
Dayton AudioCFC120-4
No current priceFs57 Hz −21%, better
Qts0.45 –
Vas4.5 L +44%, worse
BL4.2 T·m –
Xmax2.5 mm +67%, better
Sensitivity83.9 dB −2, worse
CIARECX102
No current priceFs125 Hz +74%, worse
Qts0.43 −4%
Vas1.5 L −52%, better
BL4.3 T·m –
Xmax1.9 mm +27%, better
Sensitivity89.6 dB +3.7, better
Tang BandW4-1129E
No current priceFs120 Hz +67%, worse
Qts0.44 –
Vas1.7 L −45%, better
BL5.2 T·m +23%, better
Xmax1.8 mm +20%, better
Sensitivity90.1 dB +4.2, better
CIAREFXI3.21
No current priceFs90 Hz +25%, worse
Qts0.44 –
Vas1.8 L −42%, better
BL3.7 T·m −12%, worse
Xmax2 mm +33%, better
Sensitivity86.3 dB –
CIARENDI3.25
No current priceFs77 Hz +7%
Qts0.40 −11%, better
Vas1.7 L −45%, better
BL4.2 T·m –
Xmax3.9 mm +160%, better
Sensitivity84.1 dB −1.8

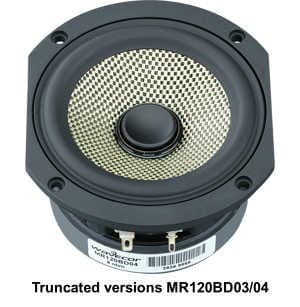

WavecorMR120BD04
No current priceFs72 Hz –
Qts0.55 +22%, worse
Vas3.2 L +3%
BL5.2 T·m +24%, better
Xmax1.5 mm –
Sensitivity85.1 dB −0.8
WavecorMR120BD03
No current priceFs73 Hz –
Qts0.56 +24%, worse
Vas3.1 L –
BL5.2 T·m +24%, better
Xmax1.5 mm –
Sensitivity85.1 dB −0.8
Dayton AudioDMA90-4
No current priceFs88 Hz +23%, worse
Qts0.45 –
Vas2.3 L −27%, better
BL3.5 T·m −17%, worse
Xmax2.5 mm +67%, better
Sensitivity86.5 dB +0.6
Tang BandW5-1611SDF
No current priceFs60 Hz −17%, better
Qts0.41 −9%
Vas15.2 L +390%, worse
BL4.3 T·m –
Xmax3 mm +100%, better
Sensitivity90.5 dB +4.6, better
WavecorWF120BD12
No current priceFs57 Hz −22%, better
Qts0.38 −16%, better
Vas3.9 L +26%, worse
BL4.2 T·m –
Xmax3 mm +100%, better
Sensitivity84.5 dB −1.4
BMS5S117
No current priceFs95 Hz +32%, worse
Qts0.42 −7%
Vas3.3 L +5%
BL11.3 T·m +169%, better
Xmax5 mm +233%, better
Sensitivity89.6 dB +3.7, better
WavecorWF120BD13
No current priceFs59 Hz −18%, better
Qts0.47 +4%
Vas3.8 L +23%, worse
BL5.3 T·m +26%, better
Xmax3 mm +100%, better
Sensitivity84 dB −1.9
Tang BandW4-2089
No current priceFs35 Hz −51%, better
Qts0.42 −7%
Vas3.4 L +9%
BL8.7 T·m +107%, better
Xmax8 mm +433%, better
Sensitivity77 dB −8.9, worse
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
