LF Driver
Tang Band

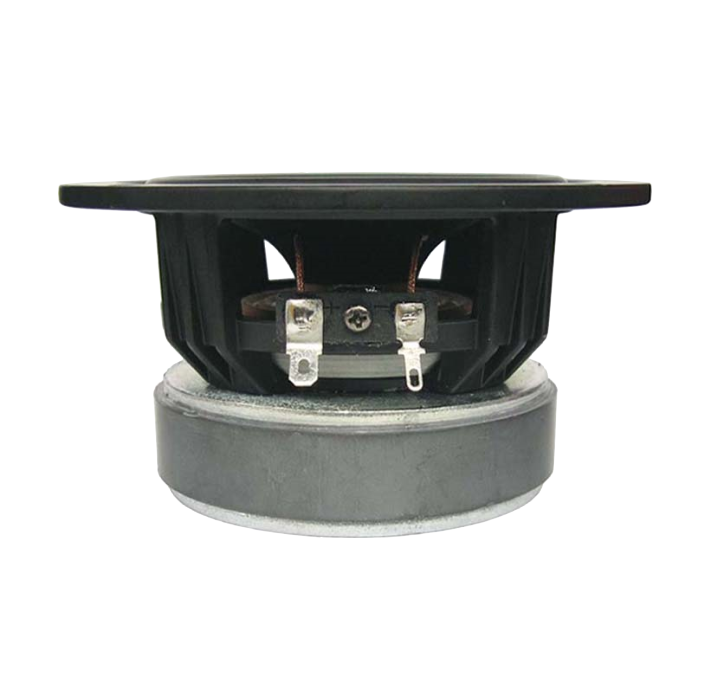

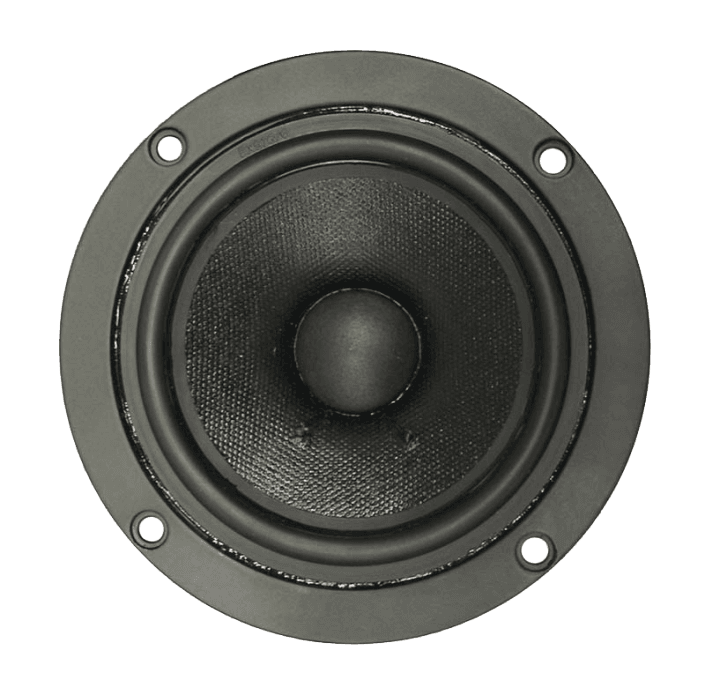

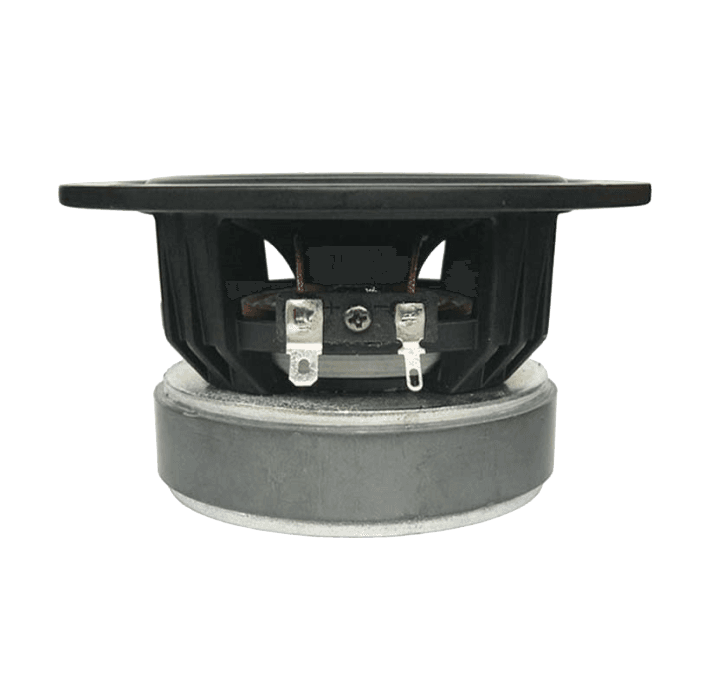

Tang Band W4-1129E
Tang Band W4-1129E is a 4" 4 ohm LF driver rated at 25W RMS. The validated T/S data includes Fs 120Hz, Qts 0.44, Vas 1.7L, Xmax 1.8mm, sensitivity 90.1dB, plus 10cm³ Vd and 261 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
4"
Impedance
4Ω
RMS Power
25W
Sensitivity
90.1dB
EBP
261
Vented alignment
Vd
10cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl221 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
221 plotted pointsMedium confidence494 selected pixels of 1,932
T/S Parameters
Valid
Fs120Hz
Qts0.44
Qes0.46
Qms9.4
Vas1.7L
Re3.5Ω
Le0.08mH
BL5.2Tm
Sd57cm²
Mms5g
Xmax1.8mm
SPL90dB
Power25W
Impedance4Ω
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W4-1129E
4"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity
£34.69
CIARE
CM100
4"
Xmax1.9mm+6%
Qts0.43-2%
BL4.1Tm-21%
Vas1.8L+5%
Qes0.52+13%
67%
Similarity
CIARE
FXI3.21
3.5"
Xmax2mm+11%
Qts0.440%
BL3.7Tm-28%
Vas1.8L+5%
Qes0.49+7%
64%
Similarity
Sica
4 E 1 CS
4"
Xmax2.2mm+22%
Qts0.39-11%
BL5.8Tm+11%
Vas1.3L-24%
Qes0.49+7%
62%
Similarity
CIARE
NDI3.21
3.5"
Xmax2mm+11%
Qts0.38-14%
BL4Tm-23%
Vas1.8L+5%
Qes0.44-4%
59%
Similarity
£18.26
FaitalPRO
3FE22
3"
Xmax1.8mm+2%
Qts0.47+7%
BL4.5Tm-13%
Vas1.3L-24%
Qes0.52+13%
57%
Similarity
Monacor
SPH-30X/8SW
3"
Xmax2mm+11%
Qts0.42-5%
BL4.5Tm-13%
Vas1.3L-24%
Qes0.49+7%
57%
Similarity
£34.72

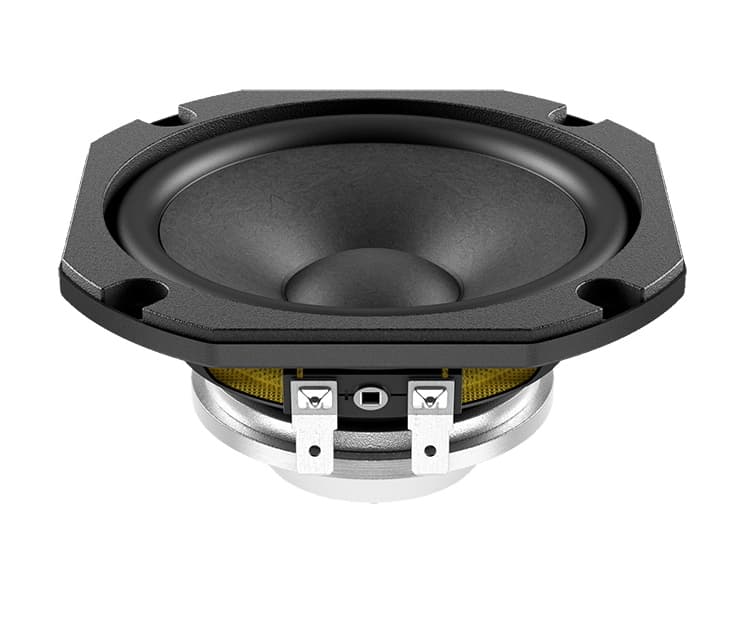

Lavoce
FSN041.00
4"
Xmax2.2mm+22%
Qts0.38-14%
BL6.9Tm+33%
Vas1.8L+7%
Qes0.43-7%
55%
Similarity
£23.56
Lavoce
FSN030.72
3"
Xmax2.1mm+17%
Qts0.41-7%
BL5Tm-3%
Vas1.1L-35%
Qes0.43-7%
45%
Similarity
Monacor
SPH-30X/4SW
3"
Xmax2mm+11%
Qts0.42-5%
BL3.9Tm-24%
Vas1.1L-36%
Qes0.39-15%
