5-inch LF driver · SPH series · 25 mm voice coil · 50 W
Monacor SPH-145HQ 8Ω
8 Ω · 3–6000 Hz
£76.20
SteadyWilmslow Audio · All 2 offers
- Fs
- 52Hz
- Xmax
- 3.5mm
- SPL
- 86dB
- Pe
- 50W
- BL
- 5.3T·m
- Vd
- 28cm³
- Qts
- 0.44
- Vas
- 9L
Monacor SPH-145HQ is a 5-inch 8 ohm LF driver rated at 50 W RMS. The validated T/S data includes Fs 52 Hz, Qts 0.44, Vas 9.4 L, Xmax 3.5 mm, sensitivity 86.2 dB, plus 28 cm³ Vd and 102 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £76.20.
The published T/S values agree with each other
Thiele/Small
- Fs
- 52Hz
- Qts
- 0.44
- Qes
- 0.51
- Qms
- 3.1
- Vas
- 9.4L
- Re
- 5.8Ω
- Le
- 0.53mH
Motor and cone
- BL
- 5.3T·m
- Sd
- 80cm²
- Mms
- 8g
- Xmax
- 3.5mm
- Vd †
- 28cm³
- Voice coil
- 25mm

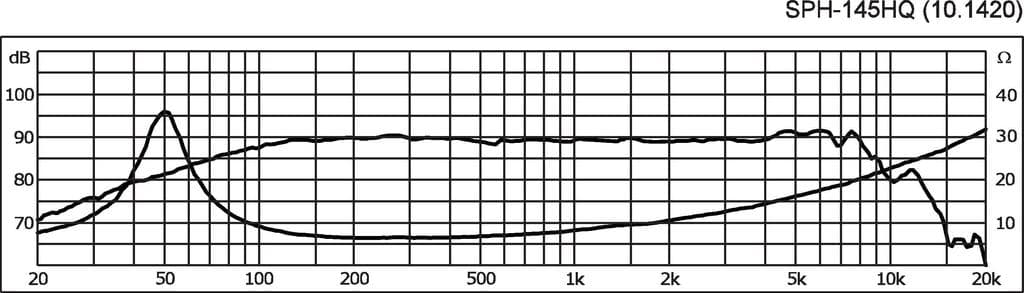

Power and response
- Sensitivity †
- 86.2dB
- Manufacturer sensitivity
- 88dB
- Power
- 50W
- Impedance
- 8Ω
- Range
- 3–6000Hz
- EBP †
- 102 · Leans vented

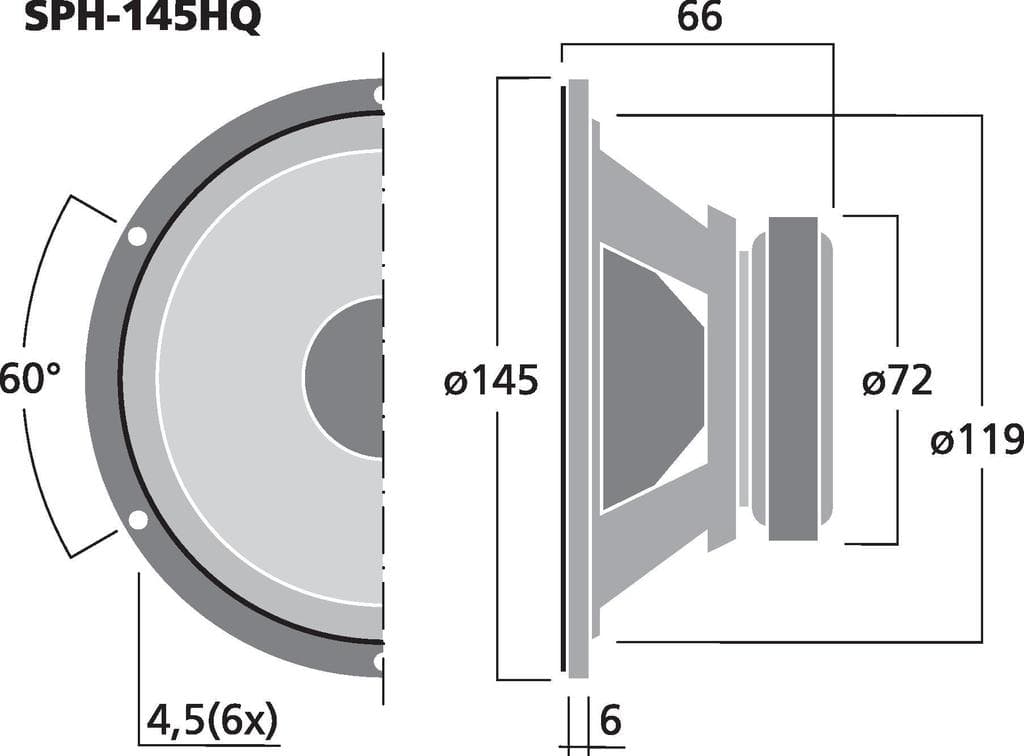

Size and mounting
- Diameter
- 145mm
- Cutout
- 119mm
- Depth
- 66mm
- Weight
- 0.74kg
Other published values
- Cms
- 1.05mm/N
- Power Peak
- 100
Other dimensions
- Mounting Depth
- 60
Sensitivity shows 86.2 dB, calculated from the T/S values. Monacor publishes 88.0 dB, 1.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Monacor lists
MF · Primary · 5″
- BL
- 5.3T·m
- Fs
- 52Hz
- Le
- 0.53mH
- Re
- 5.8Ω
- Sd
- 80cm²
- Cms
- 1.05mm/N
- Mms
- 8g
- Qes
- 0.51
- Qms
- 3.1
- Qts
- 0.44
- SPL
- 86.2dB
- Vas
- 9.4L
- Xmax
- 3.5mm
- Power
- 50W
- Impedance
- 8Ω
- Power Peak
- 100
- Sensitivity
- 88dB
- Low limit
- 3Hz
- Calculated sensitivity †
- 86.2dB
- High limit
- 6000Hz
- Manufacturer sensitivity
- 88dB
- Voice coil
- 25mm
- Weight
- 0.74kg
- Diameter
- 145mm
- Depth
- 66mm
- Mounting Depth
- 60
- Cutout
- 119mm
