Audio Technology 15 H 52 06 13 SDKAM-LR 8Ω
8 Ω
No current price
- Fs
- 65Hz
- Xmax
- 4mm
- SPL
- 89dB
- Pe
- 120W
- BL
- 6.4T·m
- Vd
- 40cm³
- Qts
- 0.45
- Vas
- 9L
Audio Technology 15 H 52 06 13 SDKAM-LR is a 6-inch 8 ohm LF driver rated at 120 W RMS. The validated T/S data includes Fs 65 Hz, Qts 0.45, Vas 9.2 L, Xmax 4 mm, sensitivity 89.1 dB, plus 40 cm³ Vd and 130 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 65Hz
- Qts
- 0.45
- Qes
- 0.50
- Qms
- 4.8
- Vas
- 9.2L
- Re
- 5.5Ω
- Le
- 0.12mH
Motor and cone
- BL
- 6.4T·m
- Sd
- 100cm²
- Mms
- 9g
- Xmax
- 4mm
- Vd †
- 40cm³
Power and response
- Sensitivity †
- 89.1dB
- Manufacturer sensitivity
- 89dB
- Power
- 120W
- Impedance
- 8Ω
- EBP †
- 130 · Leans vented
Other published values
- Cms
- 0.65mm/N
- Rms
- 0.79kg/s
- Xmech
- 15
† Calculated by bits from the published values
What this validation status means
Everything else Audio Technology lists
MF · Primary · 5.91″
- BL
- 6.4T·m
- Fs
- 65Hz
- Le
- 0.12mH
- Re
- 5.5Ω
- Sd
- 100cm²
- Cms
- 0.65mm/N
- Mms
- 9g
- Qes
- 0.50
- Qms
- 4.8
- Qts
- 0.45
- Rms
- 0.79kg/s
- SPL
- 89.1dB
- Vas
- 9.2L
- Xmax
- 4mm
- Xmech
- 15
- Power
- 120W
- Impedance
- 8Ω
- Sensitivity
- 89dB
- Calculated sensitivity †
- 89.1dB
- Manufacturer sensitivity
- 89dB
02
Compare
Same-size drivers, compared with the 15 H 52 06 13 SDKAM-LR. Clear differences are green when better and red when worse.
This driver15 H 52 06 13 SDKAM-LR
Best price
–
Fs
65 Hz
Qts
0.45
Vas
9.2 L
BL
6.4 T·m
Xmax
4 mm
Sensitivity
89.1 dB
Power
120 W
Dayton AudioDC130AS-8
£22.58Fs57 Hz −12%, better
Qts0.45 –
Vas9.7 L +6%
BL5.8 T·m −9%
Xmax2.5 mm −38%, worse
Sensitivity87 dB −2.1, worse
Dayton AudioPA165-8
£24.84Fs81 Hz +24%, worse
Qts0.47 +4%
Vas9.2 L –
BL6.3 T·m –
Xmax–
Sensitivity91.1 dB +2, better
Dayton AudioDS135-8
£30.11Fs53 Hz −19%, better
Qts0.39 −13%, better
Vas7.3 L −21%, better
BL6.2 T·m –
Xmax4.8 mm +21%, better
Sensitivity85.4 dB −3.7, worse
Dayton AudioDSA135-8
£30.11Fs52 Hz −20%, better
Qts0.38 −16%, better
Vas7.9 L −14%, better
BL6.2 T·m –
Xmax4.9 mm +23%, better
Sensitivity85.7 dB −3.4, worse
Dayton AudioSIG150-4
£32.17Fs62 Hz −5%
Qts0.49 +9%
Vas8.7 L −5%
BL5.2 T·m −19%, worse
Xmax4 mm –
Sensitivity87.8 dB −1.3
CelestionTRUVOX 0615
£32.65Fs90 Hz +38%, worse
Qts0.47 +5%
Vas7.4 L −19%, better
BL8.0 T·m +25%, better
Xmax3.5 mm −13%, worse
Sensitivity92.2 dB +3.1, better
Dayton AudioRS125P-8
£37.65Fs70 Hz +8%
Qts0.44 –
Vas4.0 L −57%, better
BL5.1 T·m −21%, worse
Xmax4 mm –
Sensitivity86.1 dB −3, worse
MonacorSPH-5M
£38.20Fs45 Hz −31%, better
Qts0.41 −9%
Vas13.5 L +47%, worse
BL6.4 T·m –
Xmax3.5 mm −13%, worse
Sensitivity86.2 dB −2.9, worse

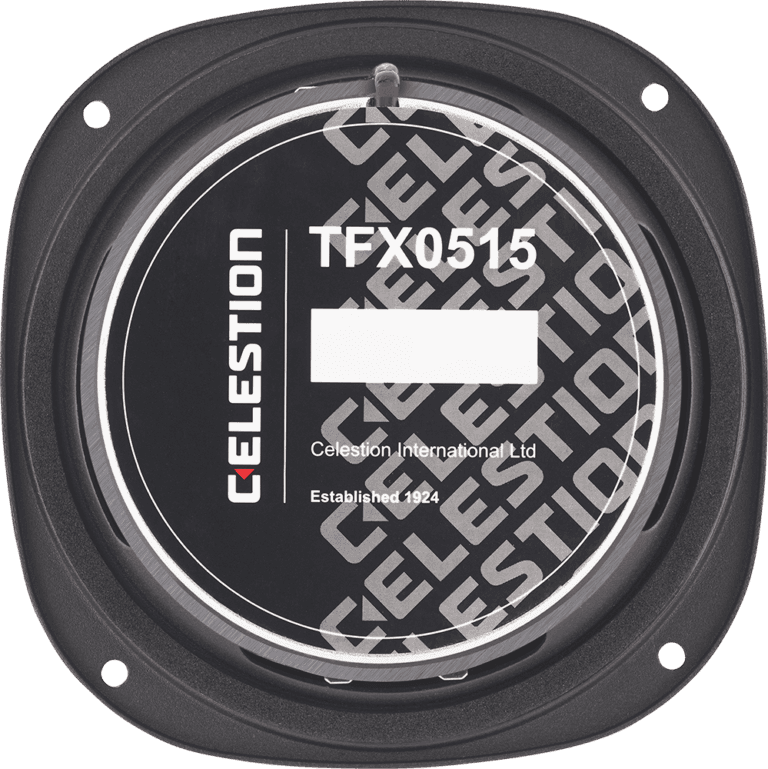

CelestionTFX0515
£48.14Fs74 Hz +14%, worse
Qts0.47 +5%
Vas6.5 L −29%, better
BL7.0 T·m +9%
Xmax3.8 mm −6%
Sensitivity89.2 dB –

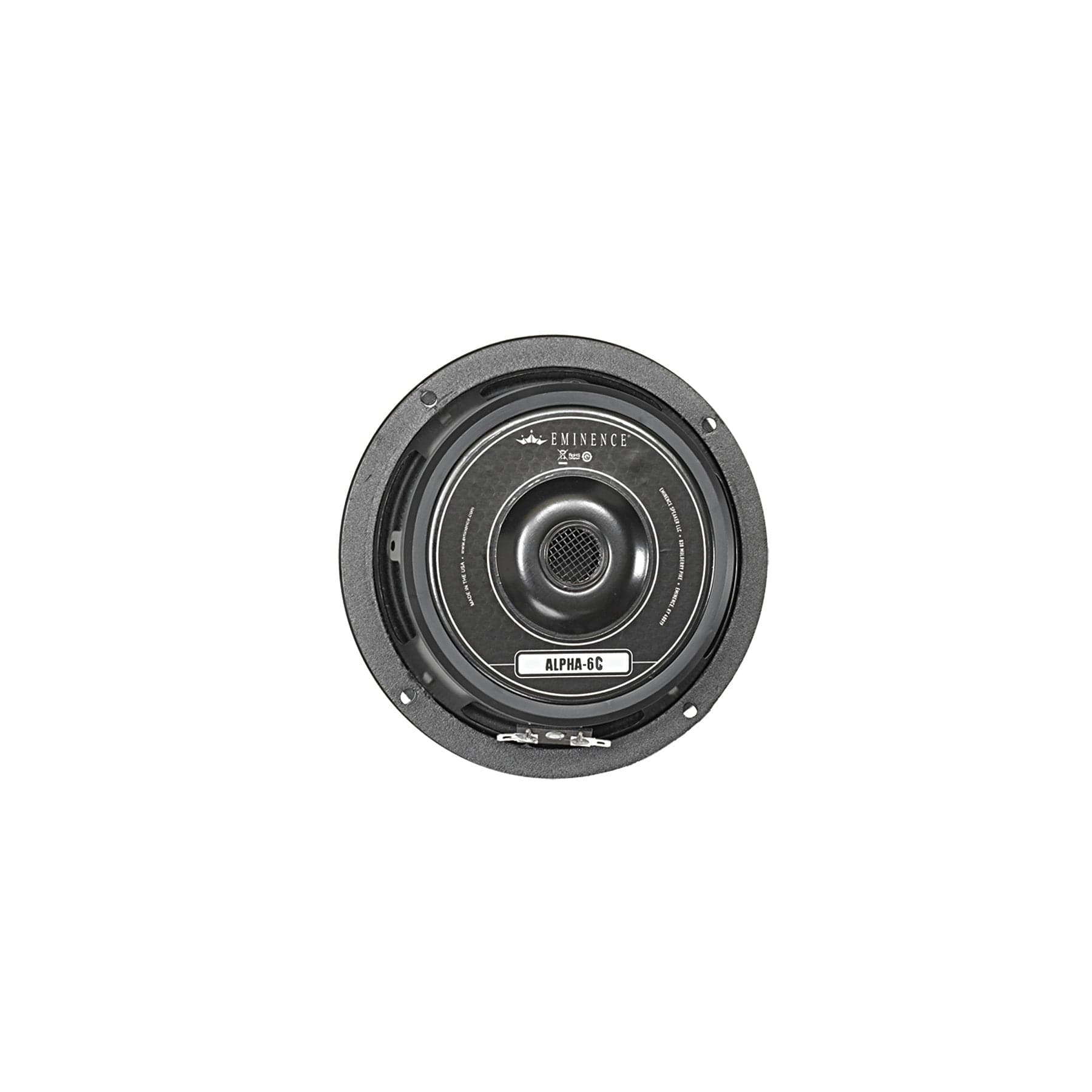

EminenceALPHA 6C
£57.54Fs107 Hz +65%, worse
Qts0.45 –
Vas5.7 L −38%, better
BL6.4 T·m –
Xmax3.5 mm −13%, worse
Sensitivity93.6 dB +4.5, better
WavecorWF146WA02
£58.00Fs58 Hz −11%, better
Qts0.51 +13%, worse
Vas10 L +9%
BL6.4 T·m –
Xmax3 mm −25%, worse
Sensitivity87.6 dB −1.5

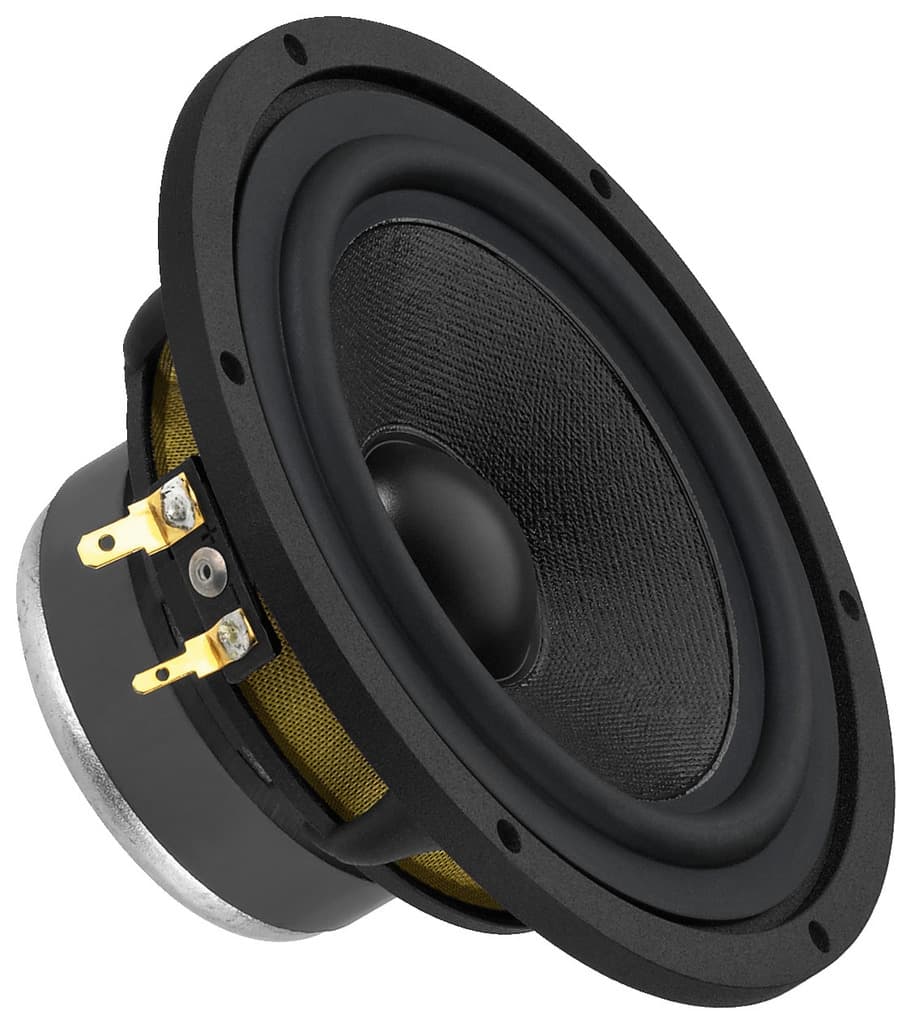

MonacorSPH-145HQ
£72.32Fs52 Hz −20%, better
Qts0.44 –
Vas9.4 L –
BL5.3 T·m −17%, worse
Xmax3.5 mm −13%, worse
Sensitivity86.2 dB −2.9, worse
WavecorWF132TU02
£79.09Fs62 Hz −5%
Qts0.44 –
Vas9 L –
BL5.2 T·m −19%, worse
Xmax3 mm −25%, worse
Sensitivity88.7 dB –
Tang BandW5-1611SAF
£101.01Fs60 Hz −8%
Qts0.44 –
Vas11.7 L +27%, worse
BL5.5 T·m −14%, worse
Xmax3 mm −25%, worse
Sensitivity88.9 dB –
WavecorSW168WA01
£112.98Fs43 Hz −34%, better
Qts0.45 –
Vas9.6 L +4%
BL7.5 T·m +17%, better
Xmax7 mm +75%, better
Sensitivity84.1 dB −5, worse
£390.42
Fs38 Hz −42%, better
Qts0.42 −7%
Vas14 L +52%, worse
BL5.1 T·m −20%, worse
Xmax4 mm –
Sensitivity83.9 dB −5.2, worse
Dayton AudioCFC180-4
No current priceFs52 Hz −20%, better
Qts0.43 −4%
Vas11.5 L +25%, worse
BL6.8 T·m +6%
Xmax4 mm –
Sensitivity87.1 dB −2, worse

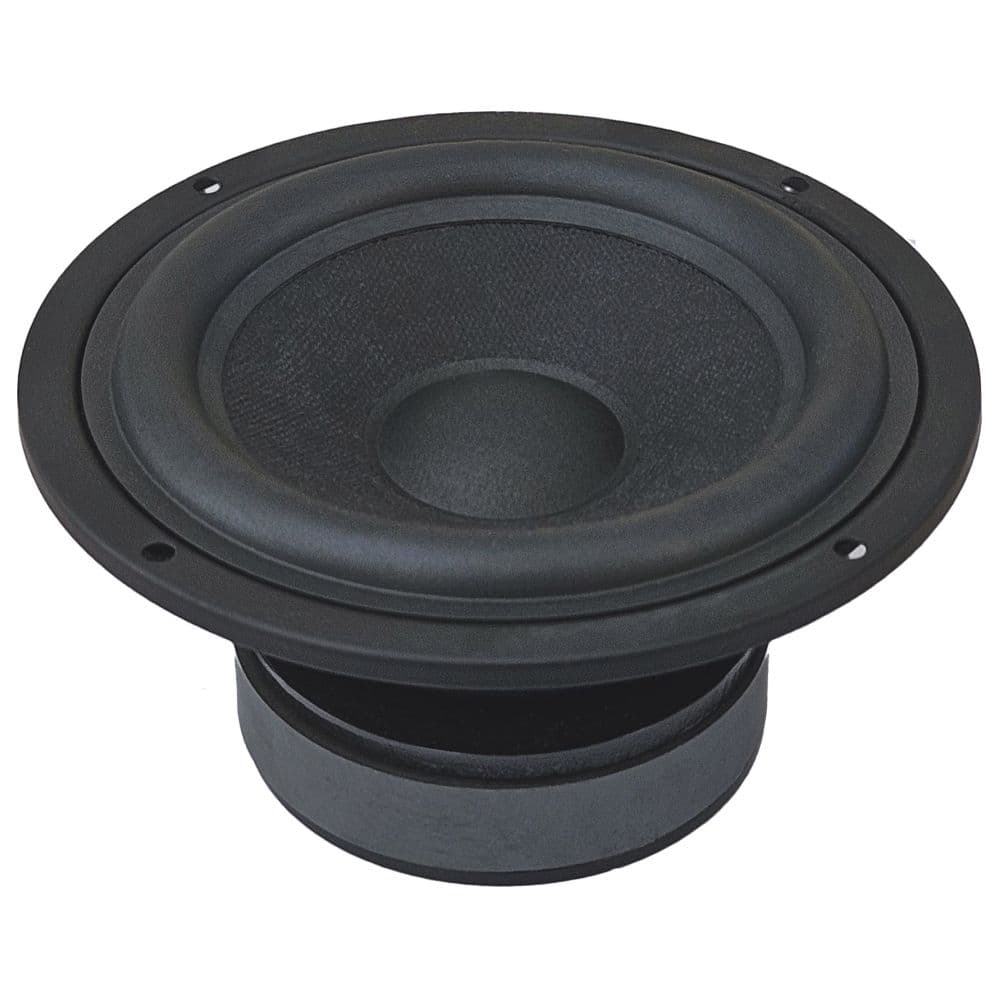

CIAREHWL130
No current priceFs53 Hz −18%, better
Qts0.43 −4%
Vas11.2 L +22%, worse
BL5.8 T·m −9%
Xmax4 mm –
Sensitivity87.6 dB −1.5
Tang BandW6-658I
No current priceFs45 Hz −31%, better
Qts0.44 –
Vas28.3 L +208%, worse
BL6.3 T·m –
Xmax4.1 mm –
Sensitivity89.2 dB –
CelestionTFX0512
No current priceFs69 Hz +6%
Qts0.46 –
Vas5.4 L −42%, better
BL6.4 T·m –
Xmax3.3 mm −19%, worse
Sensitivity87.6 dB −1.5
VisatonAL 130 M
No current priceFs57 Hz −12%, better
Qts0.46 –
Vas9.1 L –
BL5.6 T·m −13%, worse
Xmax5.5 mm +38%, better
Sensitivity87.1 dB −2, worse
VisatonAL 130 M - 8 OHM
No current priceFs57 Hz −12%, better
Qts0.46 –
Vas9.1 L –
BL5.6 T·m −13%, worse
Xmax5.5 mm +38%, better
Sensitivity87.1 dB −2, worse

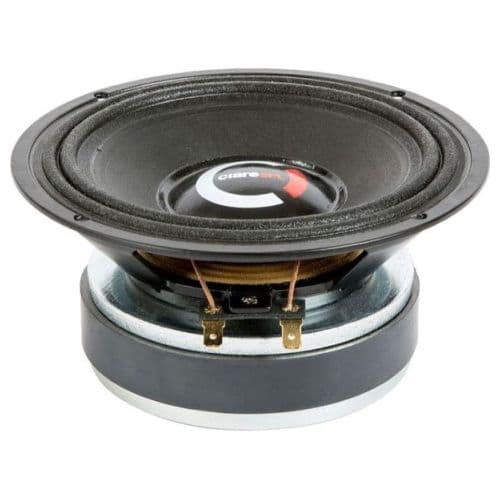

CIARECMI160
No current priceFs70 Hz +8%
Qts0.41 −9%
Vas7.8 L −15%, better
BL7.2 T·m +12%, better
Xmax4.5 mm +13%, better
Sensitivity89.8 dB +0.7
WavecorWF152BD11
No current priceFs53 Hz −18%, better
Qts0.40 −11%, better
Vas8.6 L −7%
BL7.2 T·m +12%, better
Xmax4.5 mm +13%, better
Sensitivity86.9 dB −2.2, worse
Tang BandW6-623I
No current priceFs46 Hz −29%, better
Qts0.41 −9%
Vas29.8 L +224%, worse
BL6.7 T·m +5%
Xmax4 mm –
Sensitivity90.1 dB +1

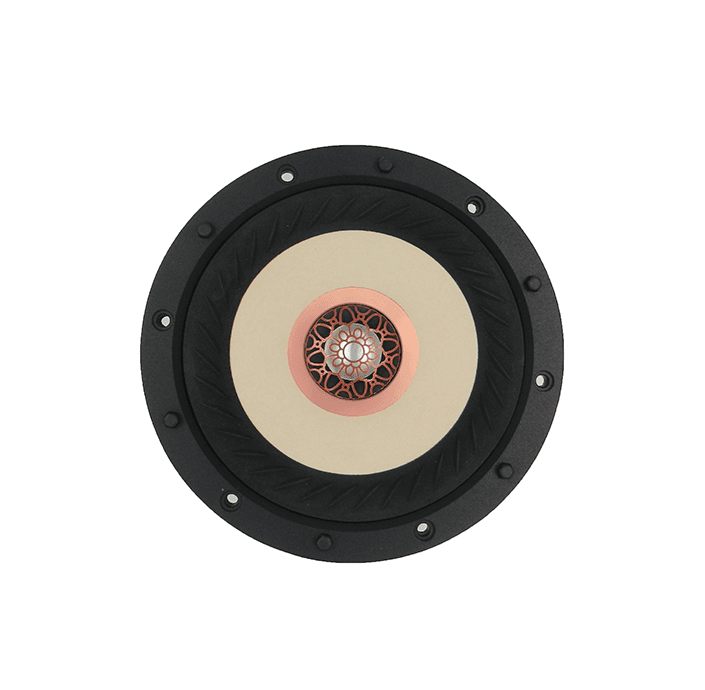

Tang BandW6-2313
