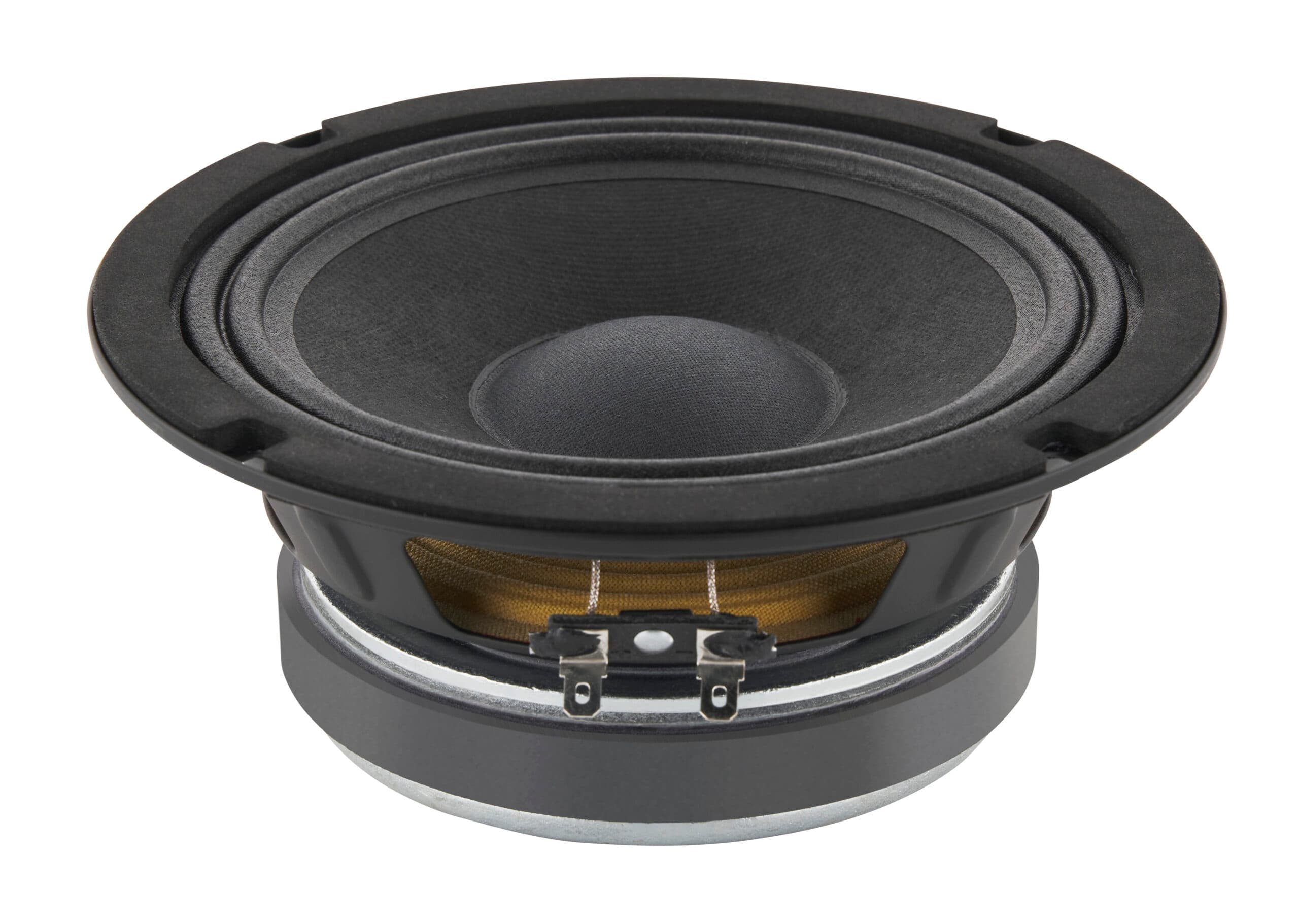

Celestion TRUVOX 0615
Celestion TRUVOX 0615 is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 90Hz, Qts 0.47, Vas 7.4L, Xmax 3.5mm, sensitivity 92.2dB, plus 54cm³ Vd and 174 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £32.65.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
92.2dB
EBP
174
Vented alignment
Vd
54cm³

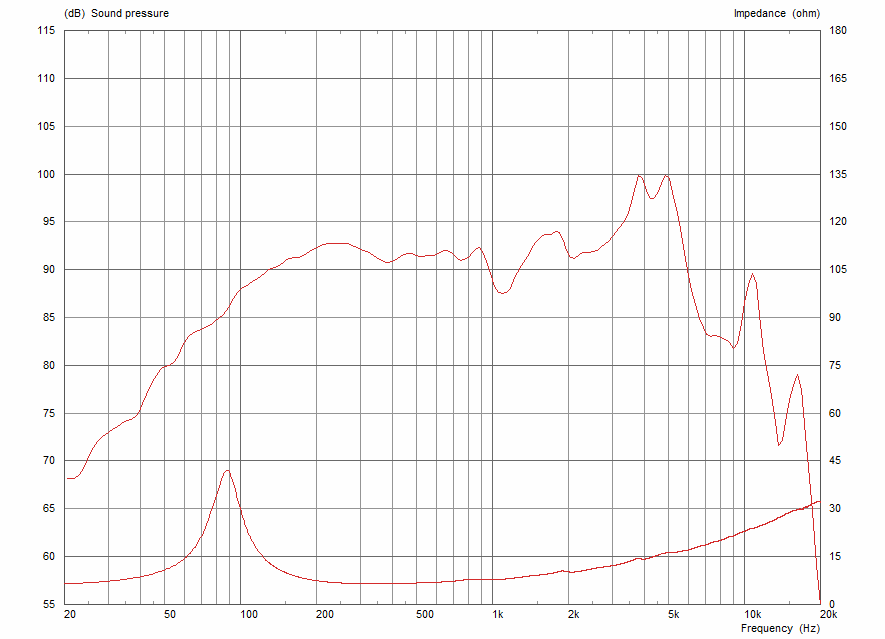

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response130 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
130 plotted pointsMedium confidence134 selected pixels of 298
T/S Parameters
Valid
Fs90Hz
Qts0.47
Qes0.52
Qms5.5
Vas7.4L
Re5.6Ω
Le0.37mH
BL8.0Tm
Sd155cm²
Mms11g
Xmax3.5mm
SPL92dB
Power150W
Impedance8Ω
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorpartsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£43.64
inc VAT
4 in stock
Best current price
Updated 11 Sept 2026
leanaudio
£32.65
Avg £38.14£5.49 below avg (-14.4%)
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.7kg
Diameter167.4mm
Overall Depth65.5mm
Cutout Diameter143.5mm
Bolt Circle Diameter158.5mm
