LF DriverCME series
CIARE
CIARE CME160
CIARE CME160 is a 6.5" 4 ohm LF driver rated at 260W RMS. The validated T/S data includes Fs 110Hz, Qts 0.40, Vas 4.5L, Xmax 3.5mm, sensitivity 93.3dB, plus 48cm³ Vd and 244 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £40.47.
Size
6.5"
Impedance
4Ω
RMS Power
260W
Sensitivity
93.3dB
97.5dBmanufacturer; using T/S-derived value (4.2dB delta).
EBP
244
Vented alignment
Vd
48cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,398 selected pixels of 2,398 - Trace datasheet-response-trace-poc/v1
free air impedance
Impedance response
240 plotted pointsMedium confidence1,854 selected pixels of 1,854
T/S Parameters
Valid
Fs110Hz
Qts0.40
Qes0.45
Qms3.2
Vas4.5L
Re3.2Ω
Le0.30mH
BL7.6Tm
Sd137cm²
Mms12g
Xmax3.5mm
SPL93dB
Power260W
Power Nominal130W
Impedance4Ω
F Low100Hz
F High6000Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
£40.47
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.9kg
Diameter165.5mm
Overall Depth80.0mm
Cutout Diameter142.0mm
Bolt Circle Diameter156.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CME160
6.5"
Best current price
£40.47
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
9 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
56%
Similarity
10% more£44.66
FaitalPRO
6FE300
6"
Higher price
Xmax3.9mm+11%
Qts0.46+15%
BL10Tm+32%
Vas4.7L+4%
Qes0.48+7%
68%
Similarity
23% more£49.78

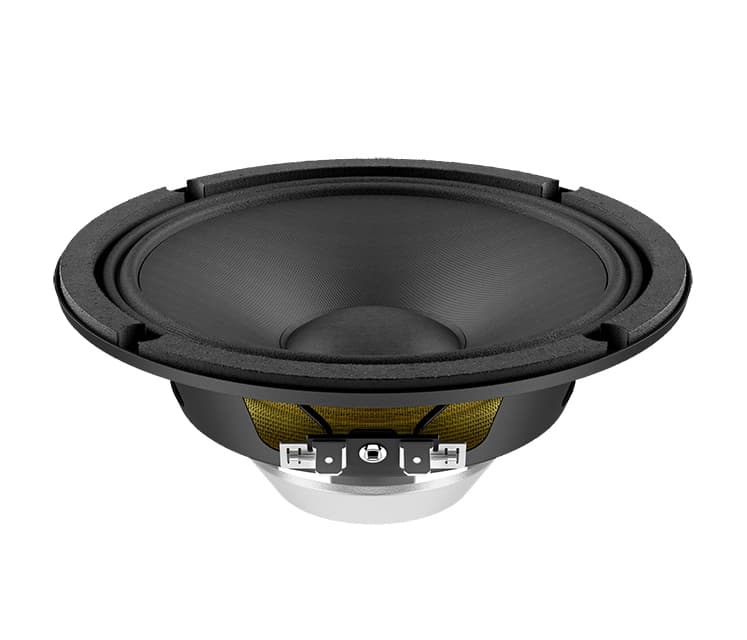

Lavoce
WSN061.52
6.5"
Higher price
Xmax3.8mm+9%
Qts0.39-3%
BL9.9Tm+30%
Vas5.9L+32%
Qes0.42-7%
65%
Similarity
35% more£54.73
Eminence
ALPHA 6C
6"
Higher price
Xmax3.5mm0%
Qts0.45+12%
BL6.4Tm-16%
Vas5.7L+27%
Qes0.49+9%
58%
Similarity
75% more£71.00
Celestion
CF0617M
6.5"
Higher price
Xmax2.7mm-23%
Qts0.45+13%
BL9.7Tm+27%
Vas5.4L+20%
Qes0.48+7%
60%
Similarity
114% more£86.62
B&C
6PEV13
6.5"
Higher price
Xmax2.5mm-29%
Qts0.36-10%
BL8.2Tm+8%
Vas6L+33%
Qes0.39-13%
71%
Similarity
176% more£111.62
CIARE
CMI160ND
6.5"
Higher price
Xmax4.5mm+29%
Qts0.41+2%
BL7.8Tm+3%
Vas6L+33%
Qes0.450%
56%
Similarity
185% more£115.20

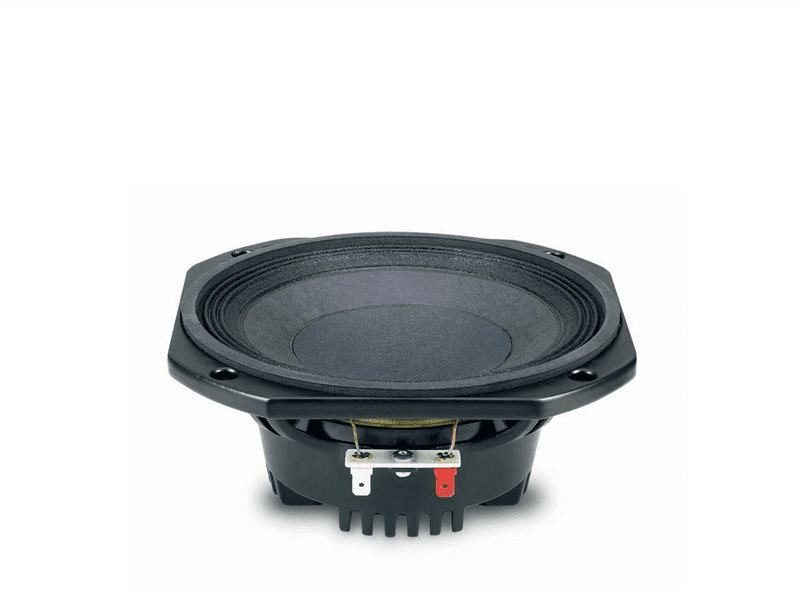

Eighteen Sound
6NMB420
6.5"
Higher price
Xmax3mm-14%
Qts0.33-17%
BL9Tm+18%
Vas6.1L+36%
Qes0.38-16%
62%
Similarity

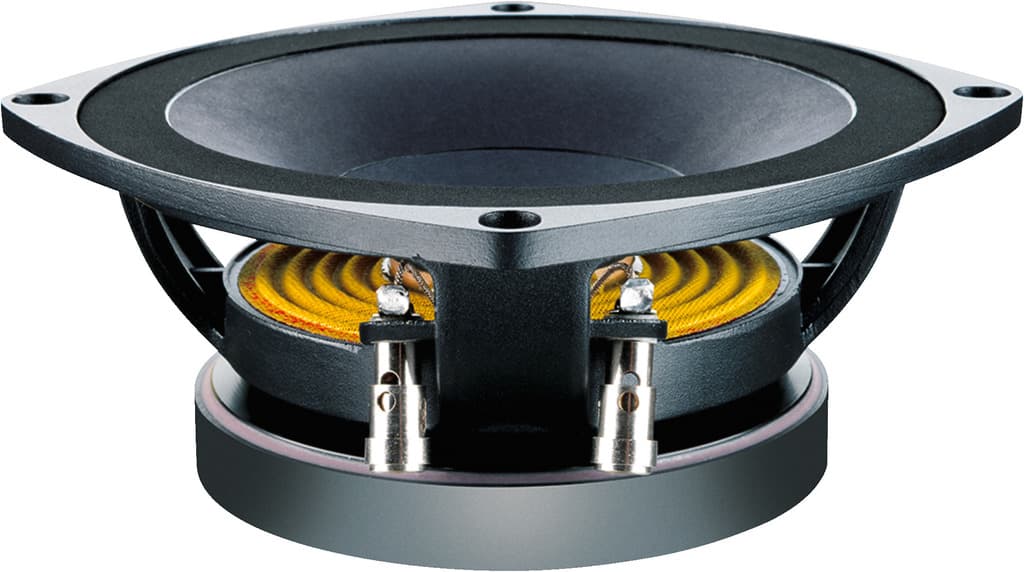

Monacor
