Overview
LF Driver
Beyma
Beyma 6G40ND
Beyma 6G40ND is a 6.5" 8 ohm LF driver rated at 170W RMS. The validated T/S data includes Fs 100Hz, Qts 0.38, Vas 3.7L, Xmax 3mm, sensitivity 91.2dB, plus 42cm³ Vd and 222 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £121.57.
Size
6.5"
Impedance
8Ω
RMS Power
170W
Sensitivity
91.2dB
94.0dBmanufacturer; using T/S-derived value (2.8dB delta).
EBP
222
Vented alignment
Vd
42cm³
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs100Hz
Qts0.38
Qes0.45
Qms2.3
Vas3.7L
Re6.0Ω
Le0.20mH
BL10.6Tm
Sd140cm²
Mms13g
Xmax3.0mm
SPL91dB
Power170W
Impedance8Ω
F Low90Hz
F High8000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£121.57
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.6kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
6G40ND
6.5"
Best current price
£121.57
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
11 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
67%
Similarity
67% cheaper£40.47
CIARE
CME160
6.5"
Lower price
Xmax3.5mm+17%
Qts0.4+5%
BL7.6Tm-28%
Vas4.5L+22%
Qes0.450%
47%
Similarity
63% cheaper£44.66
FaitalPRO
6FE300
6"
Lower price
Xmax3.9mm+30%
Qts0.46+21%
BL10Tm-6%
Vas4.7L+27%
Qes0.48+7%
67%
Similarity
58% cheaper£50.51
CIARE
NDI6
6.5"
Lower price
Xmax3mm0%
Qts0.46+21%
BL10.5Tm-1%
Vas2.5L-32%
Qes0.54+20%
61%
Similarity
42% cheaper£71.00
Celestion
CF0617M
6.5"
Lower price
Xmax2.7mm-10%
Qts0.45+19%
BL9.7Tm-9%
Vas5.4L+46%
Qes0.48+7%
60%
Similarity
39% cheaper£74.45
B&C
6MBX44
6.5"
Lower price
Xmax3.5mm+17%
Qts0.31-18%
BL11.7Tm+10%
Vas4.1L+11%
Qes0.34-24%
76%
Similarity
31% cheaper£84.13
FaitalPRO
6PR122
6"
Lower price
Xmax2.8mm-8%
Qts0.39+3%
BL10.5Tm-1%
Vas4.7L+27%
Qes0.44-2%
45%
Similarity
30% cheaper£84.62
Lavoce
MAN062.00
6.5"
Lower price
Xmax3.9mm+30%
Qts0.3-21%
BL12.7Tm+20%
Vas4.1L+10%
Qes0.33-27%
55%
Similarity
30% cheaper£85.46
FaitalPRO
6PR150
6"
Lower price
Xmax2.6mm-12%
Qts0.34-11%
BL11.6Tm+9%
Vas4.9L+32%
Qes0.35-22%
77%
Similarity
21% cheaper£96.40
B&C
6MDN44
6.5"
Lower price
Xmax2.5mm-17%
Qts0.4+5%
BL11Tm+4%
Vas2.7L-27%
Qes0.46+2%
75%
Similarity

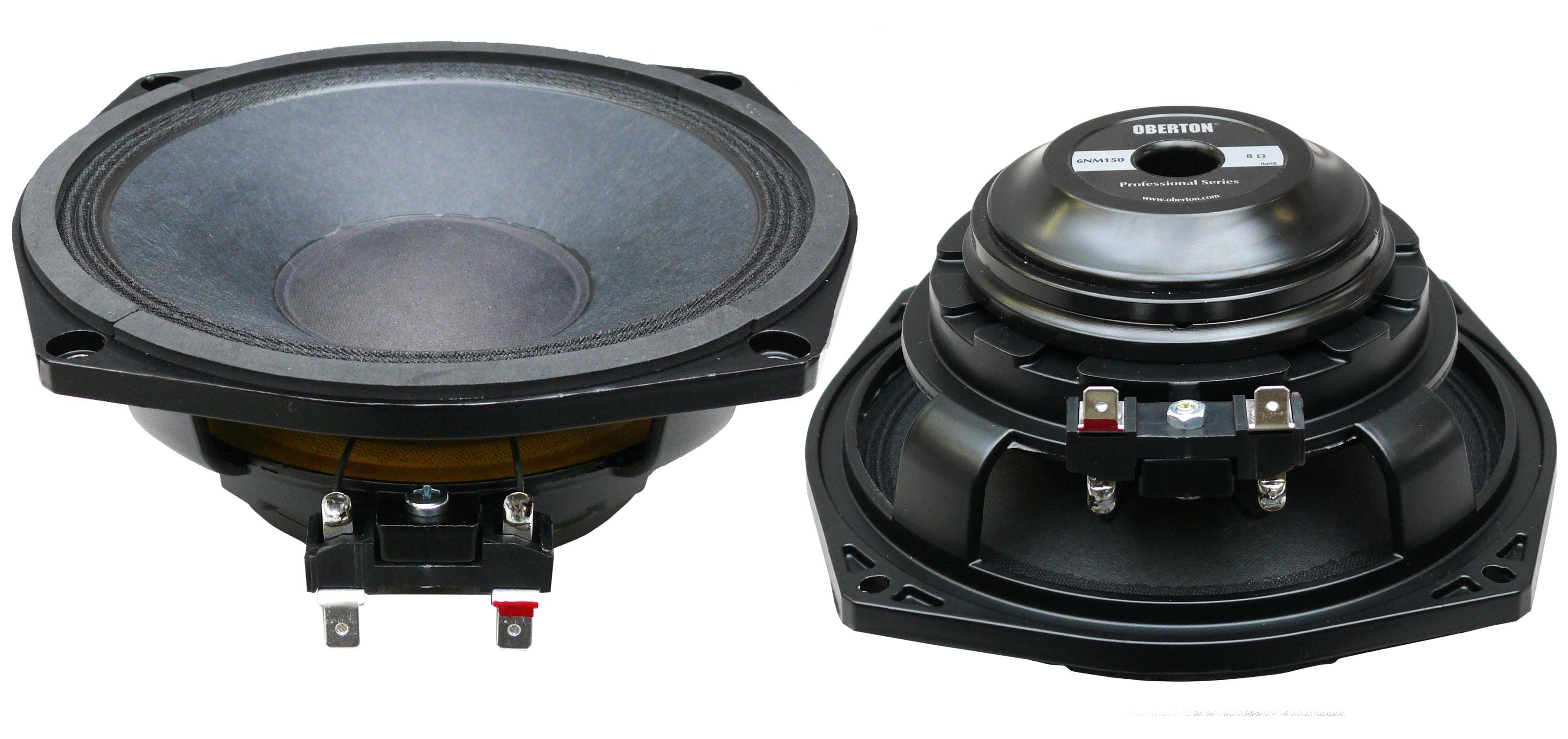

Oberton
6NM150
6.5"
Xmax2.3mm-25%
Qts0.38-1%
BL11.6Tm+9%
Vas4L+8%
Qes0.4-10%
63%
Similarity

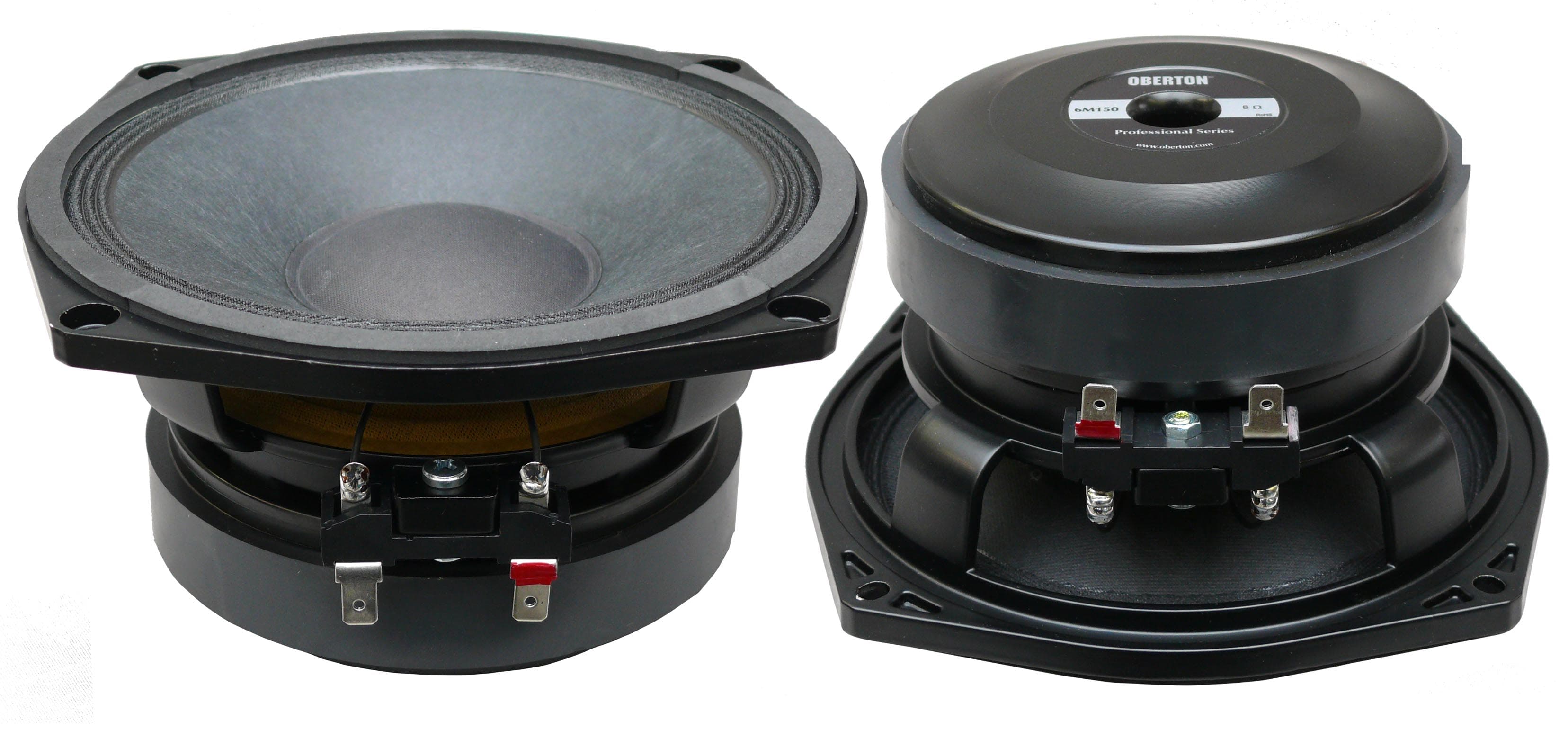

Oberton
6M150
6.5"
Xmax2.3mm-25%
Qts0.42+11%
BL10Tm-5%
Vas5.3L+45%
Qes0.46+2%
