Overview
LF Driver
Dayton Audio
Dayton Audio DC160-8
Dayton Audio DC160-8 is a 2" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 36Hz, Qts 0.34, Vas 17.9L, Xmax 3.1mm, sensitivity 85.3dB, plus 42cm³ Vd and 94 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £25.87.
Size
2"
Impedance
8Ω
RMS Power
50W
Sensitivity
85.3dB
EBP
94
Either alignment
Vd
42cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
15 degrees224 ptsp1medium
30 degrees185 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 4 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
15 degrees
Frequency response
224 plotted pointsMedium confidence731 selected pixels of 1,009 - Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
185 plotted pointsMedium confidence533 selected pixels of 894 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence897 selected pixels of 1,078 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,457 selected pixels of 1,457
T/S Parameters
Valid
Fs36Hz
Qts0.34
Qes0.38
Qms3.5
Vas17.9L
Re6.6Ω
Le2.26mH
BL10.7Tm
Sd135cm²
Mms29g
Xmax3.1mm
SPL85dB
Power50W
Impedance8Ω
F Low30Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorssoundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£34.32
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£40.95
inc VAT
wilmslowaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£57.60
inc VAT
Best current price
Updated 11 Sept 2026
partsexpress
£25.87
Avg £41.47£15.60 below avg (-37.6%)
inc VAT·592 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter165.0mm
Overall Depth82.2mm
Cutout Diameter144.6mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Dayton Audio
DC160-8
2"
Best current price
£25.87
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
3 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
76%
Similarity
Dayton Audio
DC160S-8
2"
Xmax3.1mm0%
Qts0.3-12%
BL11.3Tm+6%
Vas22.5L+26%
Qes0.33-13%
61%
Similarity
Dayton Audio
DC160S-4
2"
Xmax3.4mm+8%
Qts0.3-12%
BL7.7Tm-28%
Vas23.2L+30%
Qes0.34-11%
56%
Similarity

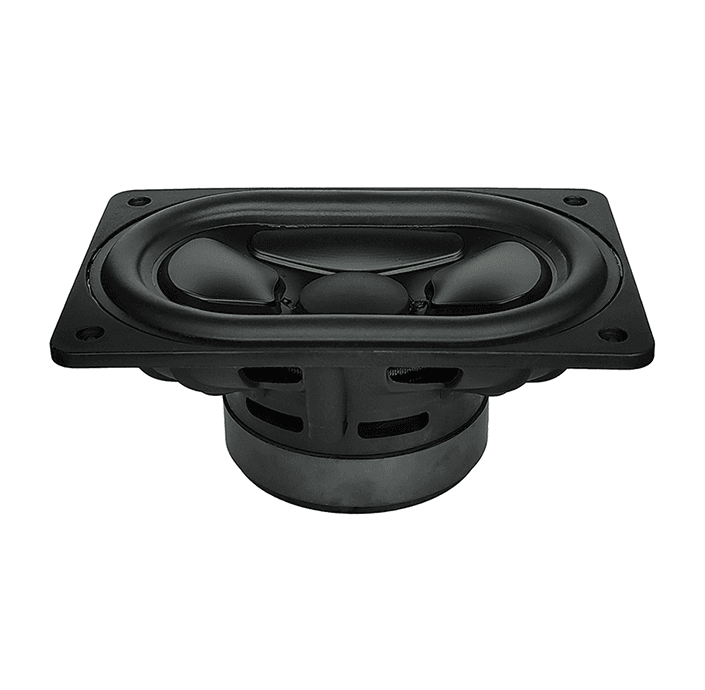

Tang Band
W57-1781
2.25"
Xmax3mm-5%
Qts0.27-21%
BL10.3Tm-3%
Vas26L+45%
Qes0.3-21%
