Overview
LF DriverPTT series
Purifi

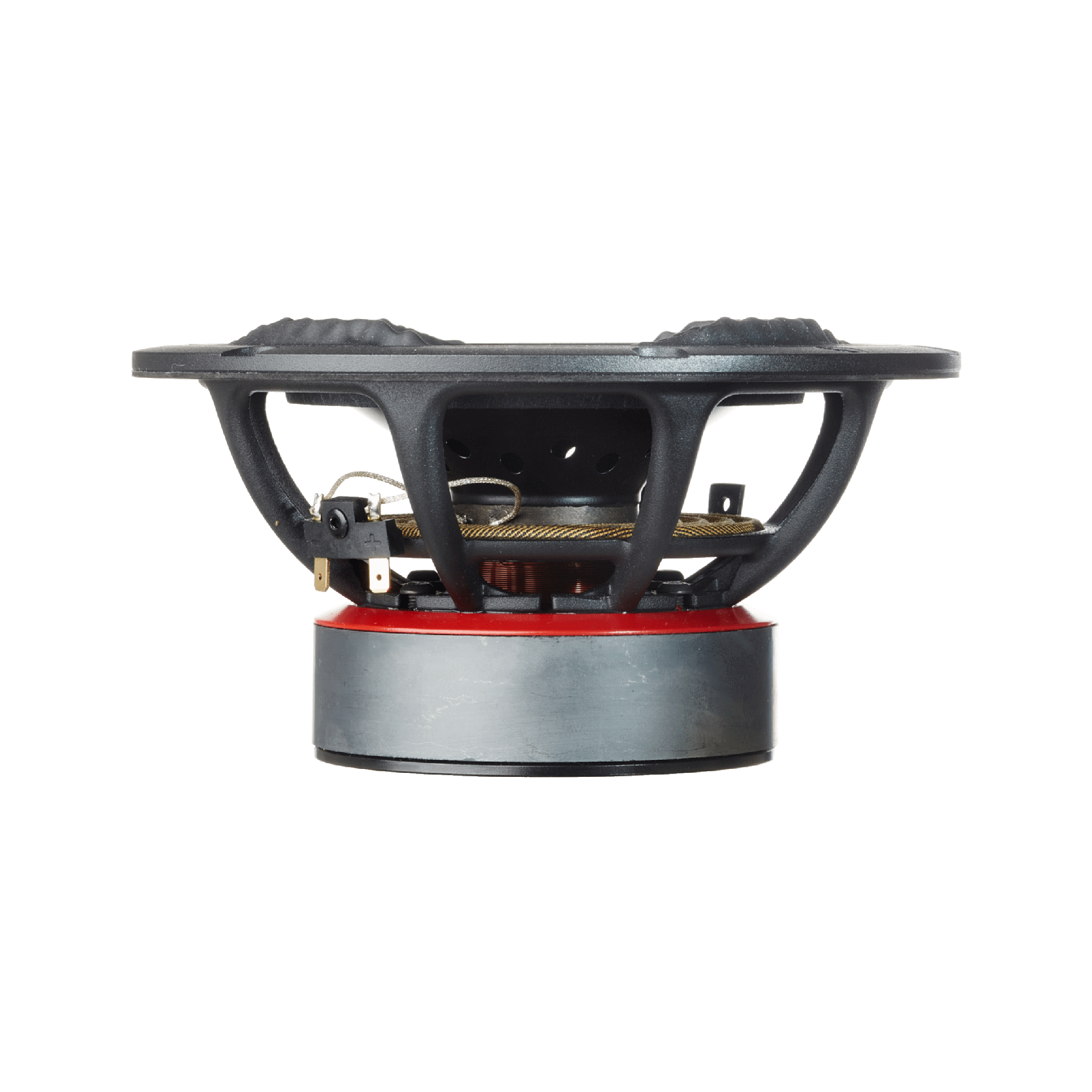

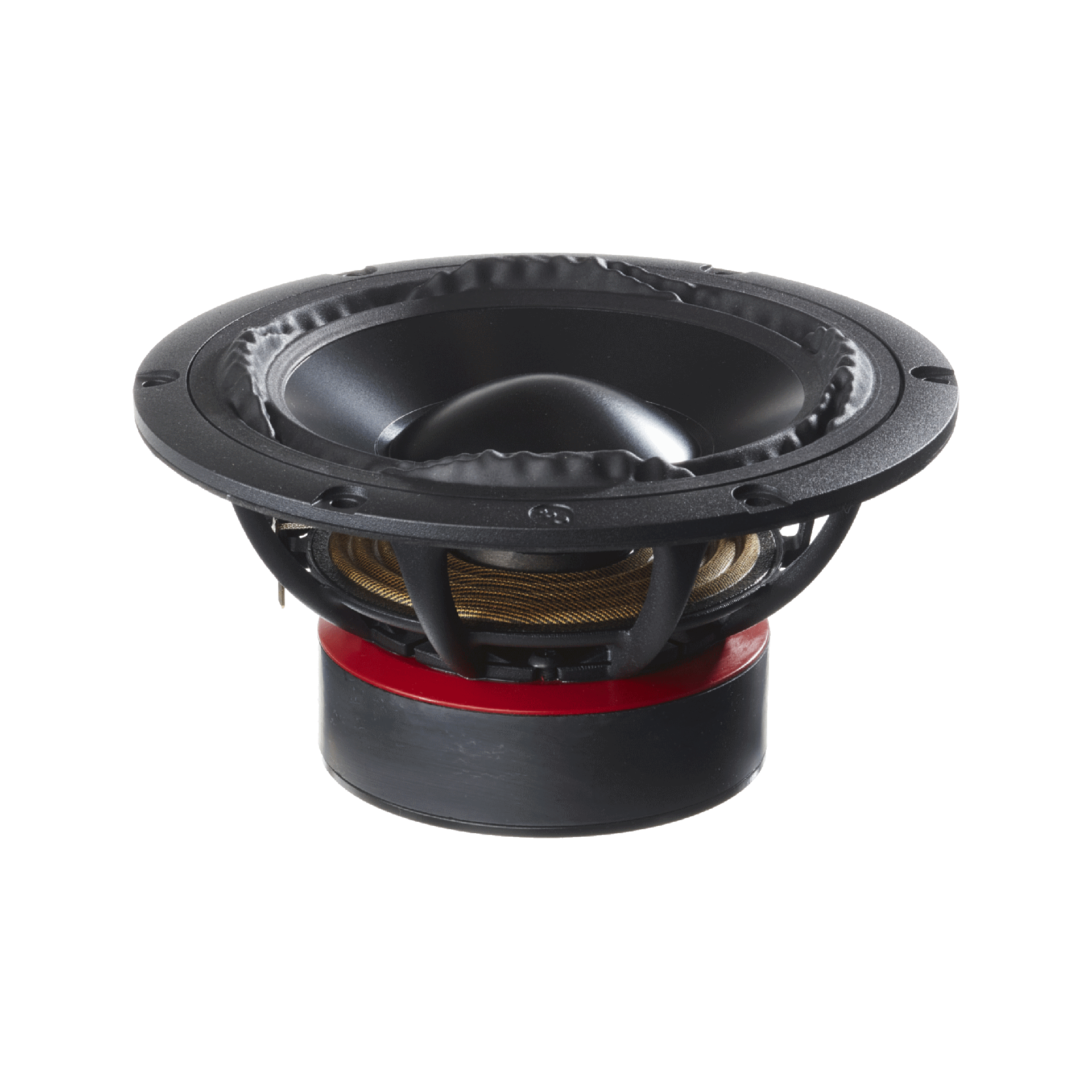

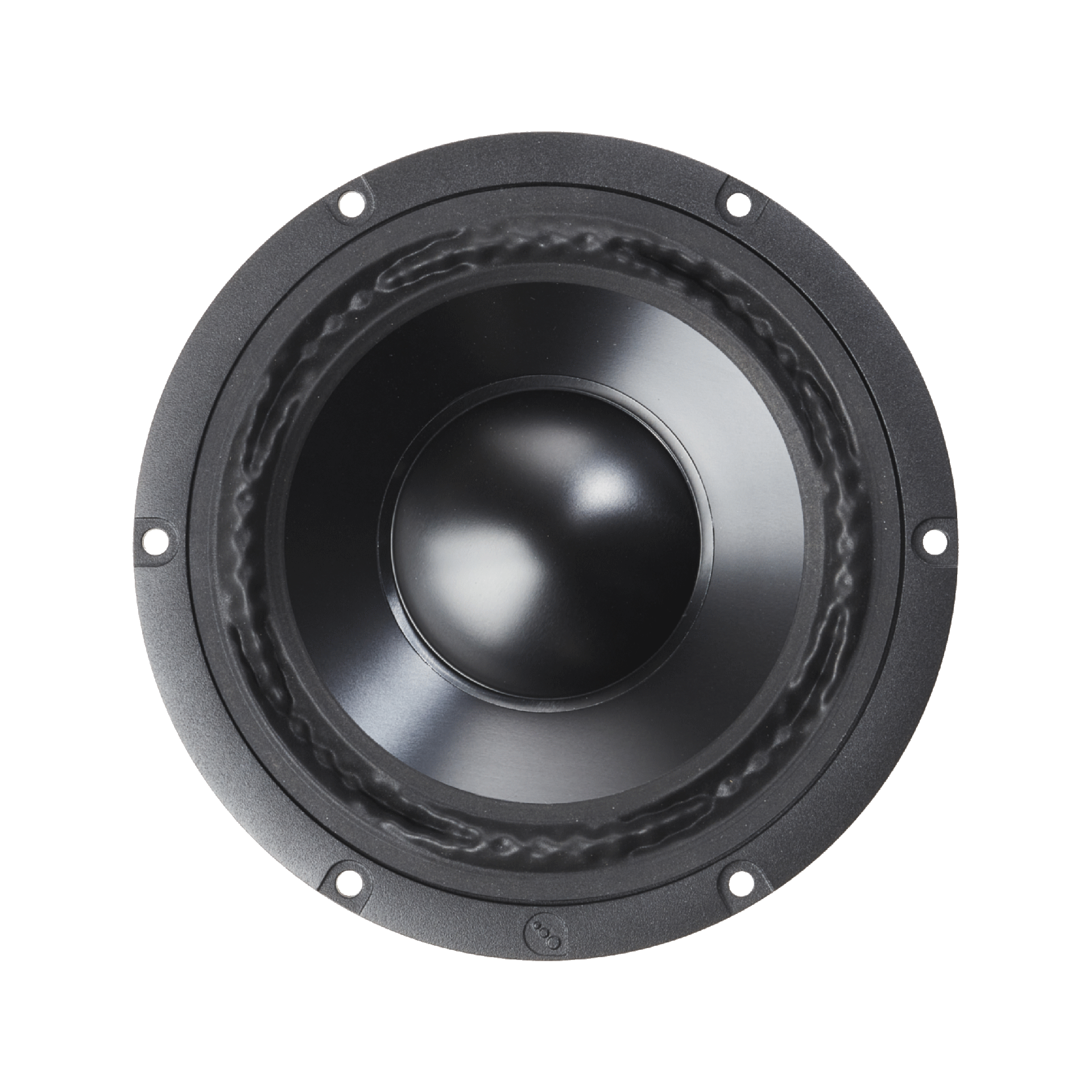

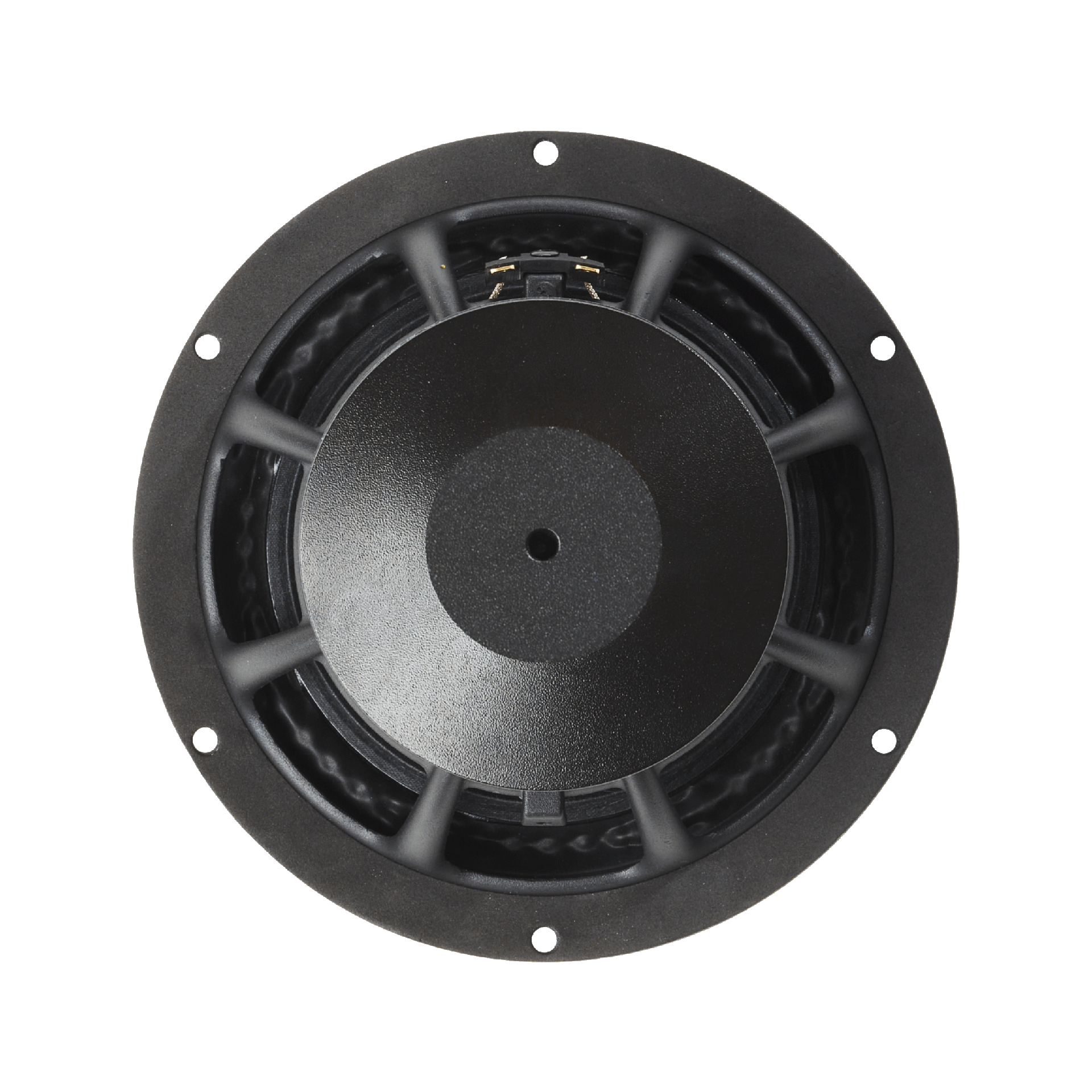

Purifi PTT6.5W08-NAA-08
Purifi PTT6.5W08-NAA-08 is a 6.5" 8 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 35Hz, Qts 0.35, Vas 23.8L, Xmax 5.9mm, sensitivity 86.4dB, plus 78cm³ Vd and 95 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
80W
Sensitivity
86.4dB
EBP
95
Either alignment
Vd
78cm³
T/S Parameters
Valid
Fs35Hz
Qts0.35
Qes0.37
Qms5.9
Vas23.8L
Re6.8Ω
Le0.49mH
BL9.4Tm
Sd133cm²
Mms22g
Xmax5.9mm
SPL86dB
Power80W
Impedance8Ω
Min Impedance6.8Ω
Voice Coil39mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.8kg
Diameter176.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter166.0mm
