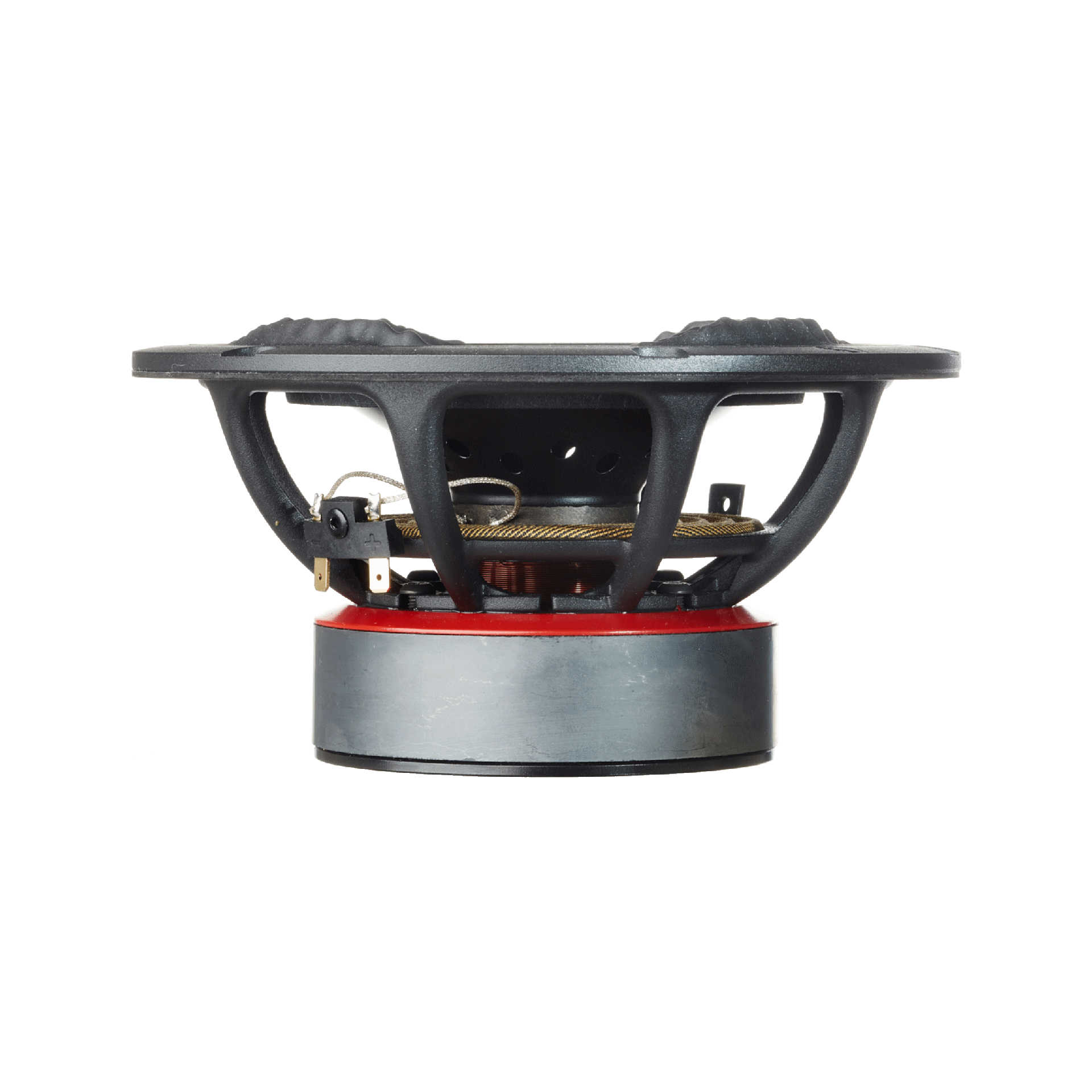

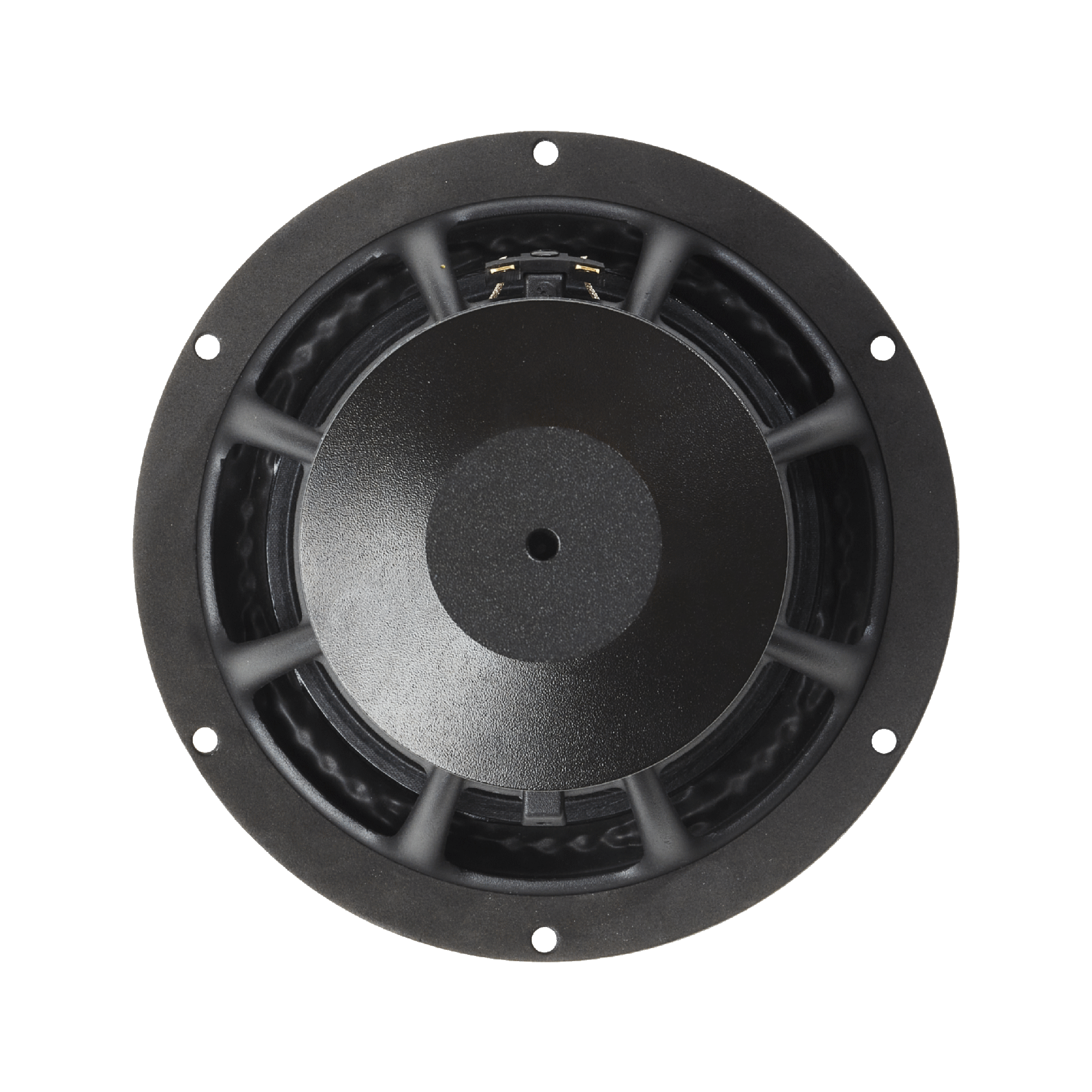

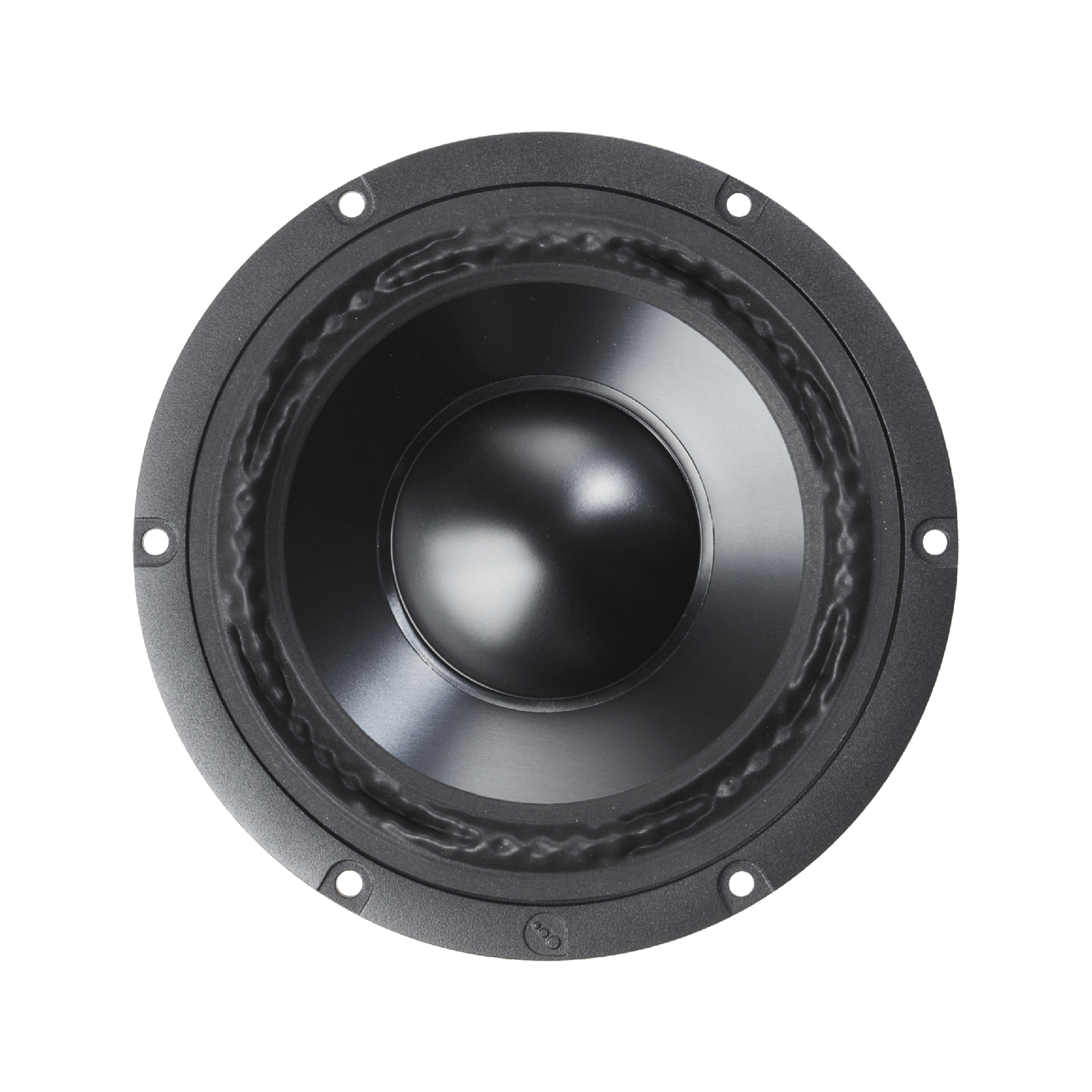

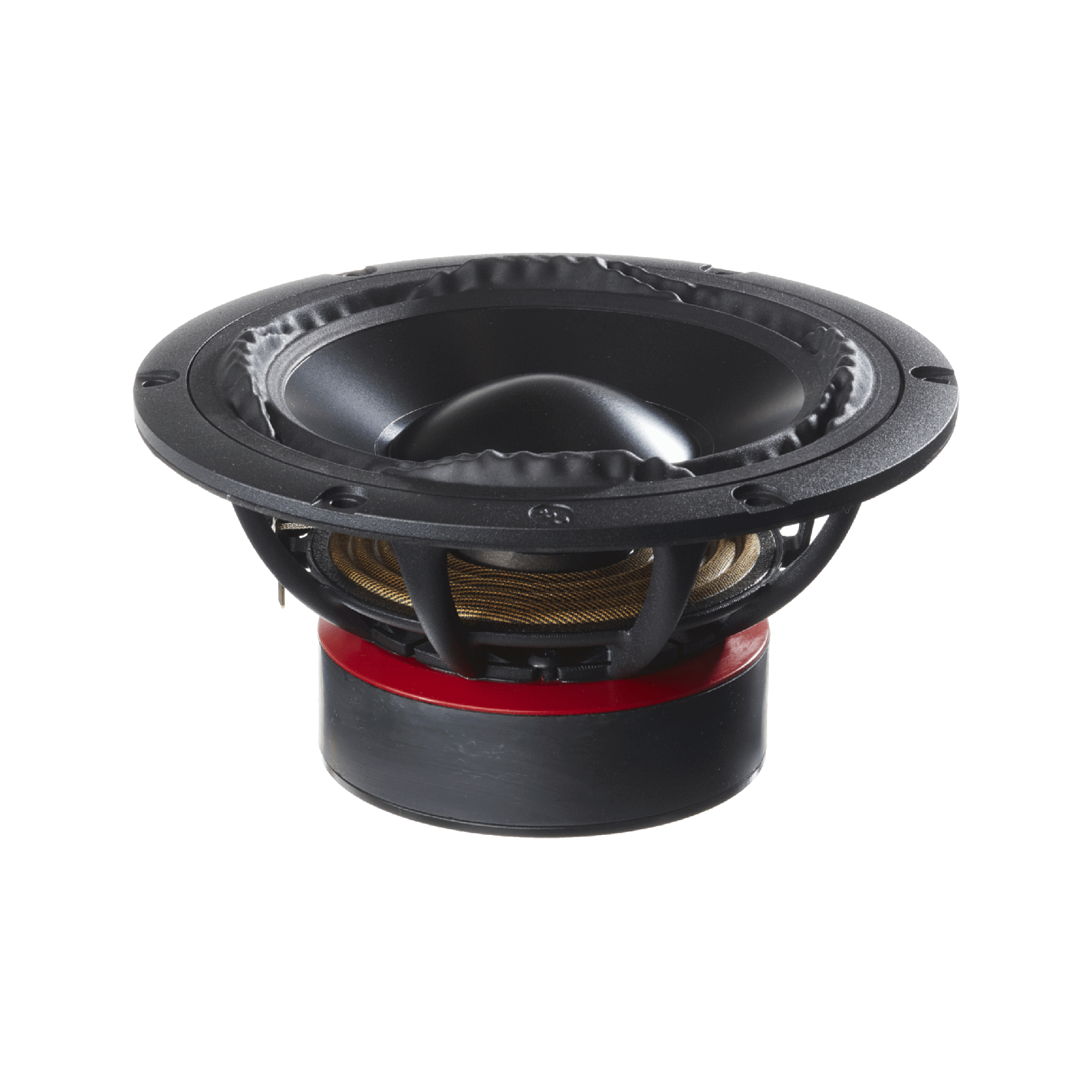

6.5-inch LF driver · PTT series · 39 mm voice coil · 80 W
Purifi PTT6.5X04-NAA-08 4Ω
4 Ω
No current price
- Fs
- 32Hz
- Xmax
- 9.8mm
- SPL
- 85dB
- Pe
- 80W
- BL
- 7.8T·m
- Vd
- 130cm³
- Qts
- 0.35
- Vas
- 21L
Purifi PTT6.5X04-NAA-08 is a 6.5-inch 4 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 32 Hz, Qts 0.35, Vas 20.5 L, Xmax 9.8 mm, sensitivity 84.6 dB, plus 130 cm³ Vd and 86 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 32Hz
- Qts
- 0.35
- Qes
- 0.37
- Qms
- 7.5
- Vas
- 20.5L
- Re
- 3.7Ω
- Le
- 0.36mH
Motor and cone
- BL
- 7.8T·m
- Sd
- 133cm²
- Mms
- 30g
- Xmax
- 9.8mm
- Vd †
- 130cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 84.6dB
- Manufacturer sensitivity
- 86.8dB
- Power
- 80W
- Impedance
- 4Ω
- Min. impedance
- 4.2Ω
- EBP †
- 86 · Sealed or vented
Size and mounting
- Diameter
- 176mm
- Cutout
- 148mm
- Bolt circle
- 166mm
- Weight
- 1.8kg
Other published values
- Cms
- 0.82mm/N
- Rms
- 0.81kg/s
- Xmech
- 14.5
- Power Peak
- 250
Other dimensions
- Mounting Depth
- 85.2
Sensitivity shows 84.6 dB, calculated from the T/S values. Purifi publishes 86.8 dB, 2.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
LF · Primary · 6.5″
- BL
- 7.8T·m
- Fs
- 32Hz
- Le
- 0.36mH
- Re
- 3.7Ω
- Sd
- 133cm²
- Cms
- 0.82mm/N
- Mms
- 30g
- Qes
- 0.37
- Qms
- 7.5
- Qts
- 0.35
- Rms
- 0.81kg/s
- SPL
- 84.6dB
- Vas
- 20.5L
- Xmax
- 9.8mm
- Xmech
- 14.5
- Power
- 80W
- Impedance
- 4Ω
- Power Peak
- 250
- Sensitivity
- 86.8dB
- Calculated sensitivity †
- 84.6dB
- Manufacturer sensitivity
- 86.8dB
- Min. impedance
- 4.2Ω
- Voice coil
- 39mm
- Weight
- 1.8kg
- Diameter
- 176mm
- Mounting Depth
- 85.2
- Cutout
- 148mm
- Bolt circle
- 166mm
