Overview
LF DriverCeramic series
Accuton

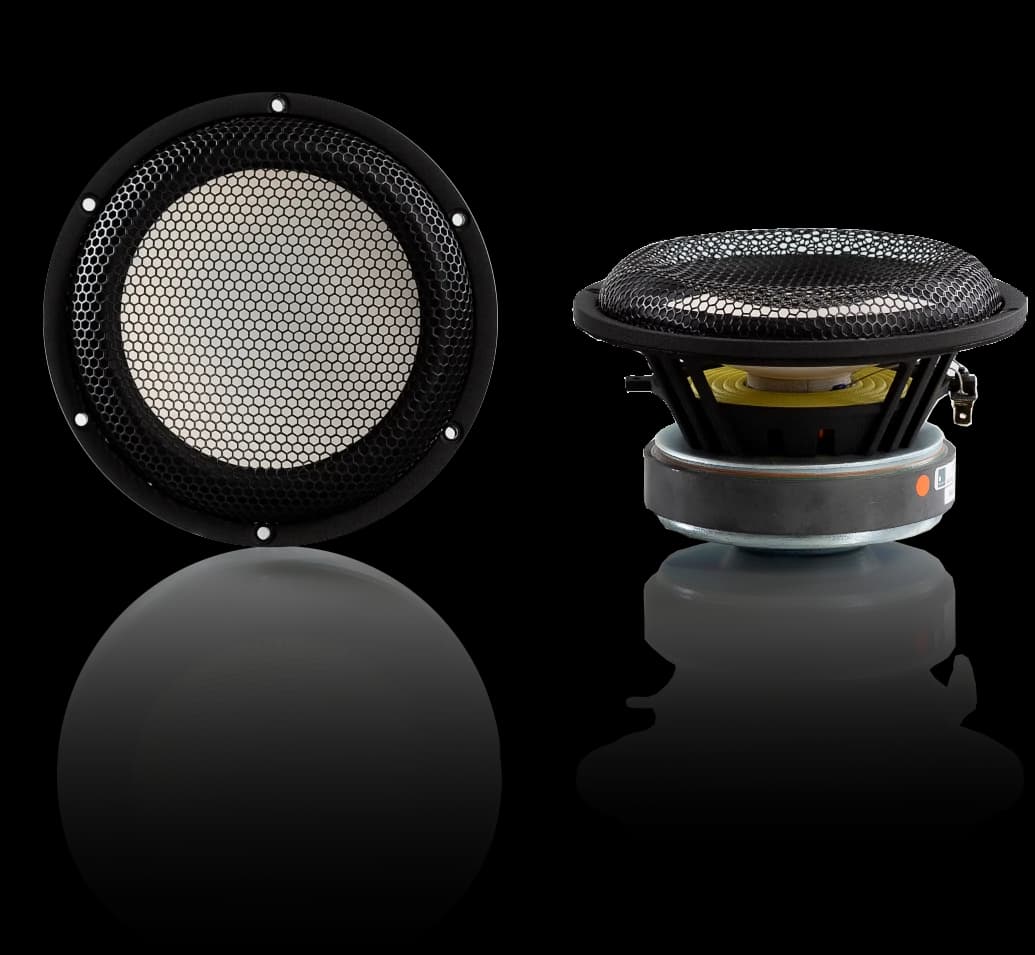

Accuton C173-6-191
Accuton C173-6-191 is a 7" 6 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 39Hz, Qts 0.34, Vas 21.6L, Xmax 5mm, sensitivity 87.3dB, plus 67cm³ Vd and 104 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £373.95.
Size
7"
Impedance
6Ω
RMS Power
120W
Sensitivity
87.3dB
EBP
104
Vented alignment
Vd
67cm³
T/S Parameters
Valid
Fs39Hz
Qts0.34
Qes0.37
Qms5.3
Vas21.6L
Re5.9Ω
Le0.72mH
BL8.8Tm
Sd133cm²
Mms20g
Xmax5.0mm
SPL87dB
Power120W
Impedance6Ω
F Low35Hz
F High2800Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026· 6Ω
Source: inc VAT
£343.63
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
willyshifi
£373.95
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

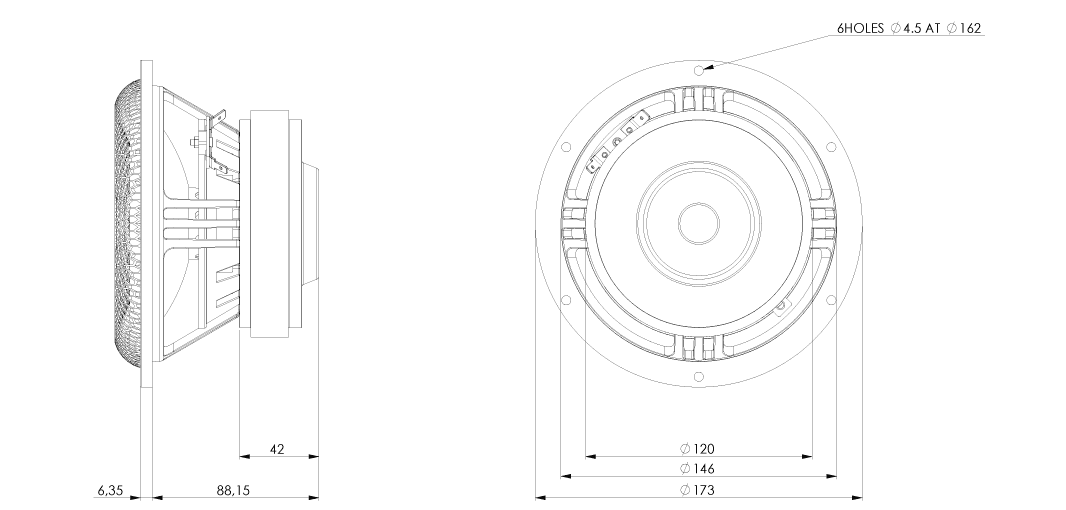

Dimensions & Physical
Diameter173.0mm
Overall Depth94.5mm
Cutout Diameter146.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Accuton
C173-6-191
7"
Best current price
£373.95
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
55%
Similarity
94% cheaper£20.70
HiVi
M6N
6"
Lower price
Xmax4.3mm-14%
Qts0.39+15%
BL7.8Tm-11%
Vas21.9L+1%
Qes0.42+14%
42%
Similarity
91% cheaper£34.02
Lavoce
WSF081.82
8"
Lower price
Xmax4.6mm-8%
Qts0.38+12%
BL11.3Tm+28%
Vas14.3L-34%
Qes0.43+16%
74%
Similarity
89% cheaper£40.67
Dayton Audio
SIG180-4
7"
Lower price
Xmax5mm0%
Qts0.38+12%
BL6.6Tm-25%
Vas23.2L+7%
Qes0.41+11%
25%
Similarity
87% cheaper£49.00
SB Audience
BIANCO-8MW250
8"
Lower price
Xmax6.5mm+30%
Qts0.4+18%
BL11Tm+25%
Vas13.8L-36%
Qes0.45+22%
52%
Similarity
86% cheaper£51.00

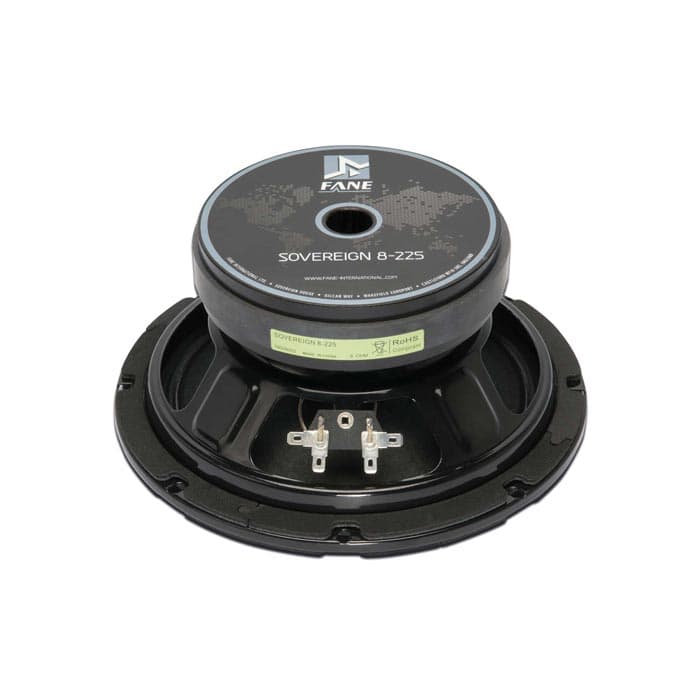

Fane
SOVEREIGN 8-225
8"
Lower price
Xmax5.5mm+10%
Qts0.38+12%
BL11Tm+25%
Vas22L+2%
Qes0.42+14%
49%
Similarity
84% cheaper£58.43
Celestion
TRUVOX 0820
8"
Lower price
Xmax5mm0%
Qts0.39+15%
BL11.5Tm+31%
Vas17.3L-20%
Qes0.42+13%
60%
Similarity
84% cheaper£58.80
Monacor
SPH-176
6.5"
Lower price
Xmax5.5mm+10%
Qts0.37+9%
BL7.7Tm-13%
Vas27L+25%
Qes0.44+19%
72%
Similarity
84% cheaper£59.16
Dayton Audio
RS180P-8
7"
Lower price
Xmax6mm+20%
Qts0.340%
BL7.2Tm-19%
Vas22L+2%
Qes0.44+19%
68%
Similarity
84% cheaper£59.16
Dayton Audio
RS180-8
7"
Lower price
Xmax6mm+20%
Qts0.31-9%
BL7.8Tm-11%
Vas24.4L+13%
Qes0.42+14%
60%
Similarity
82% cheaper£65.95
Monacor
SPH-6M
6.5"
Lower price
Xmax4mm-20%
Qts0.3-12%
BL9.7Tm+10%
Vas17.6L-19%
Qes0.35-5%
78%
Similarity
82% cheaper£66.50
PRV Audio
8MR600X-4
8"
Lower price
Xmax5.1mm+2%
Qts0.340%
BL8.9Tm+1%
Vas19.6L-9%
Qes0.36-3%
46%
Similarity
82% cheaper£66.52

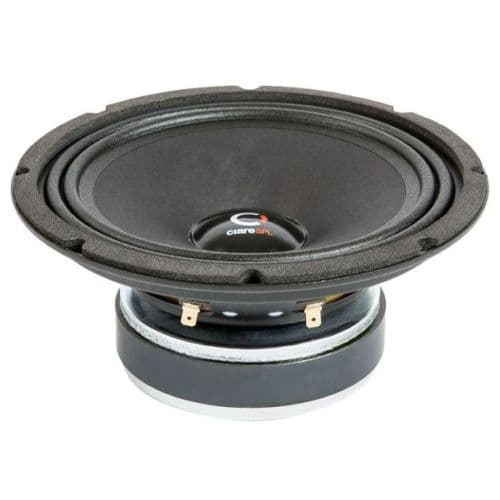

CIARE
CME200
8"
Lower price
Xmax3.5mm-30%
Qts0.37+9%
BL7.3Tm-17%
Vas18L-17%
Qes0.39+5%
