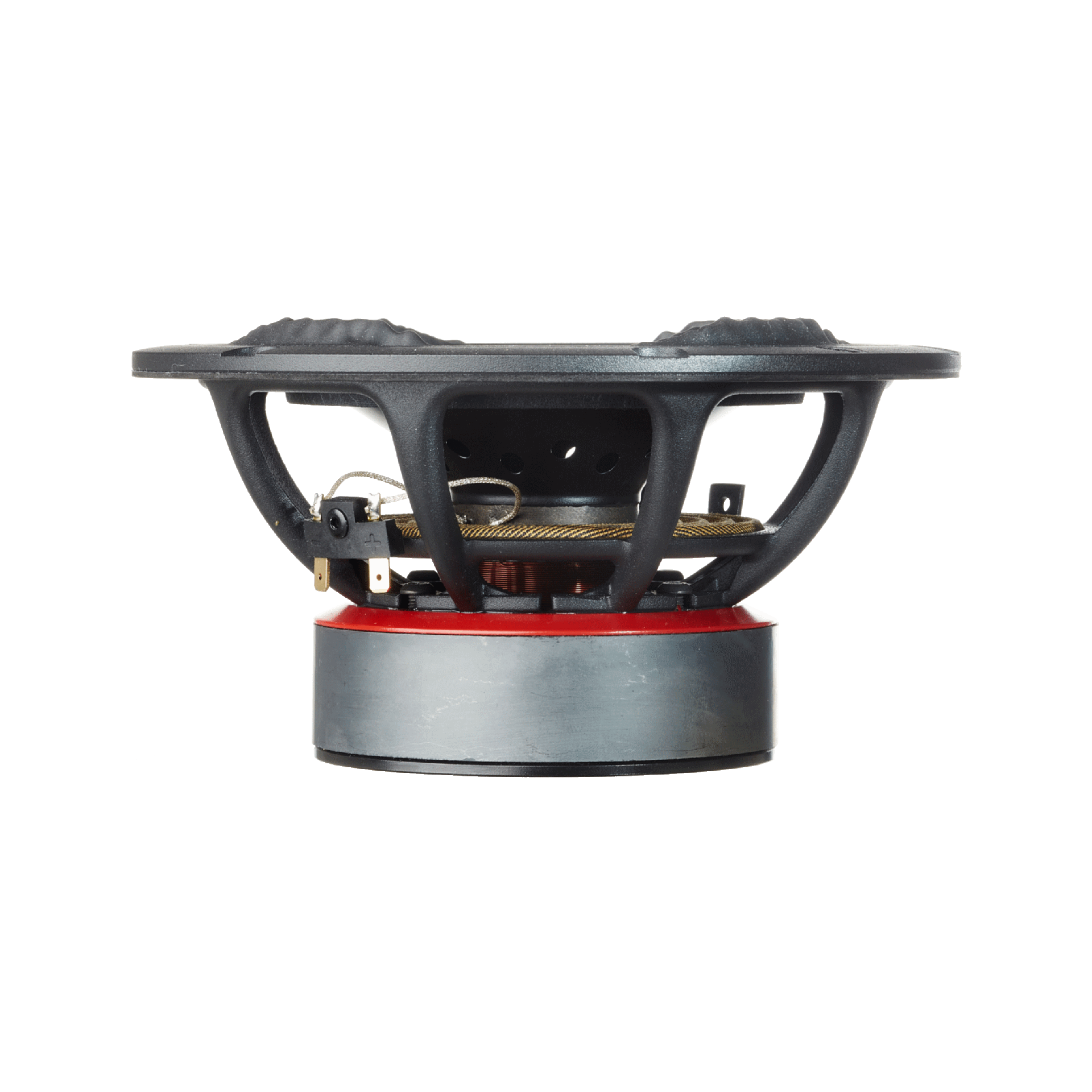

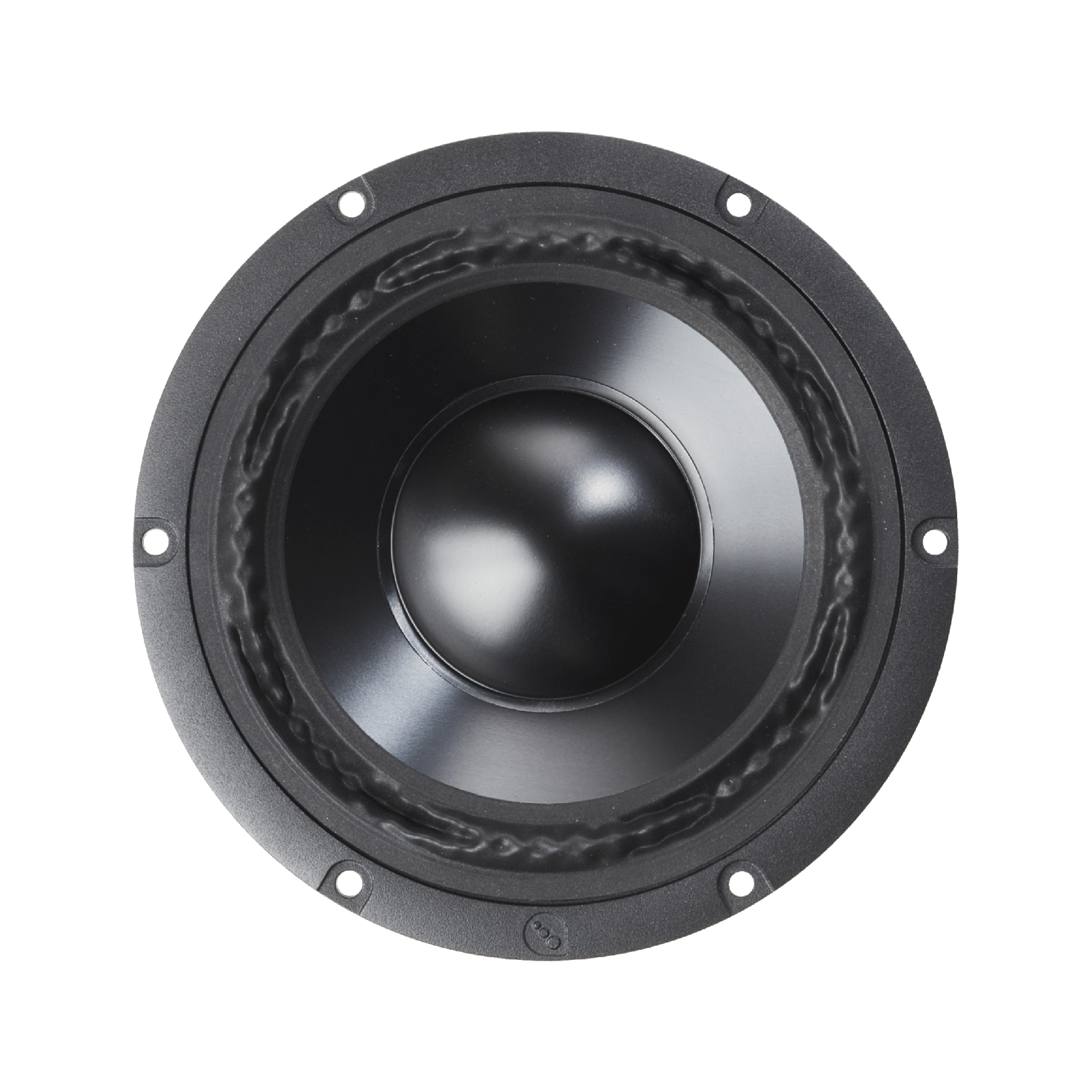

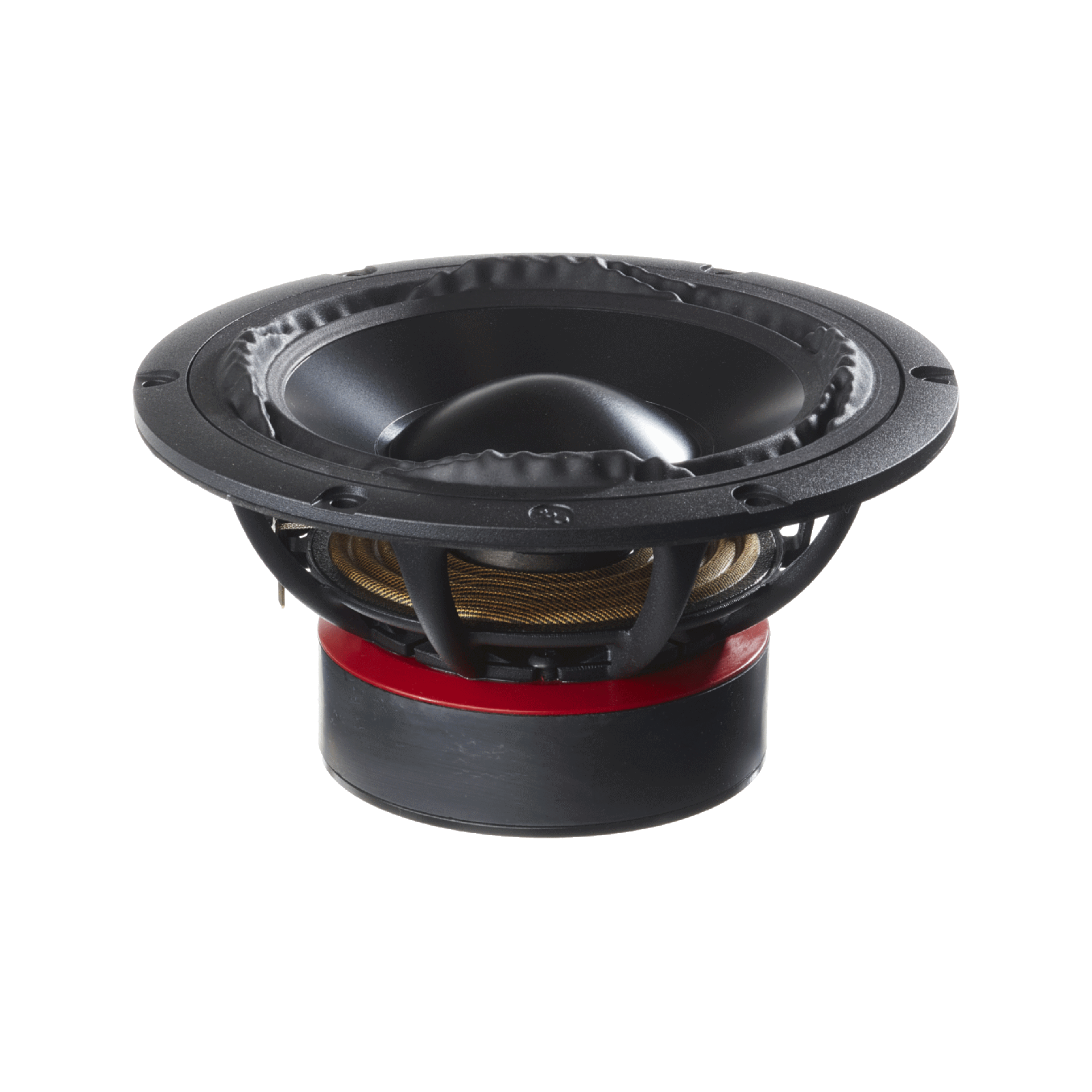

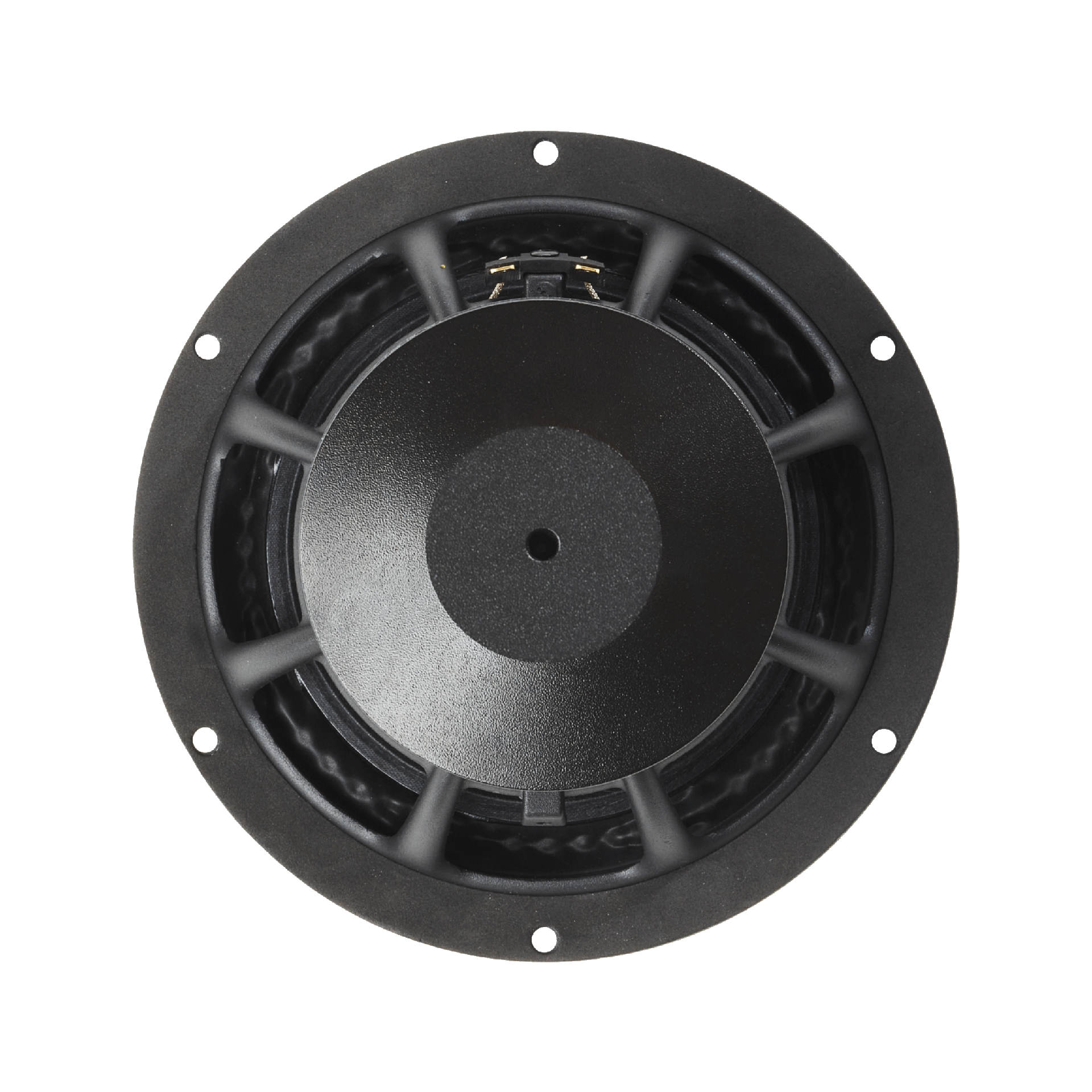

Purifi PTT6.5M08-NAA-08 8Ω
8 Ω
No current price
- Fs
- 38Hz
- Xmax
- 2.9mm
- SPL
- 88dB
- Pe
- 80W
- BL
- 9.6T·m
- Vd
- 38cm³
- Qts
- 0.31
- Vas
- 22L
Purifi PTT6.5M08-NAA-08 is a 6.5-inch 8 ohm LF driver rated at 80 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.31, Vas 21.6 L, Xmax 2.9 mm, sensitivity 87.6 dB, plus 38 cm³ Vd and 115 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.31
- Qes
- 0.33
- Qms
- 6.7
- Vas
- 21.6L
- Re
- 6.2Ω
- Le
- 0.36mH
Motor and cone
- BL
- 9.6T·m
- Sd
- 133cm²
- Mms
- 21g
- Xmax
- 2.9mm
- Vd †
- 38cm³
- Voice coil
- 39mm
Power and response
- Sensitivity †
- 87.6dB
- Manufacturer sensitivity
- 87.9dB
- Power
- 80W
- Impedance
- 8Ω
- Min. impedance
- 6.7Ω
- Crossover
- 200Hz
- EBP †
- 115 · Leans vented
Size and mounting
- Diameter
- 176mm
- Cutout
- 148mm
- Bolt circle
- 166mm
- Weight
- 1.8kg
Other published values
- Cms
- 0.87mm/N
- Rms
- 0.73kg/s
- Xmech
- 14.5
- Power Peak
- 200
Other dimensions
- Mounting Depth
- 85.2
† Calculated by bits from the published values
What this validation status means
Everything else Purifi lists
MF · Primary · 6.5″
- BL
- 9.6T·m
- Fs
- 38Hz
- Le
- 0.36mH
- Re
- 6.2Ω
- Sd
- 133cm²
- Cms
- 0.87mm/N
- Mms
- 21g
- Qes
- 0.33
- Qms
- 6.7
- Qts
- 0.31
- Rms
- 0.73kg/s
- SPL
- 87.6dB
- Vas
- 21.6L
- Xmax
- 2.9mm
- Xmech
- 14.5
- Power
- 80W
- Impedance
- 8Ω
- Power Peak
- 200
- Sensitivity
- 87.9dB
- Calculated sensitivity †
- 87.6dB
- Manufacturer sensitivity
- 87.9dB
- Min. impedance
- 6.7Ω
- Voice coil
- 39mm
- Crossover
- 200Hz
- Weight
- 1.8kg
- Diameter
- 176mm
- Mounting Depth
- 85.2
- Cutout
- 148mm
- Bolt circle
- 166mm
