Overview
LF DriverNTR06 series
Celestion

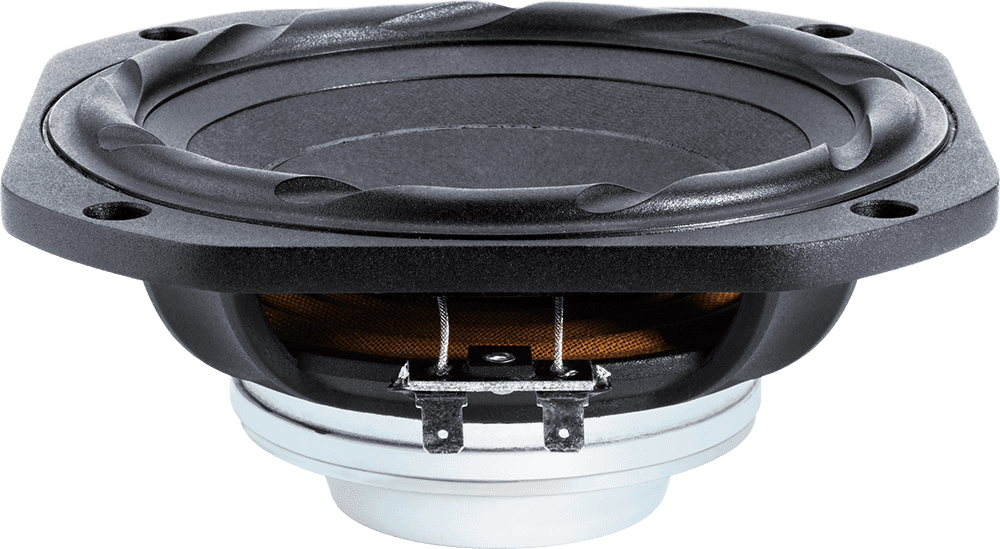

Celestion NTR06-17X
Celestion NTR06-17X is a 6.5" 8 ohm LF driver rated at 150W RMS. The validated T/S data includes Fs 60Hz, Qts 0.32, Vas 13.2L, Xmax 4.5mm, sensitivity 91.4dB, plus 69cm³ Vd and 180 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6.5"
Impedance
8Ω
RMS Power
150W
Sensitivity
91.4dB
93.5dBmanufacturer; using T/S-derived value (2.1dB delta).
EBP
180
Vented alignment
Vd
69cm³

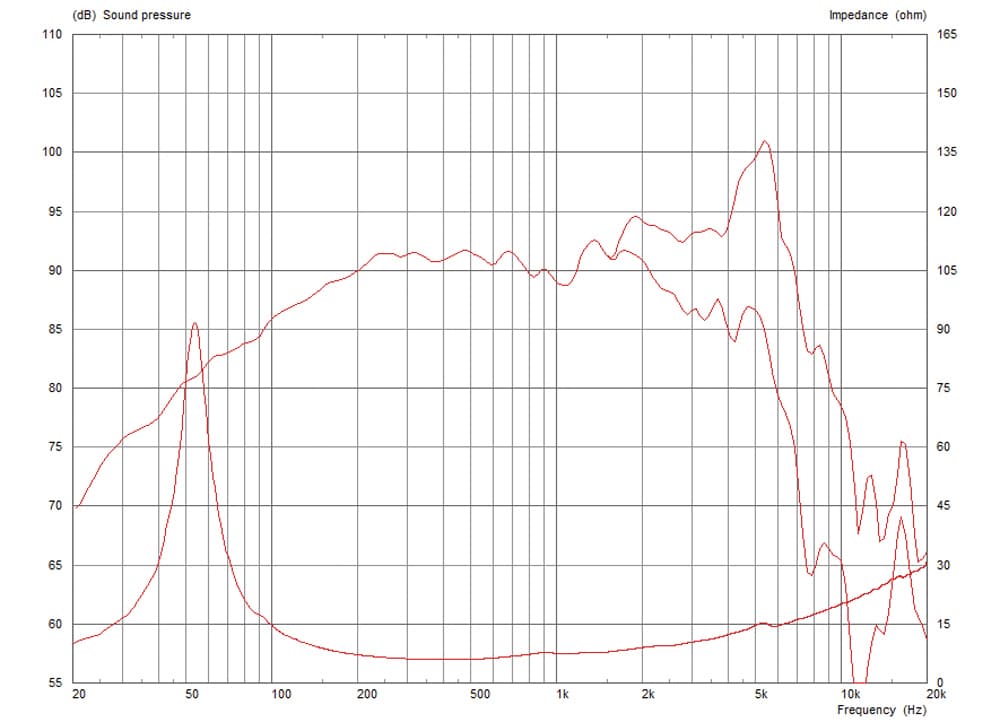

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence163 selected pixels of 325
T/S Parameters
Valid
Fs60Hz
Qts0.32
Qes0.34
Qms7.2
Vas13.2L
Re5.4Ω
Le0.28mH
BL10.4Tm
Sd154cm²
Mms18g
Xmax4.5mm
SPL91dB
Power150W
Impedance8Ω
Voice Coil44mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.2kg
Diameter189.0mm
Overall Depth73.0mm
Cutout Diameter145.0mm
Bolt Circle Diameter170.0mm
