Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Overview
LF Driver
Eighteen Sound
Eighteen Sound 6ND430
Eighteen Sound 6ND430 is a 6.5" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 61Hz, Qts 0.27, Vas 12.6L, Xmax 5mm, sensitivity 92.1dB, plus 67cm³ Vd and 218 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £110.59.
Size
6.5"
Impedance
8Ω
RMS Power
200W
Sensitivity
92.1dB
EBP
218
Vented alignment
Vd
67cm³
Datasheet traces

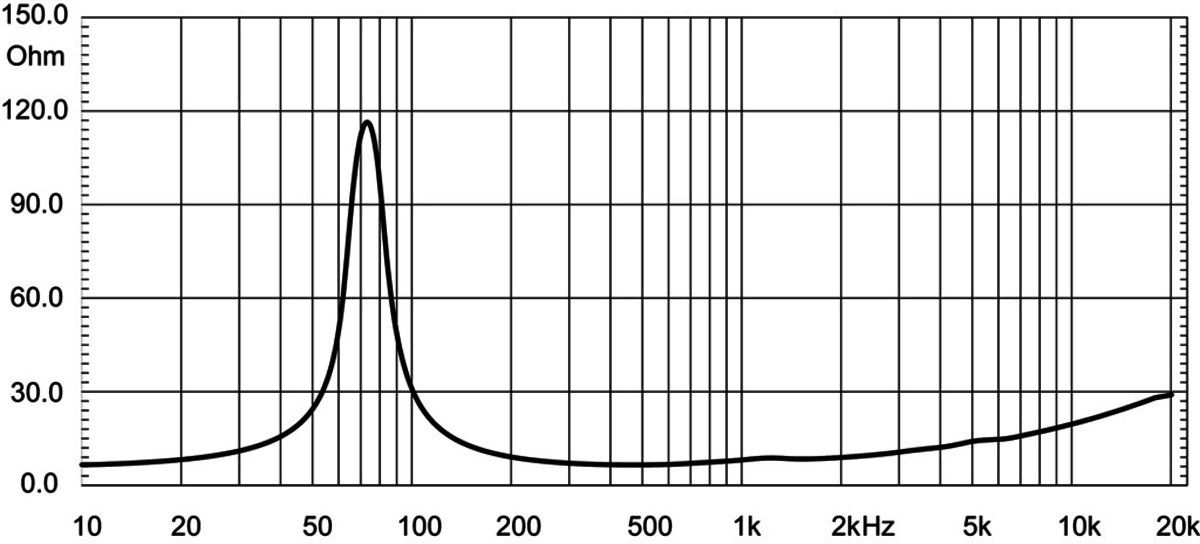

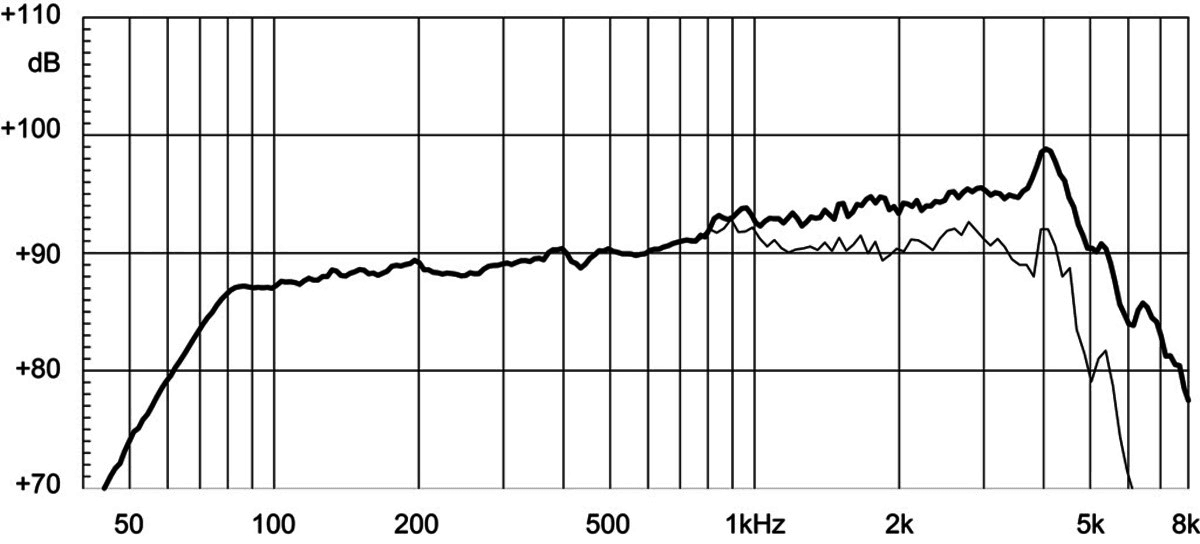

Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,538 selected pixels of 1,538
T/S Parameters
Valid
Fs61Hz
Qts0.27
Qes0.28
Qms6.5
Vas12.6L
Re5.5Ω
Le0.28mH
BL10.0Tm
Sd133cm²
Mms13g
Xmax5.0mm
SPL92dB
Power200W
Power Nominal200W
Impedance8Ω
F Low63Hz
F High5500Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£110.59
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.3kg
Diameter162.0mm
Overall Depth73.0mm
Cutout Diameter148.0mm
Bolt Circle Diameter170.0mm
