LF DriverSB17 series
SB Acoustics

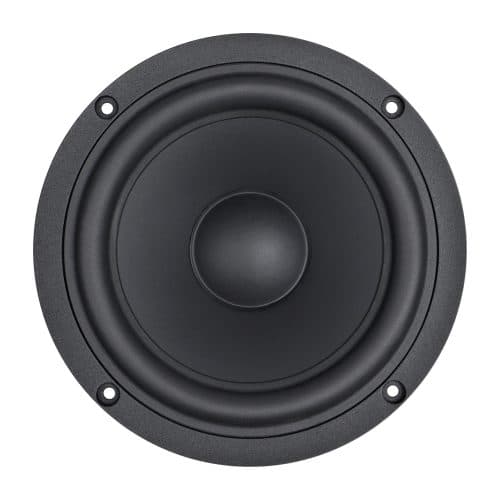

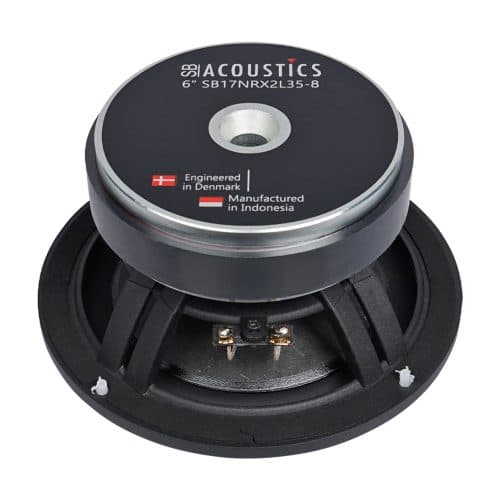

SB Acoustics SB17NRX2L35-8
SB Acoustics SB17NRX2L35-8 is a 6" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 38Hz, Qts 0.28, Vas 26.1L, Xmax 9.6mm, sensitivity 88.7dB, plus 113cm³ Vd and 126 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
6"
Impedance
8Ω
RMS Power
50W
Sensitivity
88.7dB
EBP
126
Vented alignment
Vd
113cm³

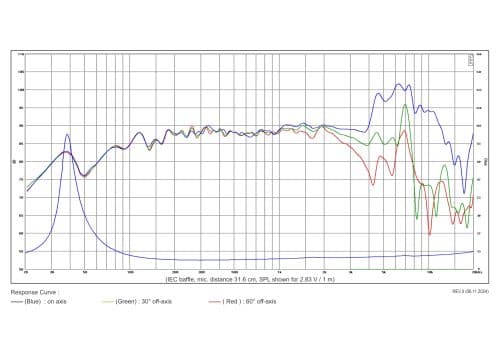

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence2,245 selected pixels of 2,997

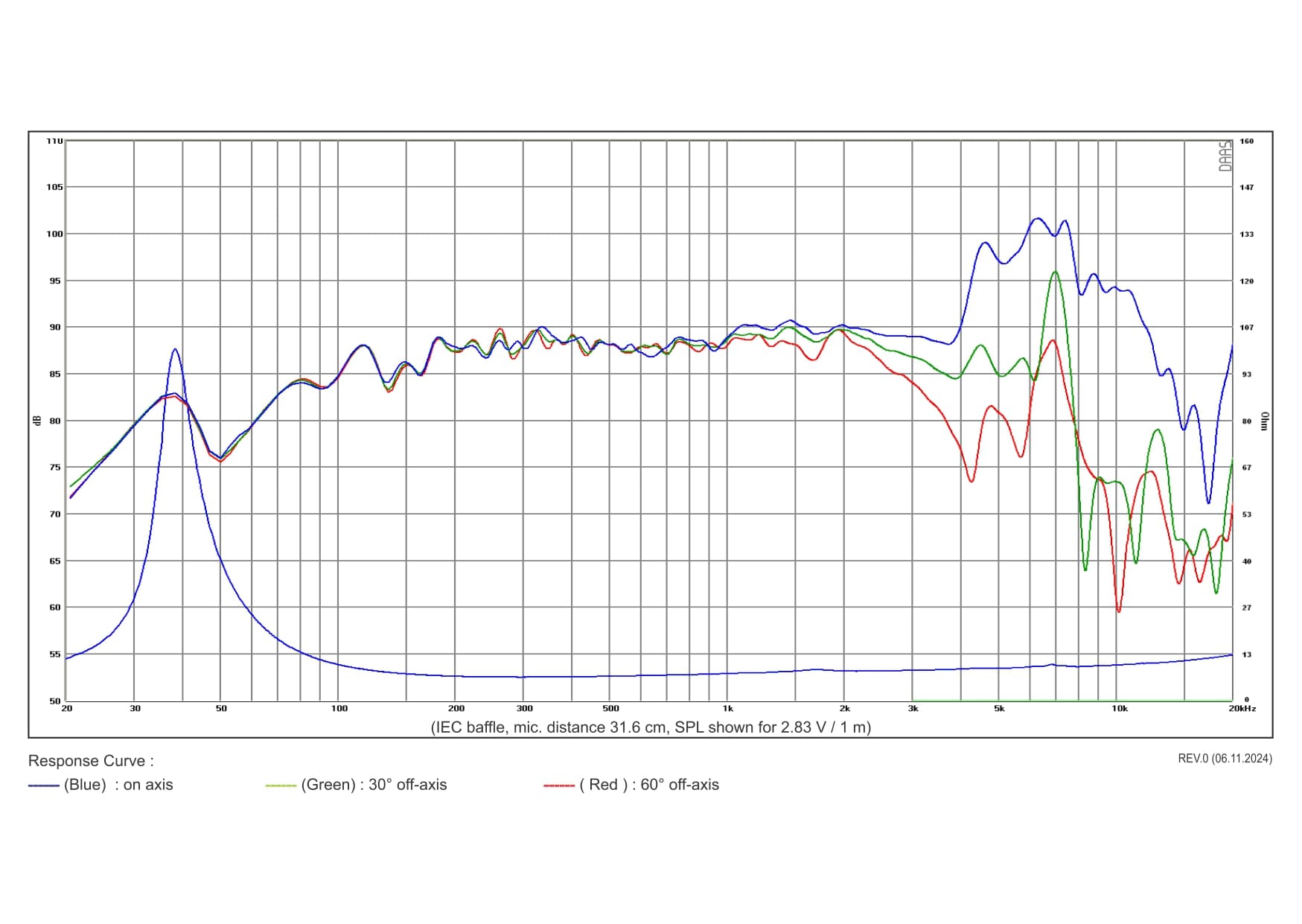

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs38Hz
Qts0.28
Qes0.30
Qms4.5
Vas26.1L
Re5.7Ω
Le0.16mH
BL7.8Tm
Sd118cm²
Mms13g
Xmax9.6mm
SPL89dB
Power50W
Impedance8Ω
Voice Coil36mm
Flux Density1.10T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.3kg
