Overview
LF DriverSB17 series
SB Acoustics

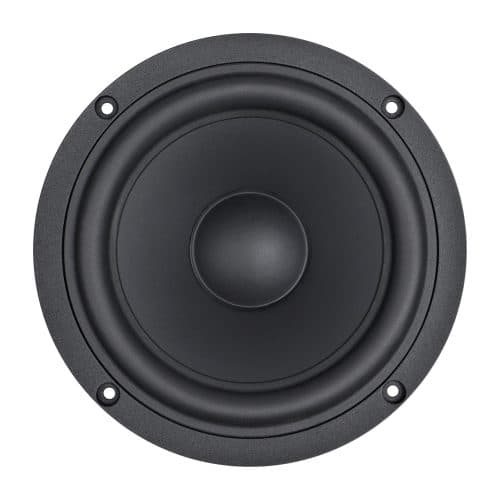

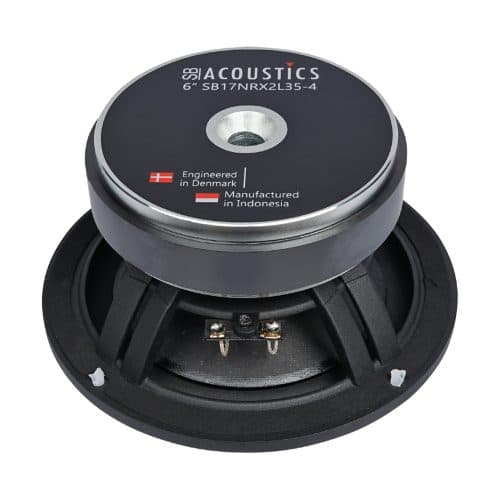

SB Acoustics SB17NRX2L35-4
SB Acoustics SB17NRX2L35-4 is a 6" 4 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 41Hz, Qts 0.25, Vas 21.9L, Xmax 9.6mm, sensitivity 89.7dB, plus 113cm³ Vd and 158 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £59.85.
Size
6"
Impedance
4Ω
RMS Power
60W
Sensitivity
89.7dB
92.0dBmanufacturer; using T/S-derived value (2.3dB delta).
EBP
158
Vented alignment
Vd
113cm³

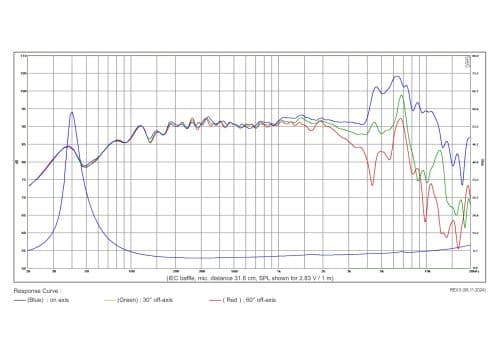

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,905 selected pixels of 2,610 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,224 selected pixels of 3,137

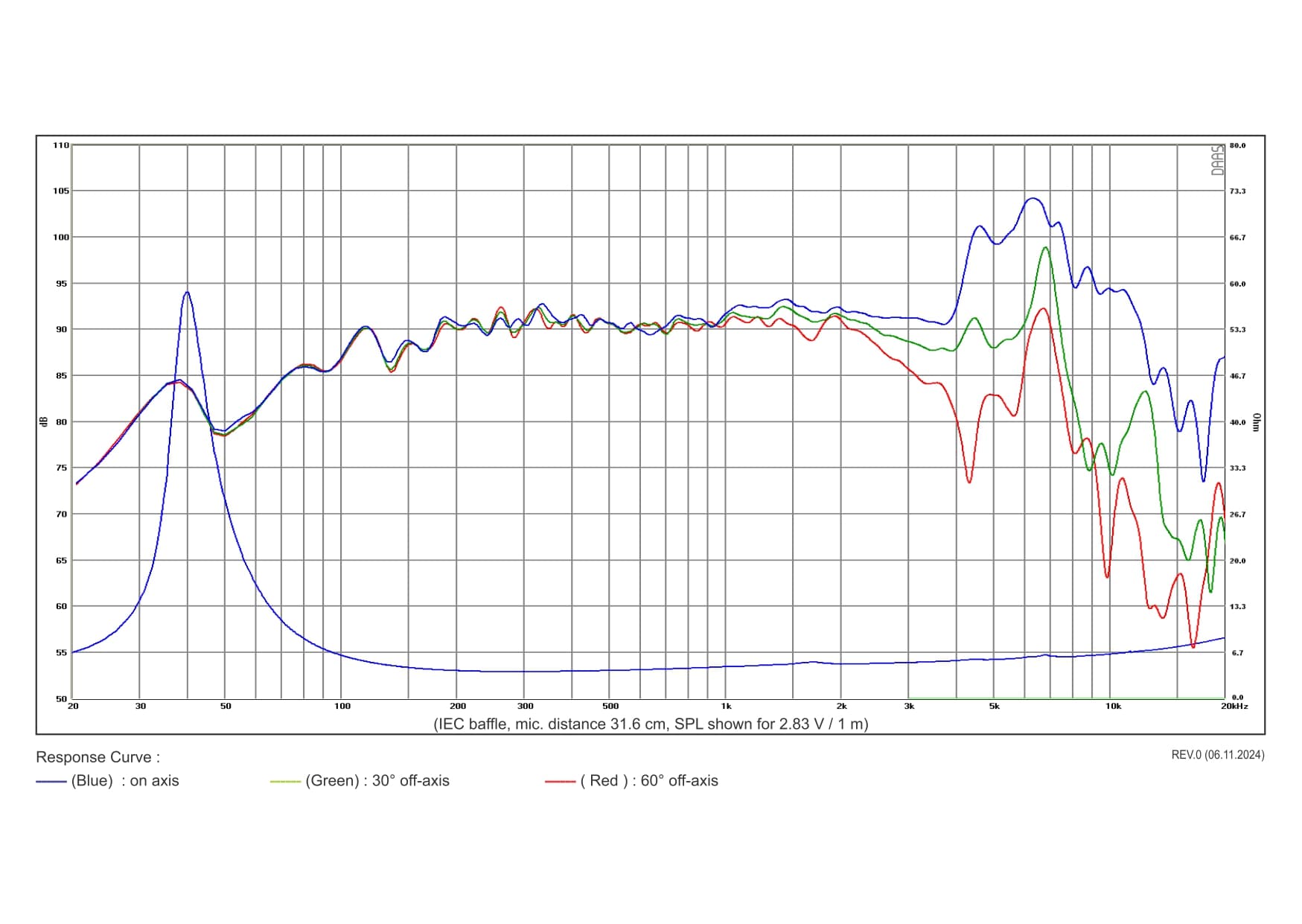

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs41Hz
Qts0.25
Qes0.26
Qms5.0
Vas21.9L
Re3.1Ω
Le0.14mH
BL6.5Tm
Sd118cm²
Mms14g
Xmax9.6mm
SPL90dB
Power60W
Impedance4Ω
Voice Coil36mm
Flux Density1.10T
Pricing & availability
Price definitionsPrice movement
Other offers
1 vendorsoundimports
Updated 11 Sept 2026· 4Ω
Source: inc VAT
£72.99
inc VAT
Out of stock
Best current price
Updated 11 Sept 2026
leanaudio
£59.85
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.3kg
