LF DriverIlluminator series
Scanspeak

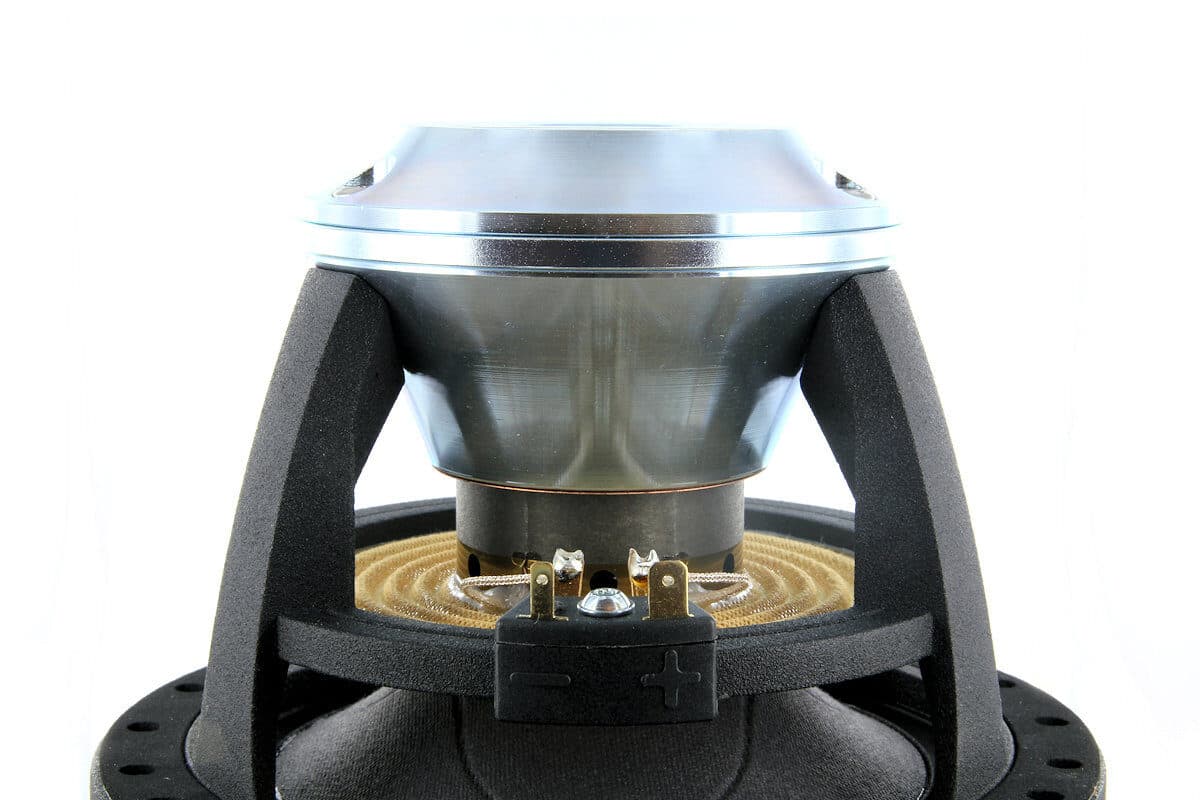

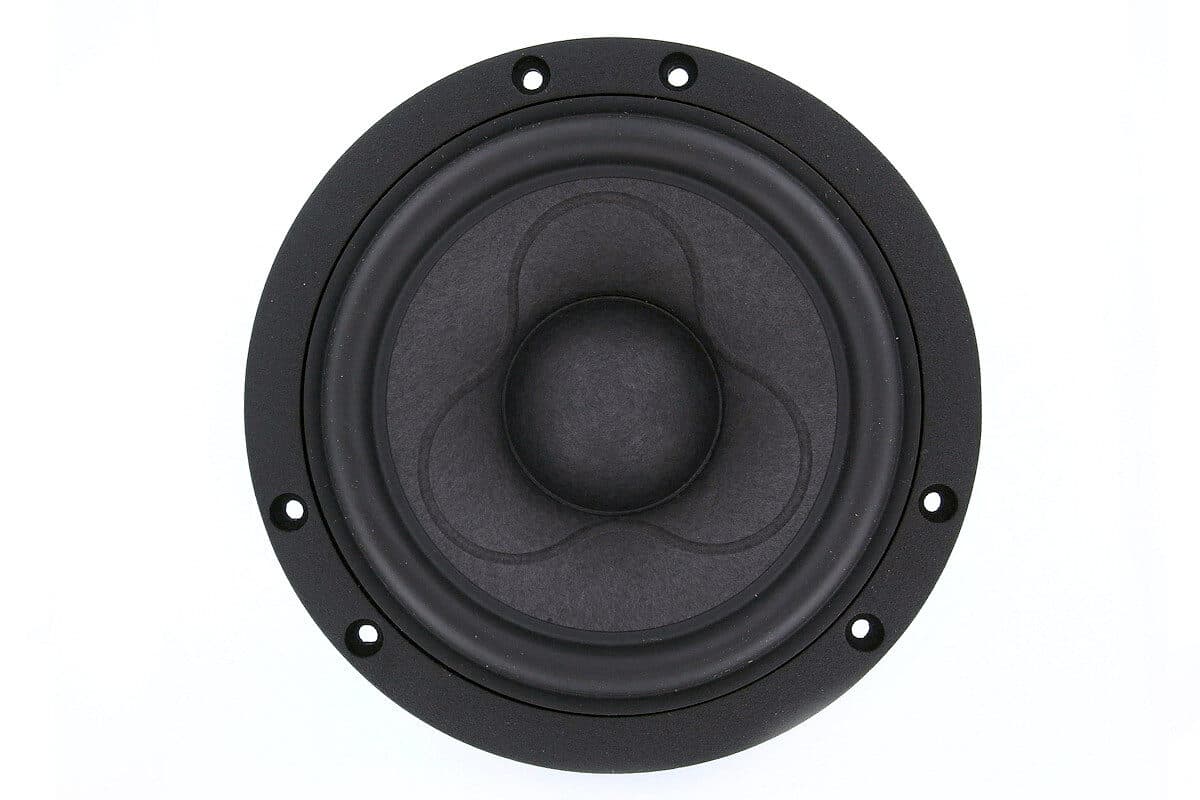

Scanspeak 15WU/4741T00
Scanspeak 15WU/4741T00 is a 6" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 34Hz, Qts 0.23, Vas 20L, Xmax 9mm, sensitivity 87dB, plus 83cm³ Vd and 136 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £335.95.
Size
6"
Impedance
4Ω
RMS Power
80W
Sensitivity
87.0dB
86.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
136
Vented alignment
Vd
83cm³
T/S Parameters
Valid
Fs34Hz
Qts0.23
Qes0.25
Qms3.5
Vas20.0L
Re3.2Ω
Le0.50mH
BL6.0Tm
Sd92cm²
Mms13g
Xmax9.0mm
SPL87dB
Power80W
Impedance4Ω
Min Impedance4.6Ω
Voice Coil42mm
Pricing & availability
Price definitionsPrice movement
Best current price
£335.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Diameter150.0mm
