Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespCIARE CW162 4Ω
LF DriverMedia
Overview
LF DriverCW series
CIARE
CIARE CW162

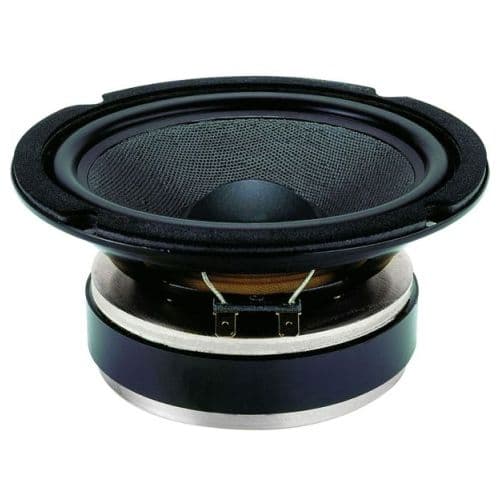

CIARE CW162 is a 6.5" 4 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 40Hz, Qts 0.21, Vas 26L, Xmax 7mm, sensitivity 90.6dB, plus 93cm³ Vd and 174 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £47.61.
Size
6.5"
Impedance
4Ω
RMS Power
200W
Sensitivity
90.6dB
EBP
174
Vented alignment
Vd
93cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,519 selected pixels of 1,709
T/S Parameters
Valid
Fs40Hz
Qts0.21
Qes0.23
Qms2.2
Vas26.0L
Re3.0Ω
Le0.57mH
BL7.4Tm
Sd133cm²
Mms18g
Xmax7.0mm
SPL91dB
Power200W
Power Nominal90W
Impedance4Ω
F Low55Hz
F High55Hz
Voice Coil38mm
Pricing & availability
Price definitionsPrice movement
Best current price
Updated 11 Sept 2026
leanaudio
£47.61
inc VAT·2 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter165.5mm
Overall Depth80.5mm
Cutout Diameter142.0mm
Bolt Circle Diameter156.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
CIARE
CW162
6.5"
Best current price
£47.61
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
8 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
Image unavailable
47%
Similarity
228% more£156.07
Wavecor
WF182BD13
7"
Higher price
Xmax5.5mm-21%
Qts0.26+24%
BL6.9Tm-6%
Vas20.8L-20%
Qes0.27+17%
47%
Similarity
261% more£171.79
Volt
BM165.1
6.5"
Higher price
Xmax6.3mm-10%
Qts0.24+14%
BL9.8Tm+33%
Vas40.8L+57%
Qes0.26+13%
50%
Similarity
622% more£343.95

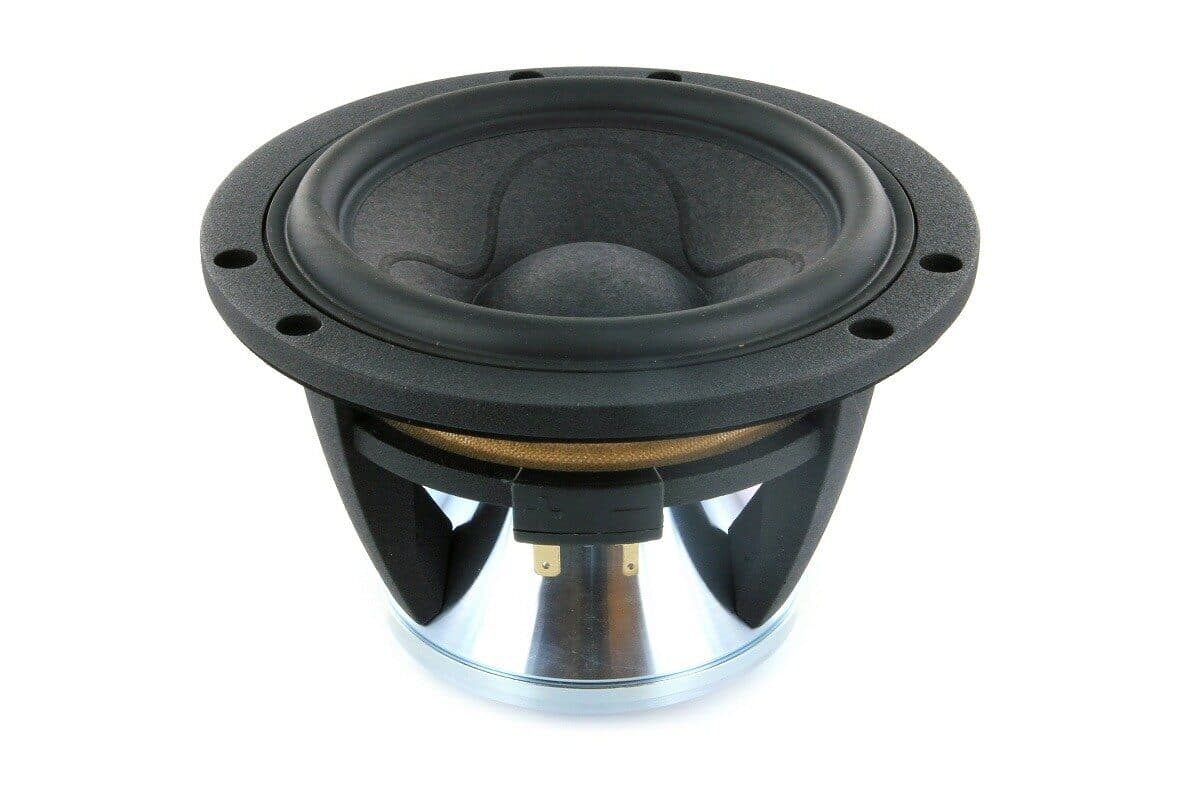

Scanspeak
15WU/4741T00
6"
Higher price
Xmax9mm+29%
Qts0.23+10%
BL6Tm-19%
Vas20L-23%
Qes0.25+9%
42%
Similarity
622% more£343.95
Scanspeak
15WU/8741T00
6"
Higher price
Xmax9mm+29%
Qts0.26+24%
BL7.5Tm+2%
Vas19.9L-23%
Qes0.28+22%
61%
Similarity
Purifi
PTT6.5W04-NFA-06
6.5"
Xmax5.9mm-16%
Qts0.26+24%
BL7.6Tm+3%
Vas28.3L+9%
Qes0.28+22%
Image unavailable
55%
Similarity
Wavecor
WF182BD14
7"
Xmax5.5mm-21%
Qts0.25+19%
BL6.9Tm-6%
Vas23L-12%
Qes0.26+13%
50%
Similarity
Wavecor
WF182BD04
7"
Xmax5.5mm-21%
Qts0.25+19%
BL6.8Tm-8%
Vas32.4L+25%
Qes0.26+13%
35%
Similarity
SEAS
E0017-08S W18EX001
7"
Xmax5mm-29%
Qts0.26+24%
BL8.4Tm+14%
Vas30L+15%
Qes0.3+30%
