LF DriverMW19 series
SB Acoustics
SB Acoustics MW19PNW-4
SB Acoustics MW19PNW-4 is a 7" 4 ohm LF driver rated at 70W RMS. The validated T/S data includes Fs 29Hz, Qts 0.24, Vas 61L, Xmax 13.6mm, sensitivity 89.6dB, plus 215cm³ Vd and 112 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £168.40.
Size
7"
Impedance
4Ω
RMS Power
70W
Sensitivity
89.6dB
91.5dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
112
Vented alignment
Vd
215cm³

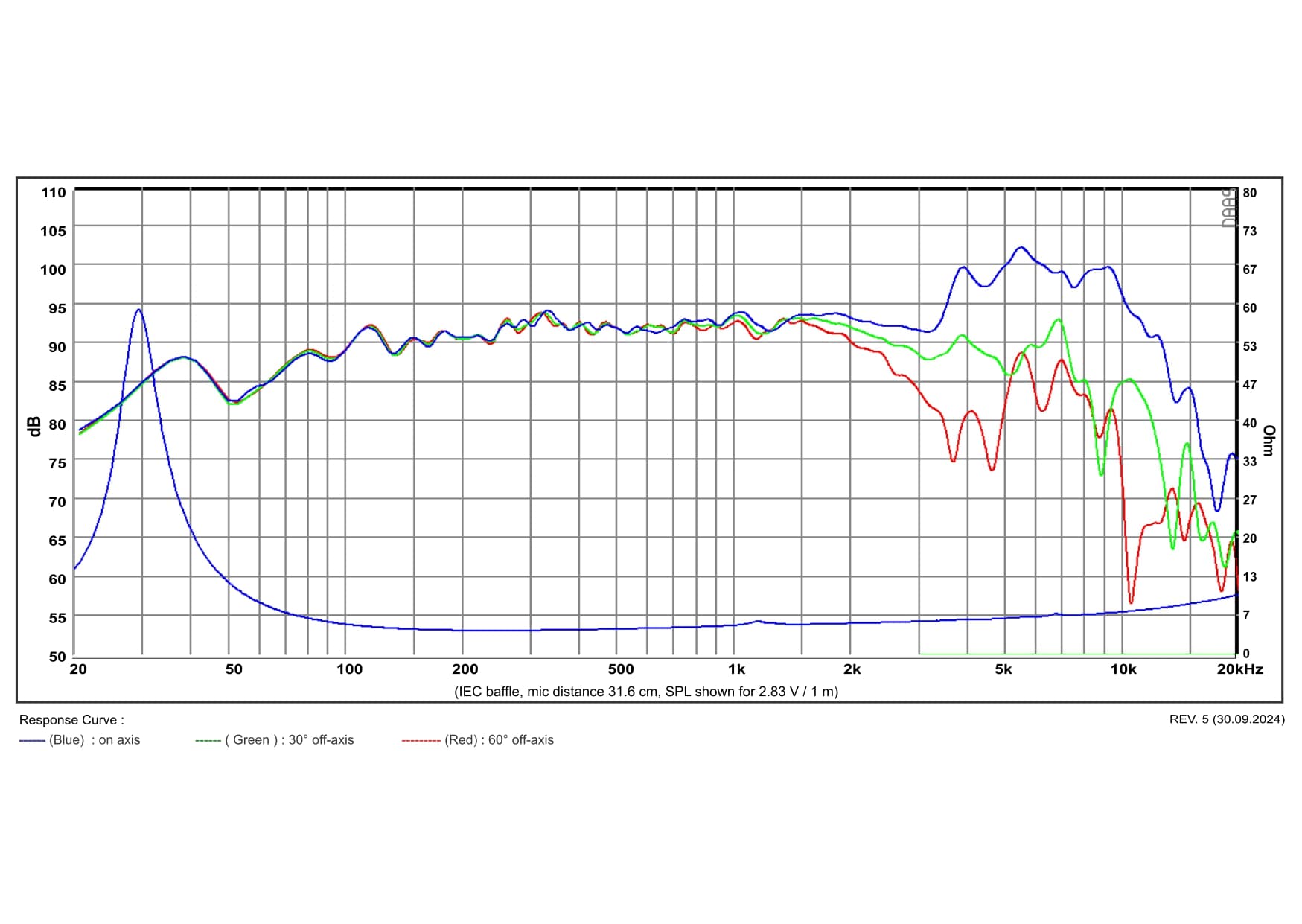

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees194 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,850 selected pixels of 2,730 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
194 plotted pointsMedium confidence761 selected pixels of 2,705
T/S Parameters
Valid
Fs29Hz
Qts0.24
Qes0.26
Qms4.5
Vas61.0L
Re3.4Ω
Le0.14mH
BL6.5Tm
Sd158cm²
Mms17g
Xmax13.6mm
SPL90dB
Power70W
Impedance4Ω
Voice Coil39mm
Flux Density1.10T
Pricing & availability
Price definitionsPrice movement
Best current price
£168.40
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
