Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespAudio Technology 18 H 52 06 13 SDKA-LR 8Ω
LF DriverMedia
Overview
LF DriverC-Quenze series
Audio Technology
Audio Technology 18 H 52 06 13 SDKA-LR
Audio Technology 18 H 52 06 13 SDKA-LR is a 7" 8 ohm LF driver rated at 120W RMS. The validated T/S data includes Fs 32Hz, Qts 0.25, Vas 50L, Xmax 4mm, sensitivity 89.9dB, plus 55cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
7"
Impedance
8Ω
RMS Power
120W
Sensitivity
89.9dB
EBP
119
Vented alignment
Vd
55cm³
T/S Parameters
Valid
Fs32Hz
Qts0.25
Qes0.27
Qms4.9
Vas50.0L
Re5.4Ω
Le0.09mH
BL7.4Tm
Sd137cm²
Mms13g
Xmax4.0mm
SPL90dB
Power120W
Impedance8Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Audio Technology
18 H 52 06 13 SDKA-LR
7"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
7 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
73%
Similarity

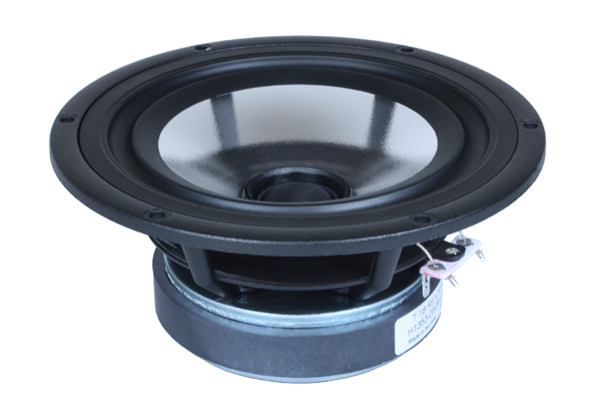

SEAS
H1353-08/06 T18REX/XFC
7"
Xmax3mm-25%
Qts0.24-4%
BL7.8Tm+5%
Vas42L-16%
Qes0.29+7%
61%
Similarity
£144.60

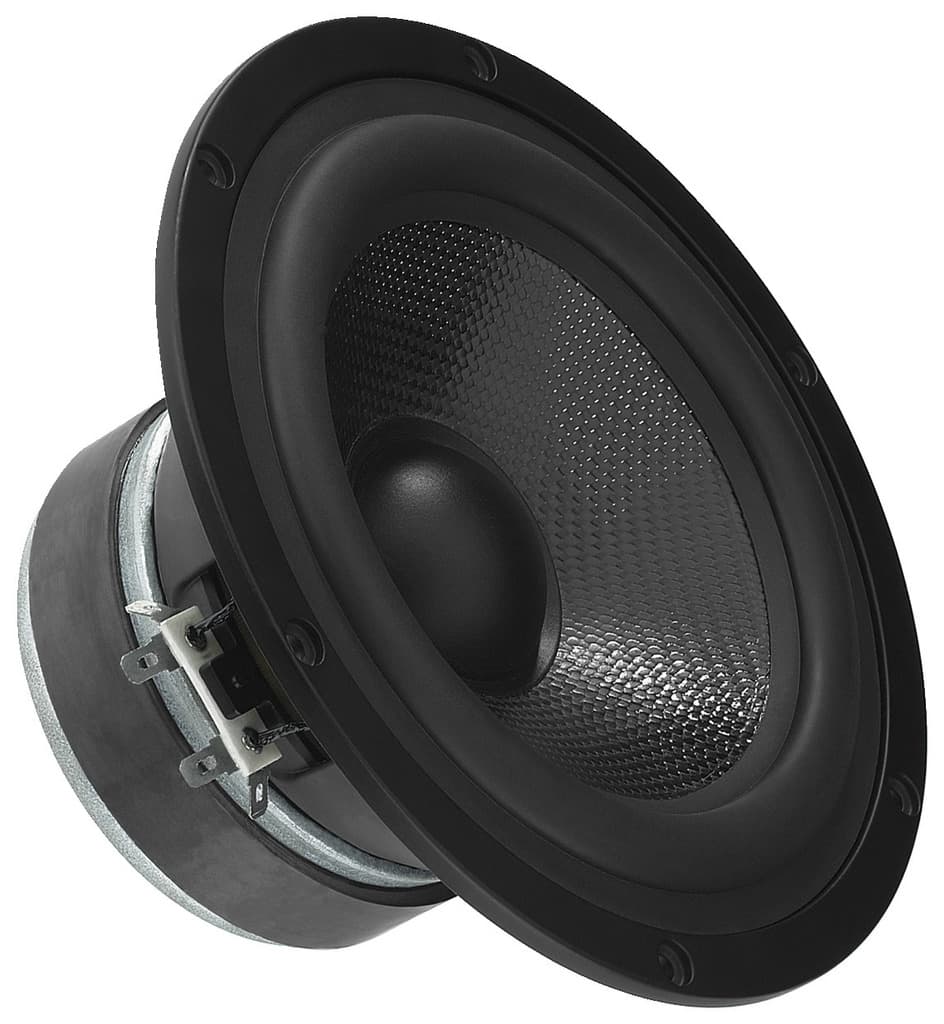

Monacor
SPH-170C
6.5"
Xmax4mm0%
Qts0.26+4%
BL9.4Tm+28%
Vas24L-52%
Qes0.270%
61%
Similarity
SEAS
E0017-08S W18EX001
7"
Xmax5mm+25%
Qts0.26+4%
BL8.4Tm+14%
Vas30L-40%
Qes0.3+11%
52%
Similarity
ETON
7-612/C8/32 RP
7"
Xmax4.5mm+13%
Qts0.3+20%
BL8.6Tm+16%
Vas28L-44%
Qes0.32+19%
49%
Similarity
Purifi
PTT6.5M04-NAA-08
6.5"
Xmax2.9mm-28%
Qts0.27+8%
BL8.2Tm+11%
Vas22.7L-55%
Qes0.28+4%
44%
Similarity
HiVi
SS8IIR
8"
Xmax4.8mm+20%
Qts0.28+12%
BL9.2Tm+24%
Vas59.6L+19%
Qes0.29+7%
21%
Similarity
Purifi
PTT6.5M08-NAA-08
6.5"
Xmax2.9mm-28%
Qts0.31+24%
BL9.6Tm+30%
Vas21.6L-57%
Qes0.33+22%
