Eighteen Sound 8NCX750 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Eighteen Sound

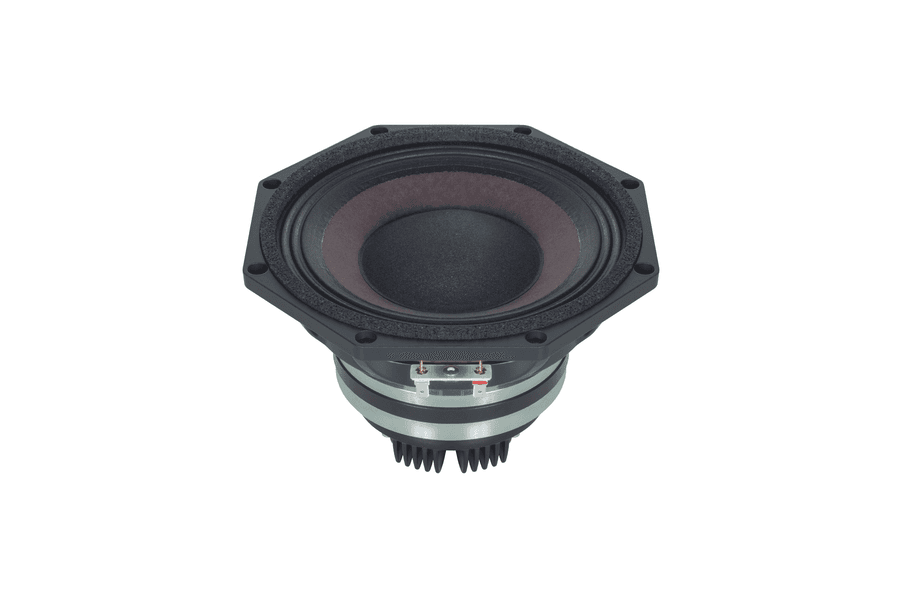

Eighteen Sound 8NCX750
Eighteen Sound 8NCX750 is a 8" 8 ohm LF driver. The validated T/S data includes Fs 111Hz, Qts 0.26, Vas 5.2L, Xmax 4mm, sensitivity 96.2dB, plus 91cm³ Vd and 411 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
Sensitivity
96.2dB
EBP
411
Vented alignment
Vd
91cm³

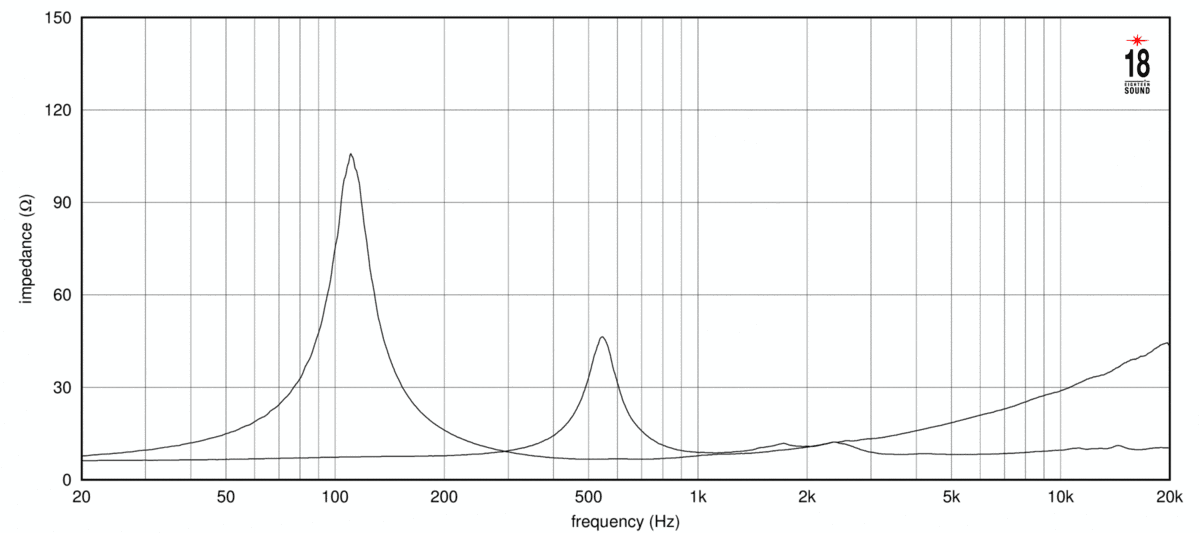

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response227 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1

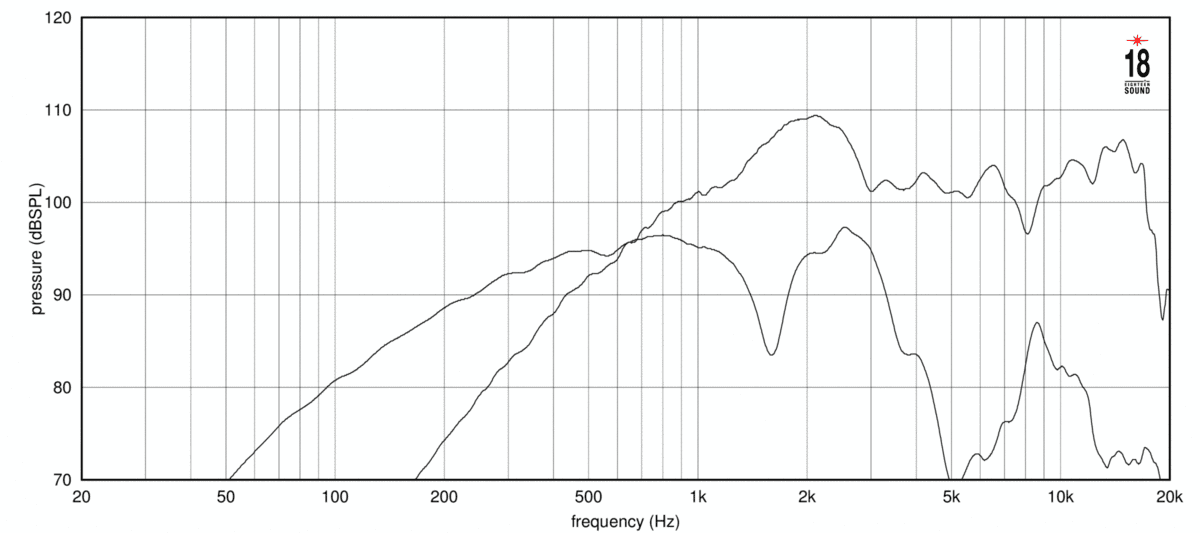

frequency response
Frequency response
227 plotted pointsMedium confidence845 selected pixels of 905
T/S Parameters
Valid
Fs111Hz
Qts0.26
Qes0.27
Qms5.0
Vas5.2L
Re5.4Ω
Le0.52mH
BL20.0Tm
Sd227cm²
Mms29g
Xmax4.0mm
SPL96dB
Impedance8Ω
F Low90Hz
F High1600Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter210.0mm
Overall Depth132.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter186.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
8NCX750
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
1 match
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
62%
Similarity
P.Audio
8NX-65MB
8"
Xmax3.8mm-6%
Qts0.29+12%
BL18Tm-10%
Vas8.2L+58%
Qes0.31+15%
