Overview
LF Driver
Sica
Sica 8 K 3 PL
Sica 8 K 3 PL is a 8" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 68Hz, Qts 0.25, Vas 12.2L, Xmax 5mm, sensitivity 93.6dB, plus 107cm³ Vd and 252 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
400W
Sensitivity
93.6dB
95.1dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
252
Vented alignment
Vd
107cm³
T/S Parameters
Valid
Fs68Hz
Qts0.25
Qes0.27
Qms3.9
Vas12.2L
Re5.6Ω
Le0.37mH
BL16.1Tm
Sd214cm²
Mms29g
Xmax5.0mm
SPL94dB
Power400W
Impedance8Ω
Voice Coil75mm
Flux Density1.20T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.4kg
Diameter210.0mm
Overall Depth93.0mm
Cutout Diameter184.0mm
Bolt Circle Diameter196.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
8 K 3 PL
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
94%
Similarity
£99.92
RCF
MB8N251
8"
Xmax5mm0%
Qts0.250%
BL15.2Tm-6%
Vas13L+7%
Qes0.26-4%
89%
Similarity
B&C
8CLA64
8"
Xmax5.3mm+6%
Qts0.24-4%
BL16.4Tm+2%
Vas12.5L+2%
Qes0.25-7%
88%
Similarity
Oberton
8NB201
8"
Xmax5.3mm+5%
Qts0.24-2%
BL14.4Tm-10%
Vas12.5L+3%
Qes0.26-6%
84%
Similarity
Oberton
8NMB250v4
8"
Xmax4.5mm-10%
Qts0.26+3%
BL14.3Tm-11%
Vas10.9L-11%
Qes0.270%
81%
Similarity
£123.00
B&C
8NDL64
8"
Xmax4.5mm-10%
Qts0.250%
BL17.5Tm+9%
Vas9.6L-21%
Qes0.25-7%
79%
Similarity
£138.53
Eighteen Sound
8NW650
8"
Xmax5.5mm+10%
Qts0.250%
BL15.2Tm-6%
Vas17.8L+46%
Qes0.270%
72%
Similarity
£90.56
Beyma
8WR300
8"
Xmax6mm+20%
Qts0.27+8%
BL15.5Tm-4%
Vas15L+23%
Qes0.29+7%
70%
Similarity
£219.76
FaitalPRO
8HX200
8"
Xmax4.9mm-2%
Qts0.3+20%
BL13.8Tm-14%
Vas13.1L+7%
Qes0.31+15%
70%
Similarity
Lavoce
WAN082.02
8"
Xmax5.8mm+16%
Qts0.23-8%
BL17.8Tm+10%
Vas9L-26%
Qes0.25-7%
69%
Similarity

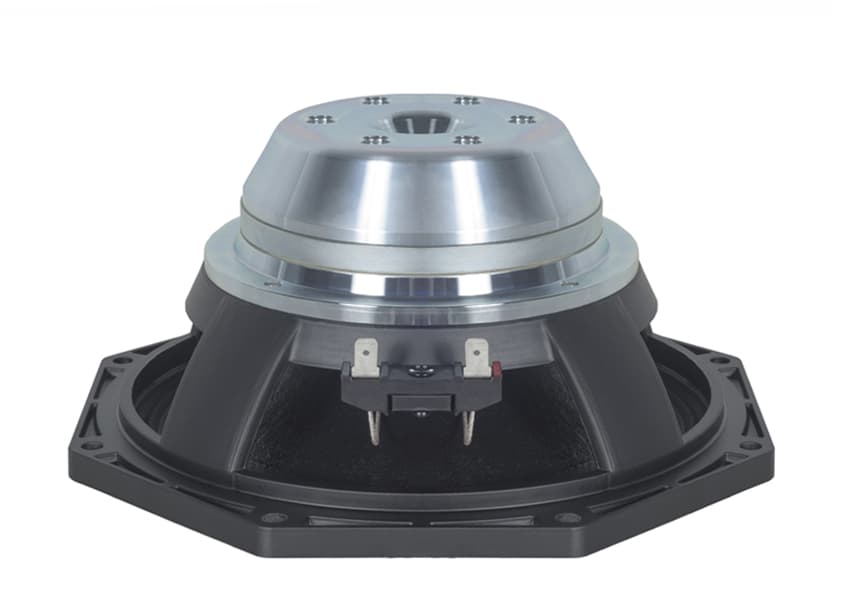

B&C
8NW51
8"
Xmax6mm+20%
Qts0.250%
BL11.2Tm-30%
Vas10.6L-13%
Qes0.26-4%
68%
Similarity
Monacor
FTX0820/8
8"
Xmax4mm-20%
Qts0.28+12%
BL14.6Tm-10%
Vas13.1L+7%
Qes0.31+15%
68%
Similarity
£139.00
Celestion
FTX0820
8"
Xmax4mm-20%
Qts0.28+12%
BL14.6Tm-10%
Vas13.1L+8%
Qes0.31+15%
