Overview
LF DriverWAN082 series
Lavoce

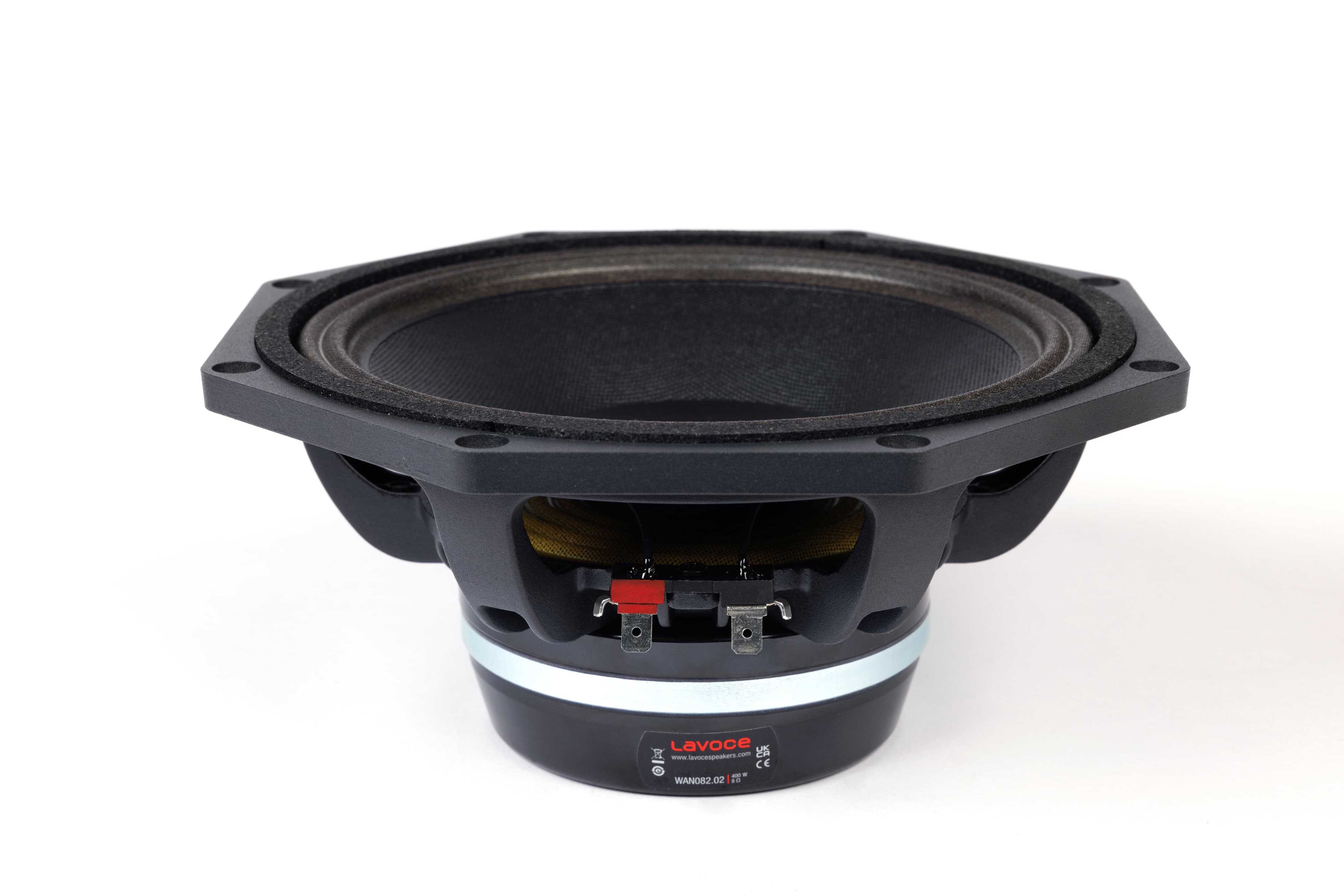

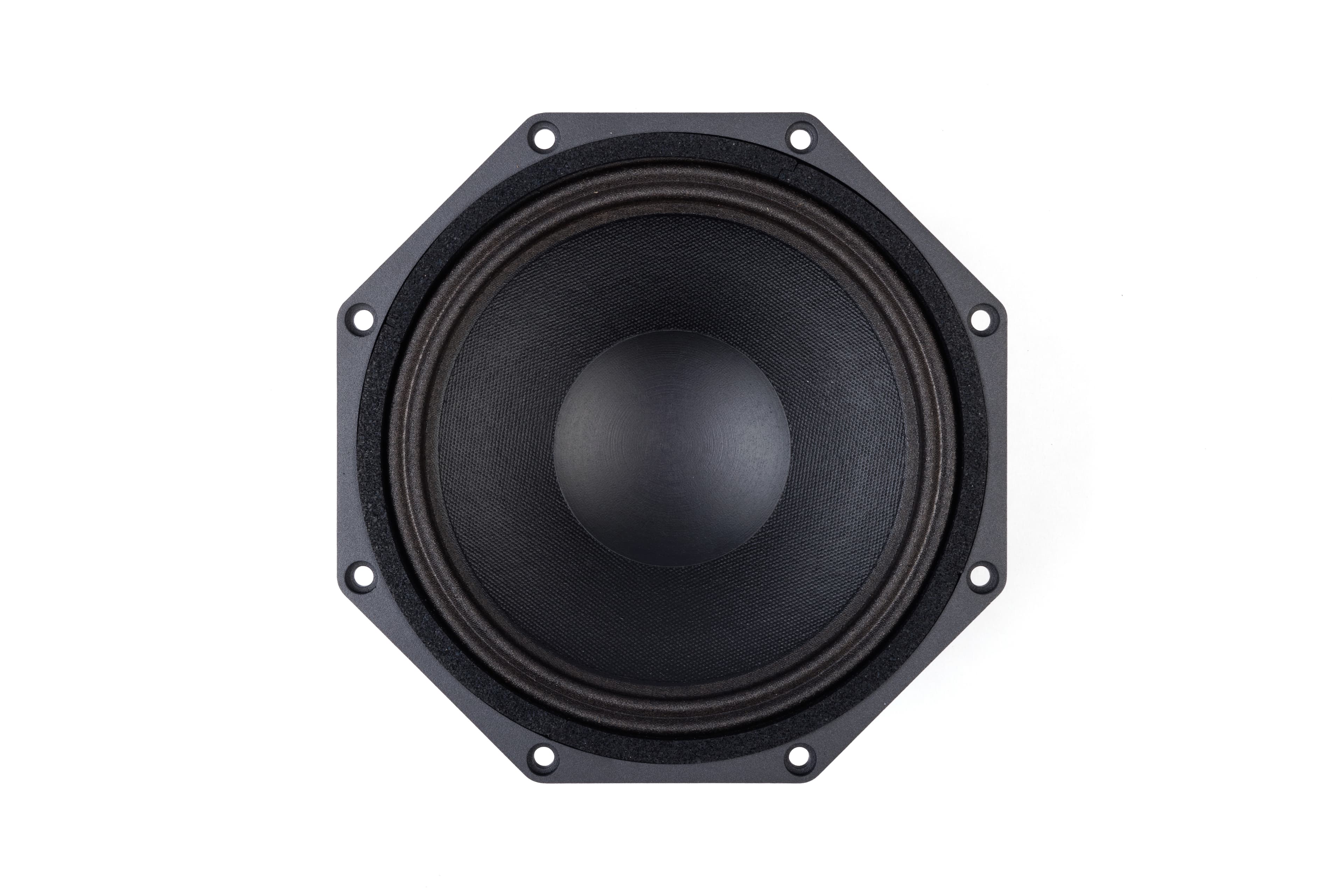

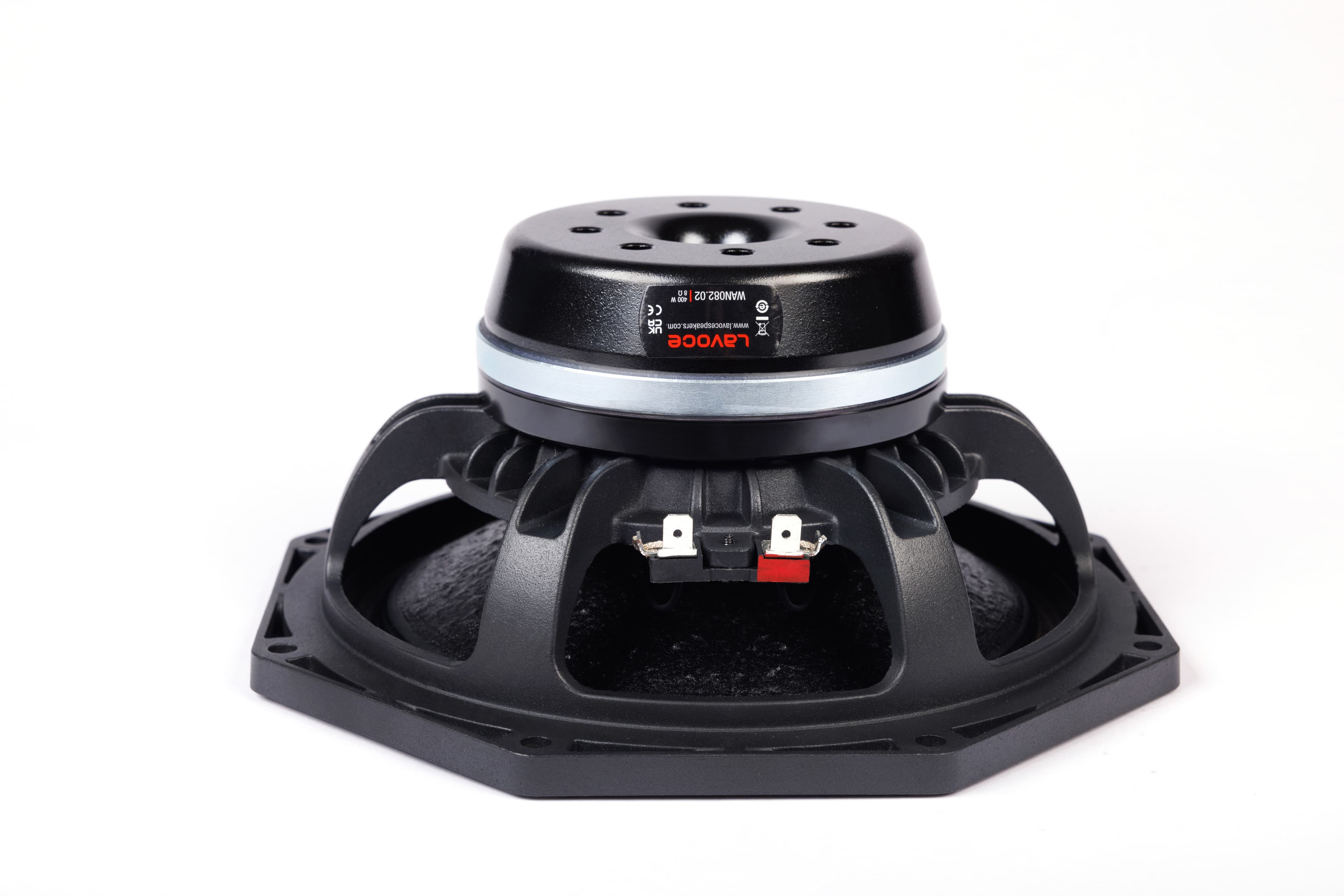

Lavoce WAN082.02
Lavoce WAN082.02 is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 80Hz, Qts 0.23, Vas 9.0L, Xmax 5.8mm, sensitivity 94.7dB, plus 128cm³ Vd and 320 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.7dB
96.5dBmanufacturer; using T/S-derived value (1.8dB delta).
EBP
320
Vented alignment
Vd
128cm³

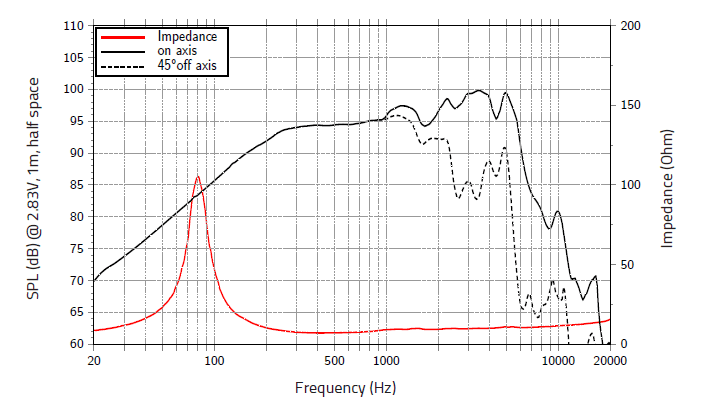

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs80Hz
Qts0.23
Qes0.25
Qms4.9
Vas9.0L
Re5.2Ω
Le0.02mH
BL17.8Tm
Sd220cm²
Mms30g
Xmax5.8mm
SPL95dB
Power200W
Impedance8Ω
Min Impedance7.0Ω
F Low80Hz
F High5000Hz
Voice Coil51mm
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

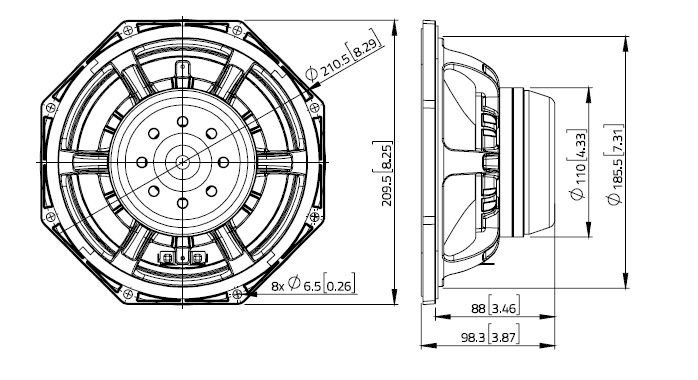

Dimensions & Physical
Weight2.7kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Lavoce
WAN082.02
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
85%
Similarity
Lavoce
WAF082.01
8"
Xmax5.8mm0%
Qts0.21-9%
BL17.9Tm+1%
Vas10.2L+14%
Qes0.22-12%
79%
Similarity
£123.00
B&C
8NDL64
8"
Xmax4.5mm-22%
Qts0.25+9%
BL17.5Tm-1%
Vas9.6L+7%
Qes0.250%
78%
Similarity
B&C
8CLA64
8"
Xmax5.3mm-9%
Qts0.24+4%
BL16.4Tm-8%
Vas12.5L+39%
Qes0.250%
77%
Similarity
Celestion
NTR08-2009D
8"
Xmax6.5mm+12%
Qts0.21-8%
BL18Tm+2%
Vas11.7L+30%
Qes0.24-6%
76%
Similarity
£116.87
B&C
8FW51
8"
Xmax6mm+3%
Qts0.21-9%
BL17.7Tm0%
Vas12L+34%
Qes0.21-16%
72%
Similarity

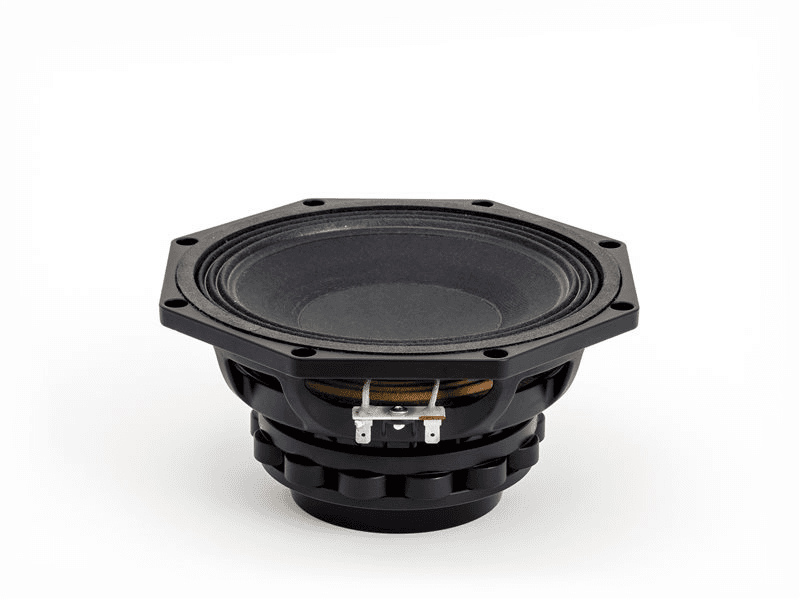

Eighteen Sound
8NMB750
8"
Xmax6.1mm+5%
Qts0.27+17%
BL18.7Tm+5%
Vas6.9L-23%
Qes0.28+12%
70%
Similarity
Oberton
8NB201
8"
Xmax5.3mm-9%
Qts0.24+7%
BL14.4Tm-19%
Vas12.5L+40%
Qes0.26+2%
69%
Similarity
Sica
8 K 3 PL
8"
Xmax5mm-14%
Qts0.25+9%
BL16.1Tm-9%
Vas12.2L+36%
Qes0.27+8%
66%
Similarity
£99.92
RCF
MB8N251
8"
Xmax5mm-14%
Qts0.25+9%
BL15.2Tm-14%
Vas13L+45%
Qes0.26+4%
61%
Similarity
Oberton
8NMB250v4
8"
Xmax4.5mm-22%
Qts0.26+12%
BL14.3Tm-20%
Vas10.9L+21%
Qes0.27+8%
61%
Similarity
Eighteen Sound
8NTLW2000
8"
Xmax4.4mm-24%
Qts0.21-9%
BL17.5Tm-1%
Vas13L+45%
Qes0.21-16%
53%
Similarity
£156.58
B&C
8NW51
8"
Xmax7mm+21%
Qts0.22-4%
BL23Tm+30%
Vas14L+56%
Qes0.23-8%
