LF Driver8MDN series
B&C
B&C 8MDN51
B&C 8MDN51 is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 70Hz, Qts 0.20, Vas 16L, Xmax 6mm, sensitivity 96.2dB, plus 132cm³ Vd and 333 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £136.46.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
96.2dB
EBP
333
Vented alignment
Vd
132cm³

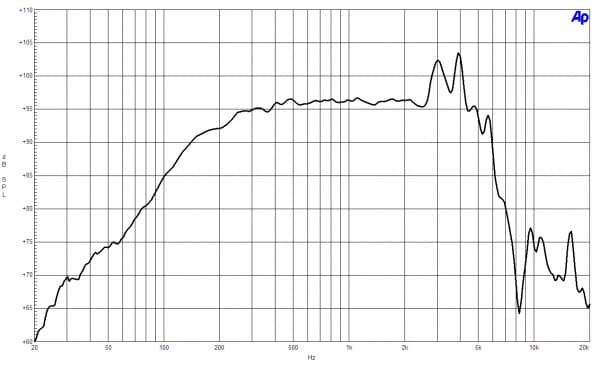

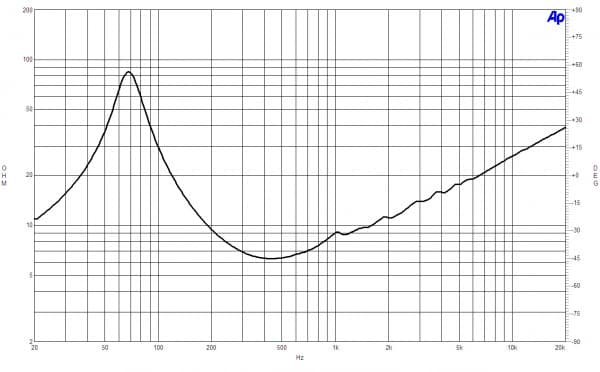

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs70Hz
Qts0.20
Qes0.21
Qms3.7
Vas16.0L
Re5.1Ω
Le0.80mH
BL15.3Tm
Sd220cm²
Mms23g
Xmax6.0mm
SPL96dB
Power200W
Power Nominal200W
Impedance8Ω
Min Impedance7.7Ω
F Low70Hz
F High4000Hz
Voice Coil51mm
Flux Density1.45T
Pricing & availability
Price definitionsPrice movement
Best current price
£136.46
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.6kg
Diameter225.0mm
Overall Depth95.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
Additional Manufacturer Specs
Bl15.3 Tm
Fs70 Hz
Le0.8 mH
Re5.1 Ω
Sd220 cm² (34.1 in²)
Ebp333 Hz
Mms23 g
Qes0.21
Qms3.7
Qts0.2
Vas16 dm³ (0.6 ft³)
η02.4 %
ConeRCK008MDN518
Xmax6 mm
Xvar6 mm
SpiderSingle
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth16 mm (0.62 in)
Surround ShapeDouble Roll
Former MaterialKapton
Magnet MaterialNeodymium Ring
Nominal Diameter200 mm (8 in)
Winding MaterialAluminium
Magnetic Gap Depth8 mm (0.31 in)
Bolt Circle Diameter210 mm (8.3 in)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter187 mm (7.4 in)
Flange And Gasket Thickness11 mm (0.4 in)
Air Volume Occupied By Driver1.1 dm³ (0.04 ft³)
