LF DriverNTR08 series
Celestion

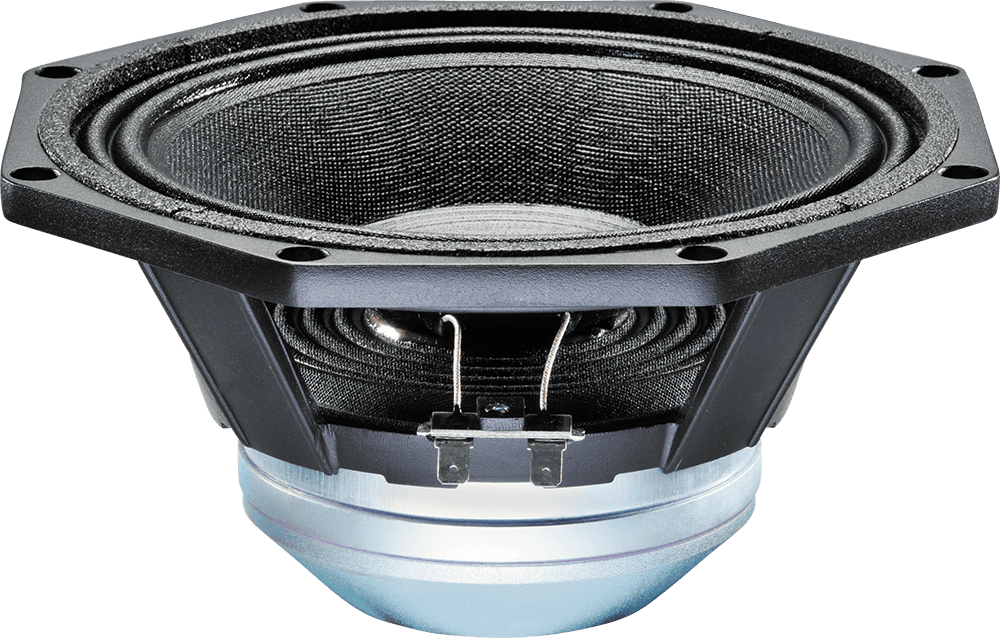

Celestion NTR08-2009D
Celestion NTR08-2009D is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 71Hz, Qts 0.21, Vas 11.7L, Xmax 6.5mm, sensitivity 94.6dB, plus 148cm³ Vd and 303 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
94.6dB
EBP
303
Vented alignment
Vd
148cm³

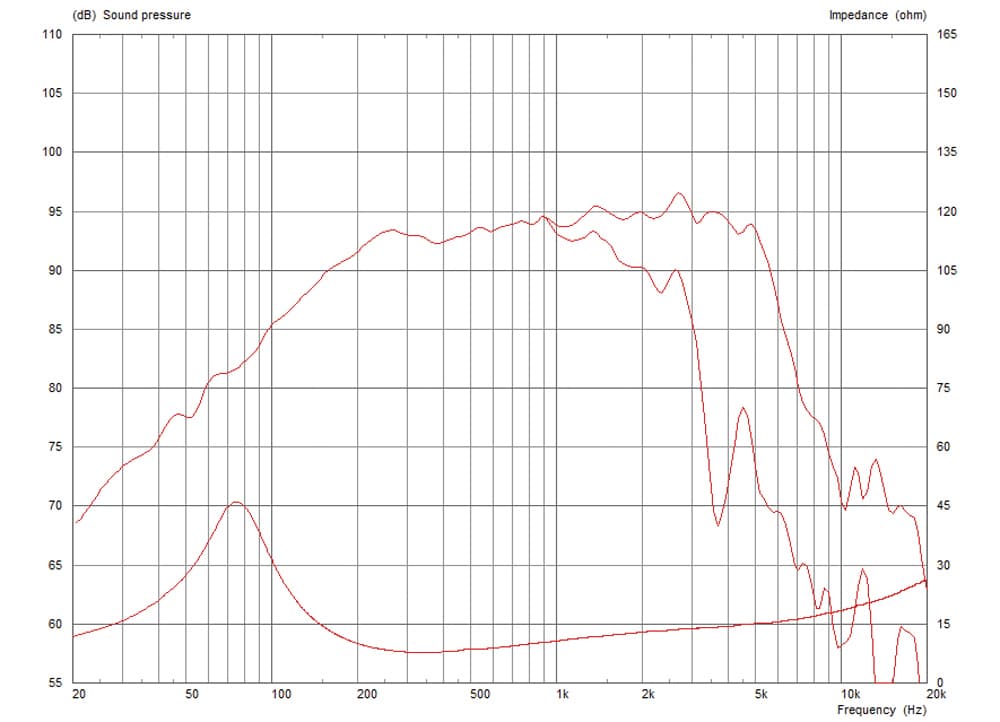

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence164 selected pixels of 351
T/S Parameters
Valid
Fs71Hz
Qts0.21
Qes0.24
Qms2.0
Vas11.7L
Re5.5Ω
Le0.48mH
BL18.0Tm
Sd227cm²
Mms31g
Xmax6.5mm
SPL95dB
Power200W
Impedance8Ω
Voice Coil50mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Diameter225.0mm
Overall Depth100.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
