LF Driver8PE series
B&C
B&C 8PE21
B&C 8PE21 is a 8" 8 ohm LF driver rated at 200W RMS. The validated T/S data includes Fs 87Hz, Qts 0.19, Vas 13L, Xmax 2.5mm, sensitivity 98.3dB, plus 55cm³ Vd and 435 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £96.00.
Size
8"
Impedance
8Ω
RMS Power
200W
Sensitivity
98.3dB
EBP
435
Vented alignment
Vd
55cm³

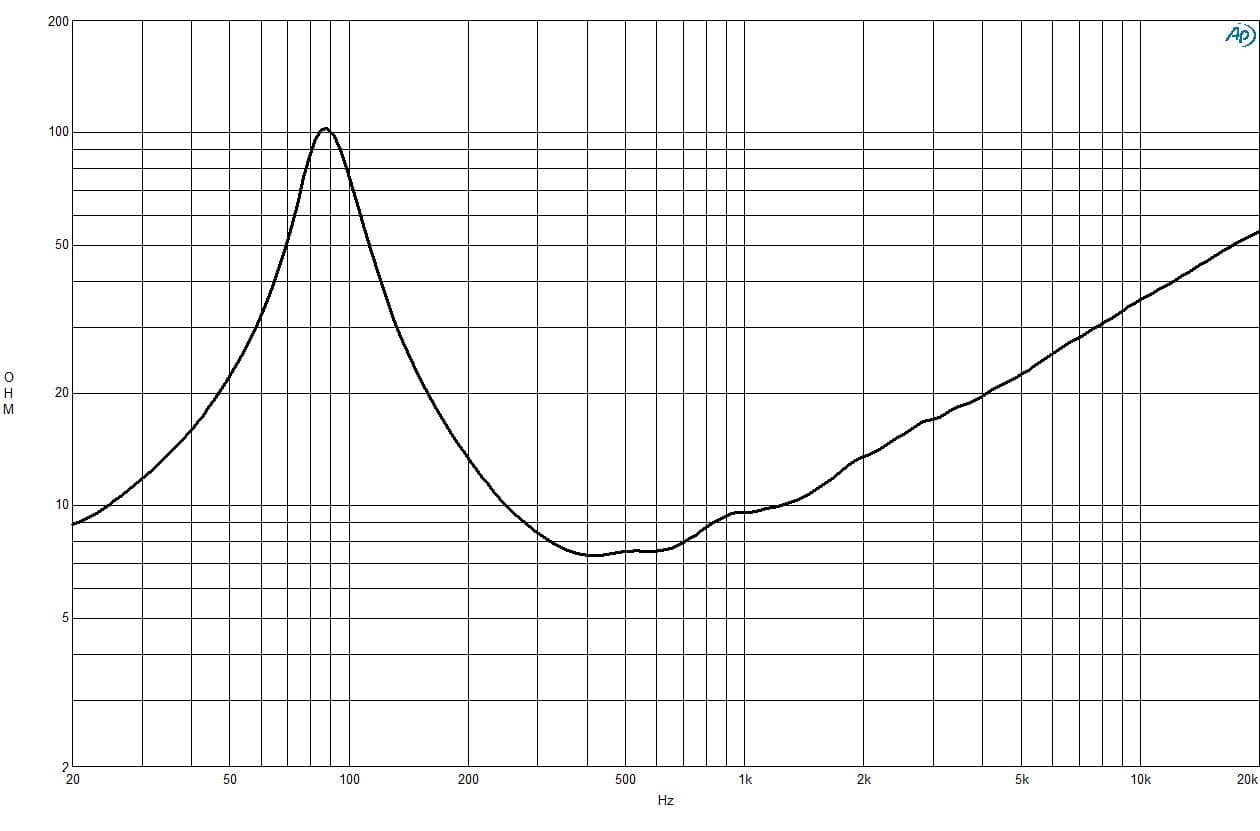

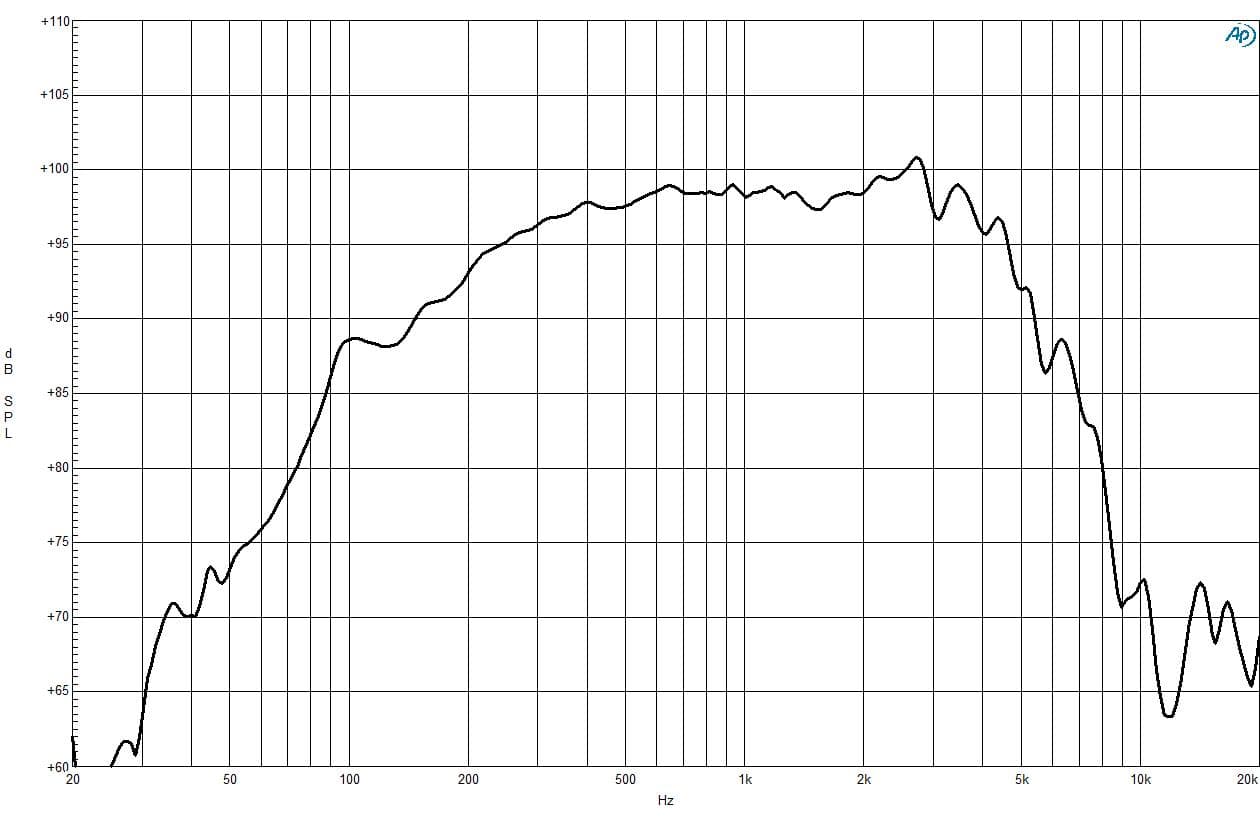

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs87Hz
Qts0.19
Qes0.20
Qms3.8
Vas13.0L
Re5.6Ω
Le0.50mH
BL16.6Tm
Sd220cm²
Mms18g
Xmax2.5mm
SPL98dB
Power200W
Power Nominal200W
Impedance8Ω
Min Impedance7.2Ω
F Low90Hz
F High5000Hz
Voice Coil51mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Best current price
£96.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.3kg
Diameter225.0mm
Overall Depth91.0mm
Cutout Diameter187.0mm
Bolt Circle Diameter210.0mm
Additional Manufacturer Specs
Bl16.6 Tm
Fs87 Hz
Le0.5 mH
Re5.6 Ω
Sd220 cm² (34.1 in²)
Ebp435 Hz
Mms18 g
Qes0.2
Qms3.8
Qts0.19
Vas13 dm³ (0.46 ft³)
η04.1 %
ConeRCK008PE218
Xmax2.5 mm
Xvar4.5 mm
SpiderSingle
Cone ShapeRadial
Pole DesignStraight Pole
Winding Depth9 mm (0.37 in)
Surround ShapeTriple Roll
Former MaterialKapton
Magnet MaterialFerrite
Nominal Diameter200 mm (8 in)
Winding MaterialCopper
Magnetic Gap Depth8 mm (0.31 in)
Bolt Circle Diameter210 mm (8.27 in)
Woofer Cone TreatmentNone
Baffle Cutout Diameter187 mm (7.36 in)
Flange And Gasket Thickness11 mm (0.43 in)
Air Volume Occupied By Driver1.2 dm³ (0.04 ft³)
