Overview
LF Driver
Eighteen Sound
Eighteen Sound 8NTLS2000
Eighteen Sound 8NTLS2000 is a 8" 8 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 41Hz, Qts 0.19, Vas 27L, Xmax 7.4mm, sensitivity 91.9dB, plus 168cm³ Vd and 216 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
350W
Sensitivity
91.9dB
93.5dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
216
Vented alignment
Vd
168cm³

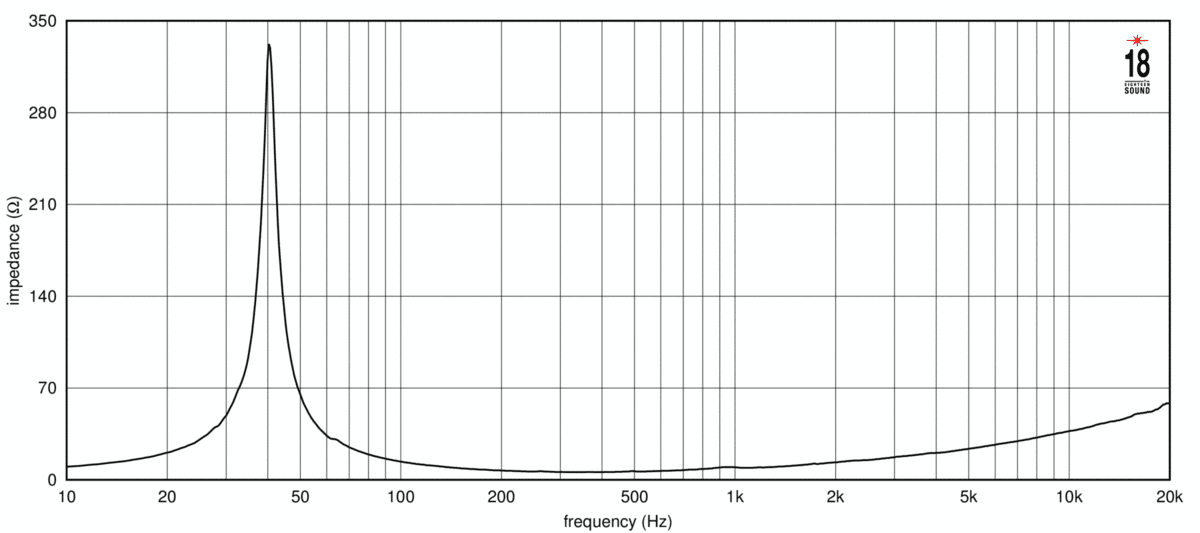

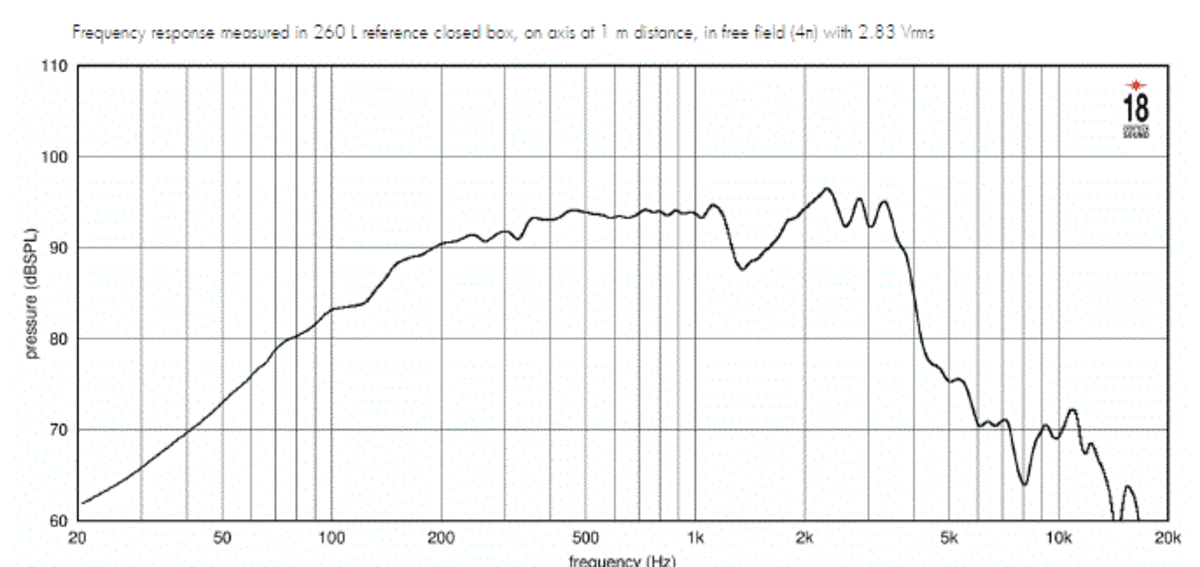

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,808 selected pixels of 2,325
T/S Parameters
Valid
Fs41Hz
Qts0.19
Qes0.19
Qms11.5
Vas27.0L
Re5.4Ω
Le0.69mH
BL17.2Tm
Sd227cm²
Mms42g
Xmax7.4mm
SPL92dB
Power350W
Power Nominal350W
Impedance8Ω
F Low40Hz
F High1000Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.5kg
Diameter210.0mm
Overall Depth121.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter196.0mm
