Eighteen Sound 8NTLS2000 16Ω

LF Driver
WatchWatch priceSimSimulate
  1. Home
  2. /Drivers
  3. /Eighteen Sound
  4. /8NTLS2000

Media

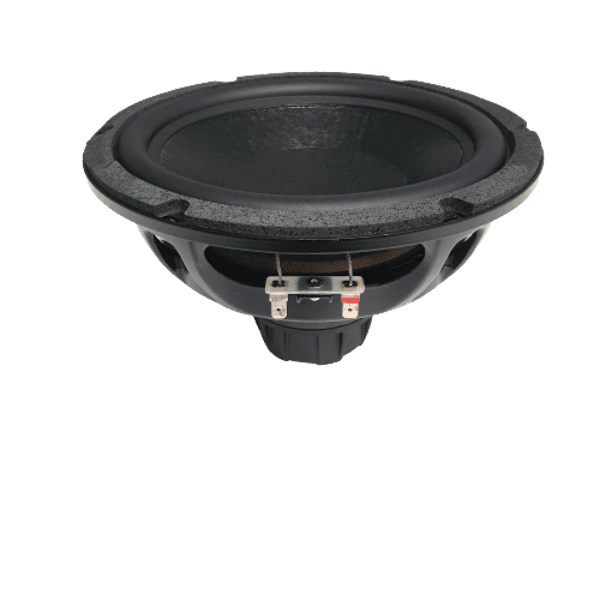

Eighteen Sound 8NTLS2000 8 inch 16 ohm loudspeaker driver view 1

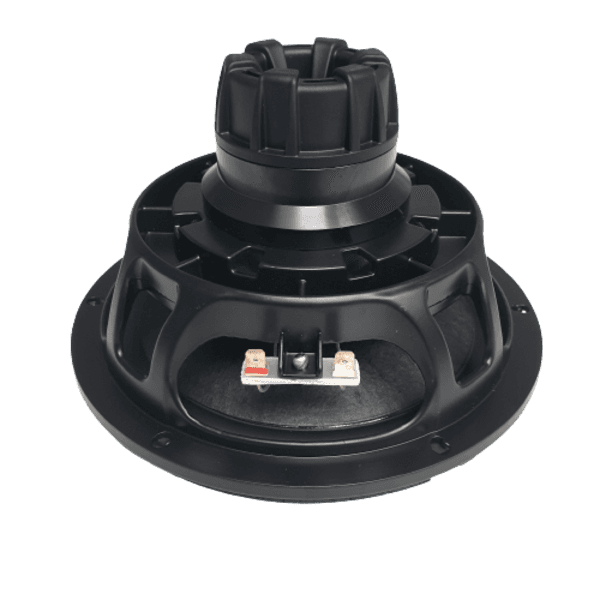

Eighteen Sound 8NTLS2000 8 inch 16 ohm loudspeaker driver view 2
Auto-advancing

Overview

LF Driver
Eighteen Sound

Eighteen Sound 8NTLS2000

Eighteen Sound 8NTLS2000 is a 8" 16 ohm LF driver rated at 350W RMS. The validated T/S data includes Fs 42Hz, Qts 0.24, Vas 28L, Xmax 7.4mm, sensitivity 91.4dB, plus 168cm³ Vd and 175 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

Size
8"
Impedance
16Ω
RMS Power
350W
Sensitivity
91.4dB
93.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
175
Vented alignment
Vd
168cm³
Datasheet

Datasheet traces

Frequency and impedance curves traced from the manufacturer PDF.

2 curves
93898479751k2k5k10kHzdBfrequency response
frequency response173 ptsp2medium
Curve provenanceInspect 2 tracesHide details

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

  • frequency response

    Frequency response

    Trace datasheet-response-trace-poc/v2
    173 plotted pointsSource file SHA-256 cb13715db1b2…Medium confidence2,461 selected pixels of 2,644
    Manufacturer datasheet, page 2

  • impedance

    Impedance response

    Trace datasheet-response-trace-poc/v2
    240 plotted pointsSource file SHA-256 cb13715db1b2…Medium confidence1,425 selected pixels of 1,741
    Manufacturer datasheet, page 2

T/S Parameters

Valid
Canonical
Fs42Hz
Qts0.24
Qes0.24
Qms11.2
Vas28.0L
Re11.2Ω
Le1.10mH
BL21.8Tm
Sd227cm²
Mms38g
Xmax7.4mm
SPL91dB
Power350W
Power Nominal350W
Impedance16Ω
F Low45Hz
F High1200Hz
What this validation status means

Pricing & availability

Price definitions

No standard offers found

Check the manufacturer website for current pricing.

Use this driver

Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.

Files use canonical values. Required mechanical fields are derived only where the target format needs them.

Hornresp

.txt · Hornresp driver database

Driver file ready to place in Hornresp’s Drivers folder.

Download for Hornresp

WinISD

.wdr · WinISD driver editor

Native WinISD driver record with the required SI conversions.

Download for WinISD

BASTA!

.bastaelement · BASTA! loudspeaker simulator

Native BASTA! element file using its documented SI-unit fields.

Download for BASTA!

VituixCAD

.wdr · VituixCAD 2 Enclosure

A WinISD driver file that VituixCAD imports directly.

Download for VituixCAD

00 Simulator

Direct import · Web app

Start a new enclosure simulation with this driver already loaded.

Open in 00 Simulator

Copy spec sheet

Plain text · Clipboard

Copy the available values as a clean label-and-value list.

Dimensions & Physical

Weight1.5kg
Diameter210.0mm
Overall Depth121.0mm
Cutout Diameter186.0mm
Bolt Circle Diameter196.0mm

Similar Drivers

Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.

Search Similar
Eighteen Sound 8NTLS2000 8 inch 16 ohm loudspeaker driver similar-driver reference
Reference
Eighteen Sound
8NTLS2000
8"
Compare on

Matches sit inside every range. Size stays fixed automatically.

Qts
Qes
Vas
L
Xmax
mm
BL
Tm

5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.

12 matches

Compare a specific driver

Added drivers stay at the front of the list, whatever the ranges say.

B&C 8NW51 8 inch 16 ohm loudspeaker driver similar driver
73%
Similarity
£156.58
B&C
8NW51
8"
Xmax7mm-5%
Qts0.22-8%
BL23Tm+6%
Vas14L-50%
Qes0.23-4%
Eighteen Sound 8NTLS2000 8 inch 8 ohm loudspeaker driver similar driver
67%
Similarity
Eighteen Sound
8NTLS2000
8"
Xmax7.4mm0%
Qts0.19-21%
BL17.2Tm-21%
Vas27L-4%
Qes0.19-21%

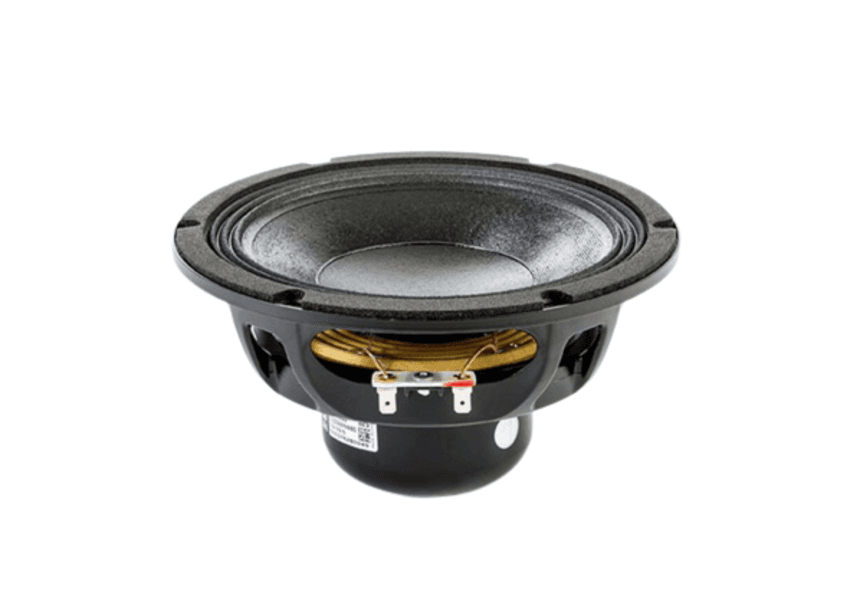

Eighteen Sound 8NW650 8 inch 16 ohm loudspeaker driver similar driver
65%
Similarity
Eighteen Sound
8NW650
8"
Xmax5.5mm-26%
Qts0.25+4%
BL19.1Tm-12%
Vas19L-32%
Qes0.26+8%
Beyma 8MC300ND 8 inch 8 ohm loudspeaker driver similar driver
61%
Similarity
£171.83
Beyma
8MC300ND
8"
Xmax6mm-19%
Qts0.22-8%
BL16Tm-27%
Vas18L-36%
Qes0.240%
Celestion NTR08-2009D 8 inch 8 ohm loudspeaker driver similar driver
60%
Similarity
Celestion
NTR08-2009D
8"
Xmax6.5mm-12%
Qts0.21-12%
BL18Tm-17%
Vas11.7L-58%
Qes0.24-2%
B&C 8CLA64 8 inch 8 ohm loudspeaker driver similar driver
55%
Similarity
B&C
8CLA64
8"
Xmax5.3mm-28%
Qts0.240%
BL16.4Tm-25%
Vas12.5L-55%
Qes0.25+4%
B&C 8MDN51 8 inch 16 ohm loudspeaker driver similar driver
54%
Similarity
£136.46
B&C
8MDN51
8"
Xmax6mm-19%
Qts0.27+13%
BL17.8Tm-18%
Vas17.5L-37%
Qes0.29+21%
Eighteen Sound 8NW650 8 inch 8 ohm loudspeaker driver similar driver
53%
Similarity
£138.53
Eighteen Sound
8NW650
8"
Xmax5.5mm-26%
Qts0.25+4%
BL15.2Tm-30%
Vas17.8L-36%
Qes0.27+13%
B&C 8FW51 8 inch 8 ohm loudspeaker driver similar driver
51%
Similarity
£116.87
B&C
8FW51
8"
Xmax6mm-19%
Qts0.21-12%
BL17.7Tm-19%
Vas12L-57%
Qes0.21-12%
Oberton 8NB201 8 inch 8 ohm loudspeaker driver similar driver
48%
Similarity
Oberton
8NB201
8"
Xmax5.3mm-29%
Qts0.24+2%
BL14.4Tm-34%
Vas12.5L-55%
Qes0.26+6%
B&C 8MDN51 8 inch 8 ohm loudspeaker driver similar driver
47%
Similarity
£136.46
B&C
8MDN51
8"
Xmax6mm-19%
Qts0.2-17%
BL15.3Tm-30%
Vas16L-43%
Qes0.21-12%
Beyma 8WR300 8 inch 8 ohm loudspeaker driver similar driver
46%
Similarity
£90.56
Beyma
8WR300
8"
Xmax6mm-19%
Qts0.27+13%
BL15.5Tm-29%
Vas15L-46%
Qes0.29+21%
