Overview
LF DriverPrestige series
SEAS
SEAS H1192-08 CD22RN4X
SEAS H1192-08 CD22RN4X is a 8" 8 ohm LF driver rated at 100W RMS. The validated T/S data includes Fs 20Hz, Qts 0.24, Vas 108L, Xmax 7mm, sensitivity 87.2dB, plus 161cm³ Vd and 77 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
100W
Sensitivity
87.2dB
EBP
77
Either alignment
Vd
161cm³

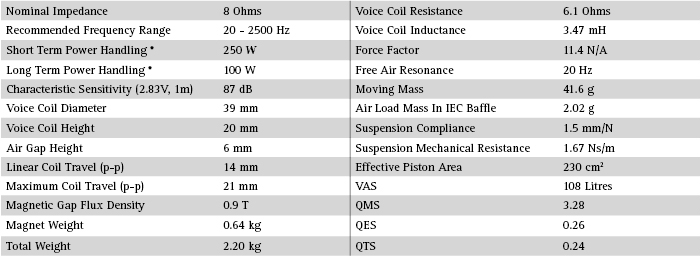

T/S Parameters
Valid
Fs20Hz
Qts0.24
Qes0.26
Qms3.3
Vas108.0L
Re6.1Ω
Le3.47mH
BL11.4Tm
Sd230cm²
Mms42g
Xmax7.0mm
SPL87dB
Power100W
Impedance8Ω
F Low20Hz
F High2500Hz
Voice Coil39mm
Flux Density0.90T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

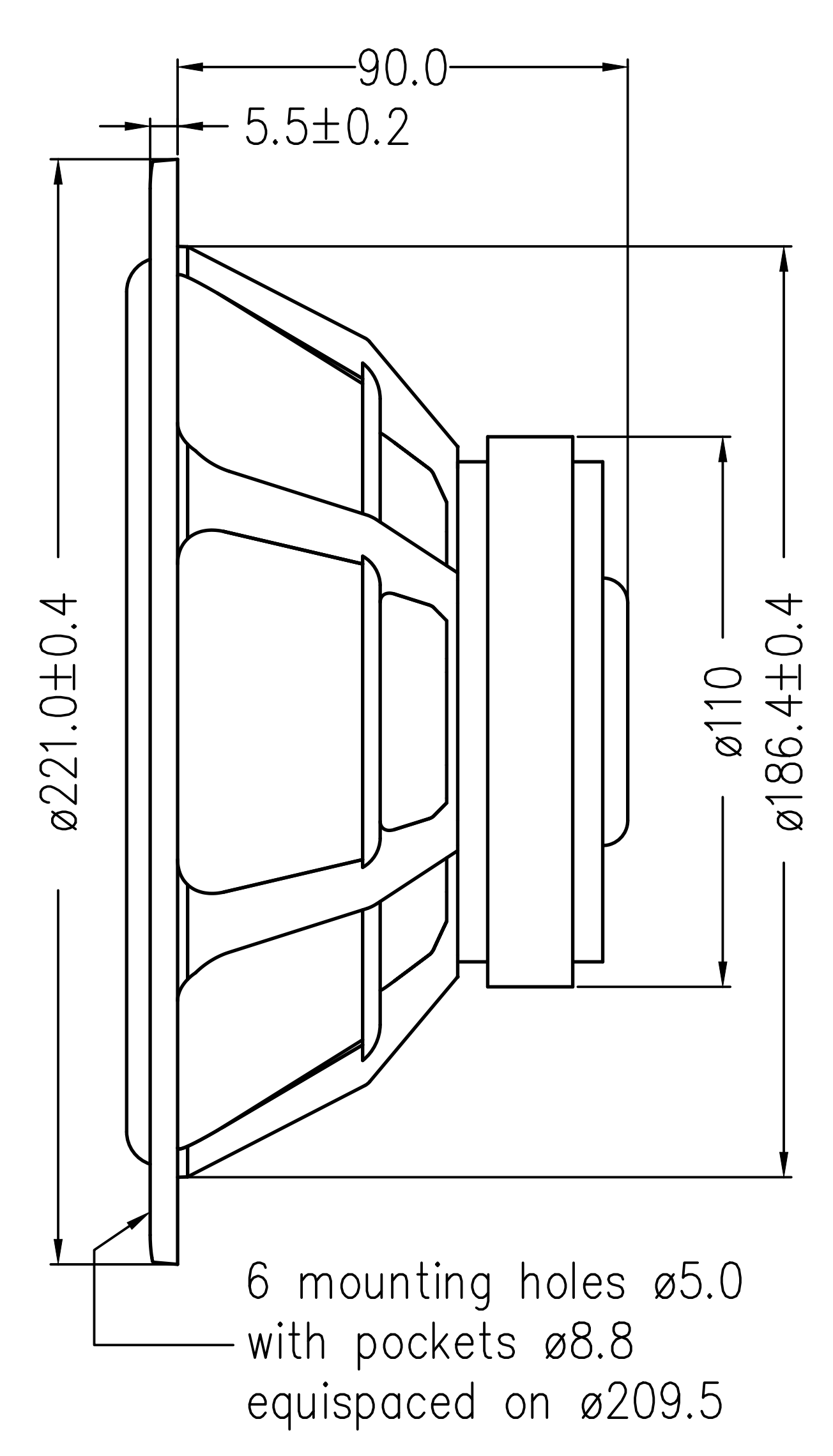

Dimensions & Physical
Weight2.2kg
