CIARE HWB205

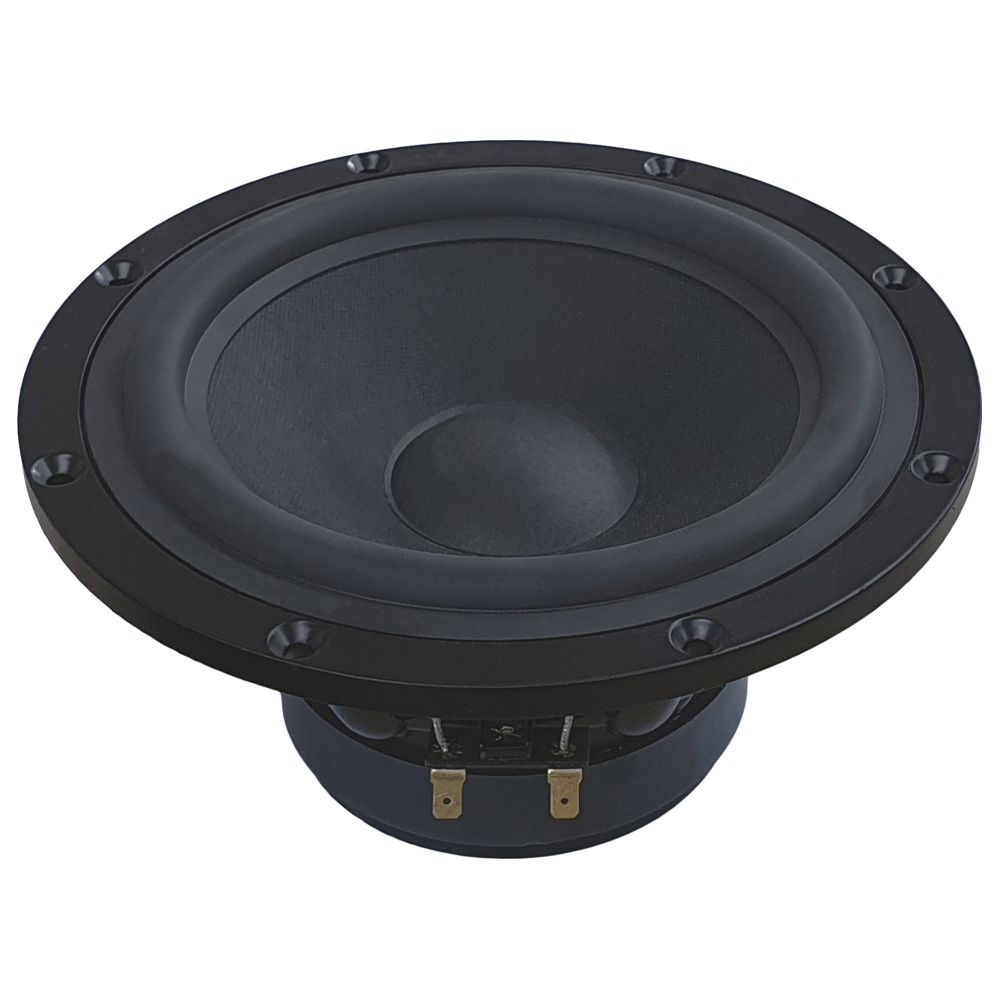

CIARE HWB205 is a 8" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 28Hz, Qts 0.29, Vas 79L, Xmax 7mm, sensitivity 89.6dB, plus 147cm³ Vd and 93 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
8Ω
RMS Power
400W
Sensitivity
89.6dB
91.5dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
93
Either alignment
Vd
147cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence1,572 selected pixels of 1,572
T/S Parameters
Valid
Fs28Hz
Qts0.29
Qes0.30
Qms6.8
Vas79.0L
Re6.2Ω
Le0.41mH
BL9.3Tm
Sd210cm²
Mms24g
Xmax7.0mm
SPL90dB
Power400W
Power Nominal200W
Impedance8Ω
F Low25Hz
F High25Hz
Voice Coil50mm
Pricing & availability
Price definitionsVendor offers
1 vendorleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£1,000.00
inc VAT
Back order
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.8kg
Diameter224.0mm
Overall Depth94.5mm
Cutout Diameter184.0mm
Bolt Circle Diameter210.0mm
