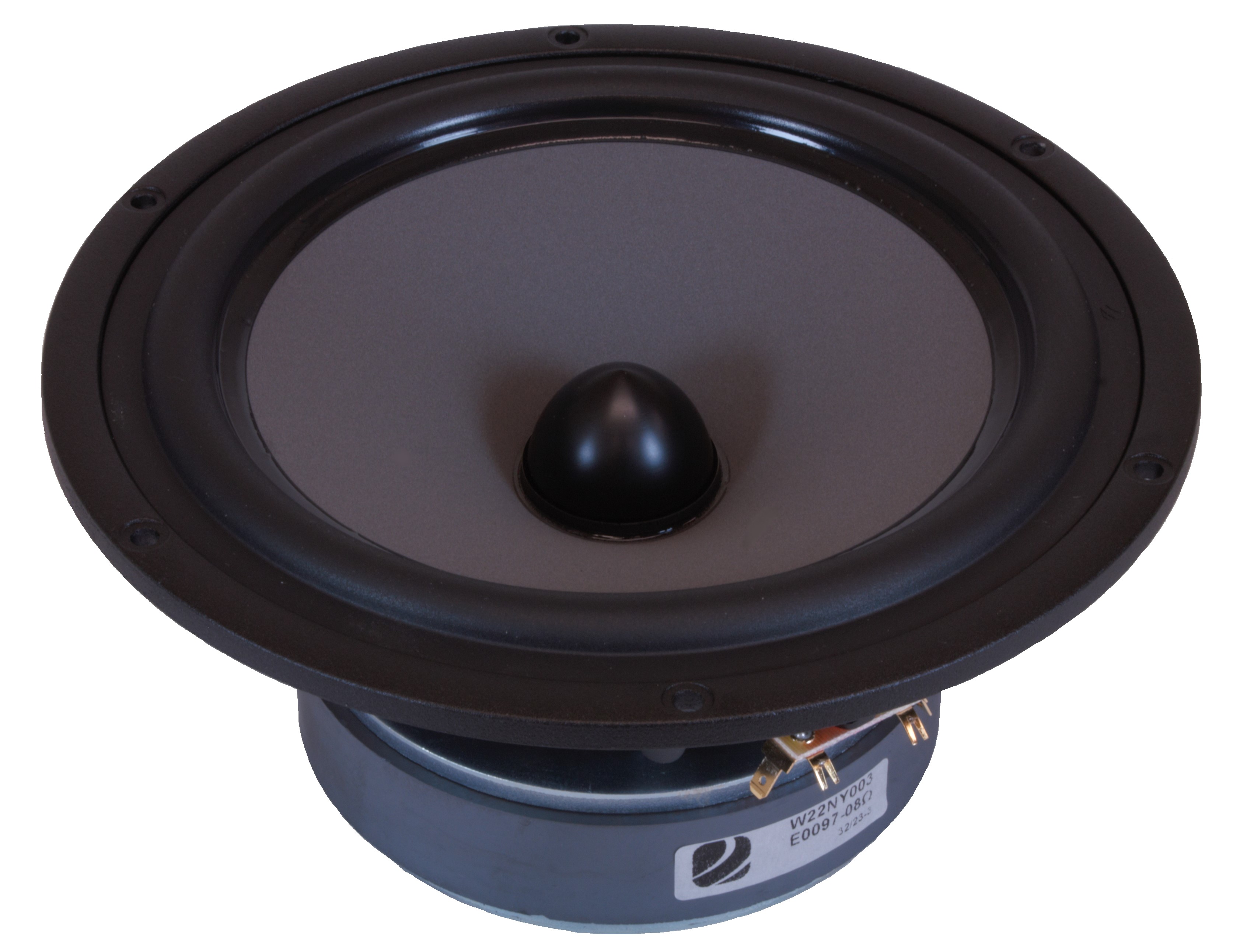

SEAS E0097-08 W22NY003 8Ω
8 Ω
£426.83
SteadySoundImports · 6 in stock · All 1 offer
- Fs
- 21Hz
- Xmax
- 7mm
- SPL
- 89dB
- Pe
- –
- BL
- 8T·m
- Vd
- 154cm³
- Qts
- 0.29
- Vas
- 164L

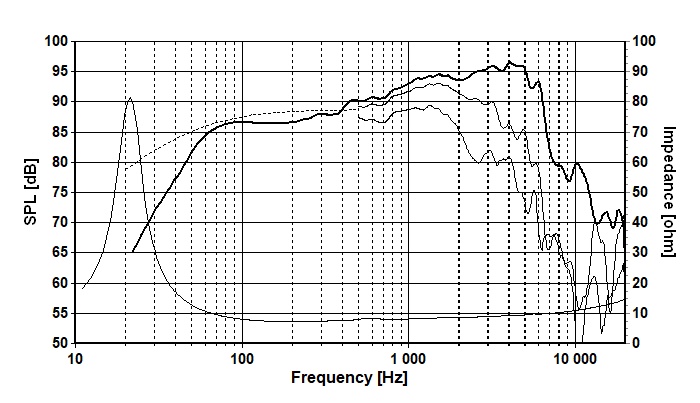

Published graphs
SEAS E0097-08 W22NY003 is an 8-inch 8 ohm LF driver. The validated T/S data includes Fs 21 Hz, Qts 0.29, Vas 164 L, Xmax 7 mm, sensitivity 88.9 dB, plus 154 cm³ Vd and 68 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £426.83.
The published T/S values agree with each other
Thiele/Small
- Fs
- 21Hz
- Qts
- 0.29
- Qes
- 0.31
- Qms
- 3.7
- Vas
- 164L
- Re
- 6.4Ω
Motor and cone
- BL
- 8T·m
- Sd
- 220cm²
- Mms
- 24g
- Xmax
- 7mm
- Vd †
- 154cm³
Power and response
- Sensitivity †
- 88.9dB
- Impedance
- 8Ω
- EBP †
- 68 · Sealed or vented
Other published values
- Cms
- 2.39mm/N
- Rms
- 0.86kg/s
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
LF · Primary · 8″
- BL
- 8T·m
- Fs
- 21Hz
- Re
- 6.4Ω
- Sd
- 220cm²
- Cms
- 2.39mm/N
- Mms
- 24g
- Qes
- 0.31
- Qms
- 3.7
- Qts
- 0.29
- Rms
- 0.86kg/s
- SPL
- 88.9dB
- Vas
- 164L
- Xmax
- 7mm
- Impedance
- 8Ω
- Calculated sensitivity †
- 88.9dB
02
