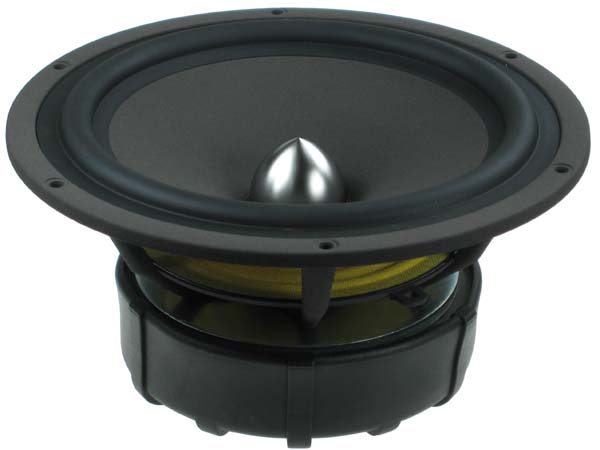

SEAS E0045-08S W22NY001 8Ω
8 Ω · 30–3000 Hz
£315.54
Falcon Acoustics · In stock · All 2 offers
- Fs
- 33Hz
- Xmax
- 7mm
- SPL
- 91dB
- Pe
- 90W
- BL
- 8.8T·m
- Vd
- 154cm³
- Qts
- 0.30
- Vas
- 72L

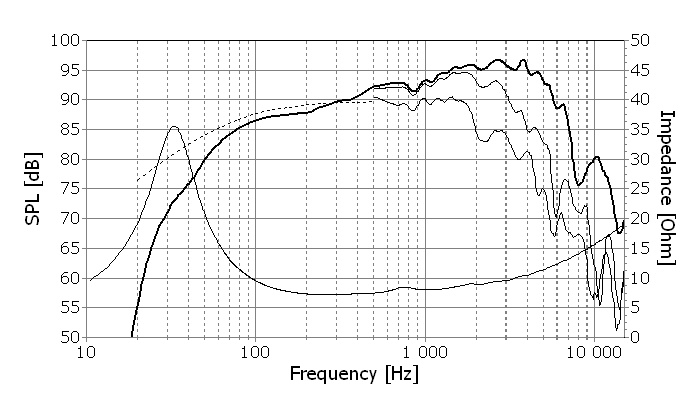

Published graphs
SEAS E0045-08S W22NY001 is an 8-inch 8 ohm LF driver rated at 90 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.30, Vas 72 L, Xmax 7 mm, sensitivity 90.6 dB, plus 154 cm³ Vd and 92 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £309.76.
The published T/S values agree with each other

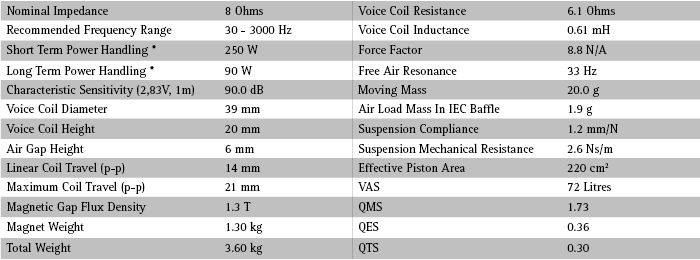

Thiele/Small
- Fs
- 33Hz
- Qts
- 0.30
- Qes
- 0.36
- Qms
- 1.7
- Vas
- 72L
- Re
- 6.1Ω
- Le
- 0.61mH
Motor and cone
- BL
- 8.8T·m
- Sd
- 220cm²
- Mms
- 20g
- Xmax
- 7mm
- Vd †
- 154cm³
- Voice coil
- 39mm
- Flux density
- 1.30T
Power and response
- Sensitivity †
- 90.6dB
- Manufacturer sensitivity
- 90dB
- Power
- 90W
- Impedance
- 8Ω
- Range
- 30–3000Hz
- EBP †
- 92 · Sealed or vented

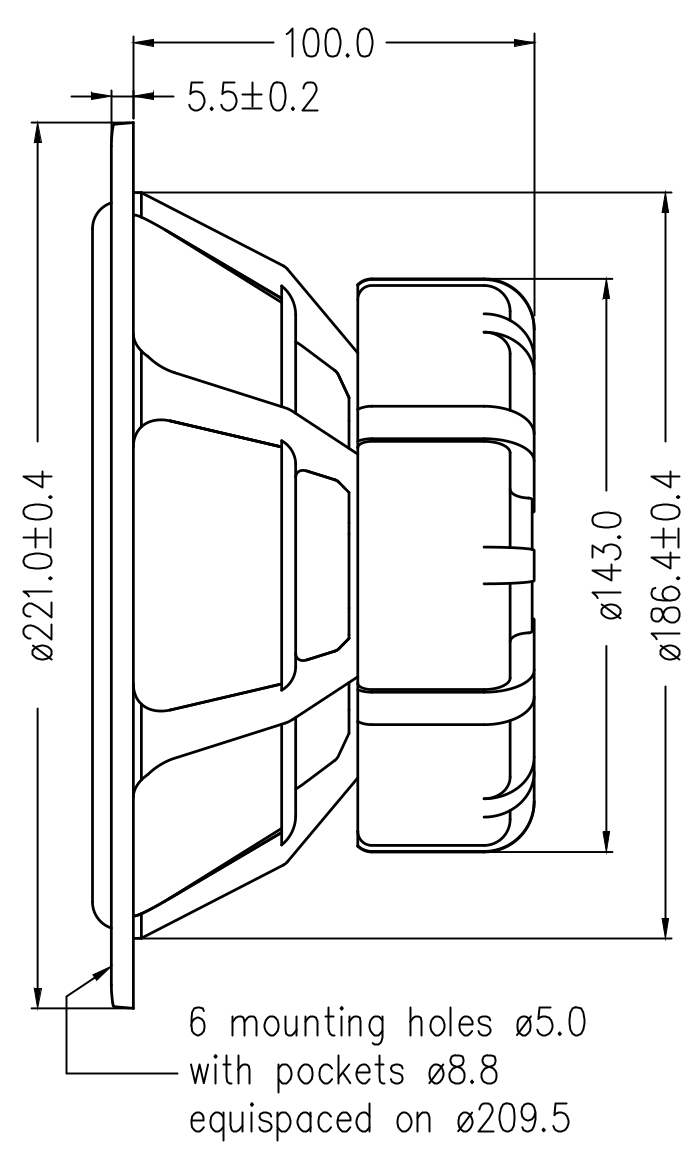

Size and mounting
- Weight
- 3.6kg
Other published values
- Cms
- 1.20mm/N
- Rms
- 2.60kg/s
- Xmech
- 10.5
- Power Peak
- 250
† Calculated by bits from the published values
What this validation status means
Everything else SEAS lists
LF · Primary · 8″
- BL
- 8.8T·m
- Fs
- 33Hz
- Le
- 0.61mH
- Re
- 6.1Ω
- Sd
- 220cm²
- Cms
- 1.20mm/N
- Mms
- 20g
- Qes
- 0.36
- Qms
- 1.7
- Qts
- 0.30
- Rms
- 2.60kg/s
- SPL
- 90.6dB
- Vas
- 72L
- Xmax
- 7mm
- Xmech
- 10.5
- Power
- 90W
- Impedance
- 8Ω
- Power Peak
- 250
- Flux density
- 1.30T
- Sensitivity
- 90dB
- Low limit
- 30Hz
- Calculated sensitivity †
- 90.6dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 90dB
- Voice coil
- 39mm
- Weight
- 3.6kg
