Overview
LF Driver
Tang Band

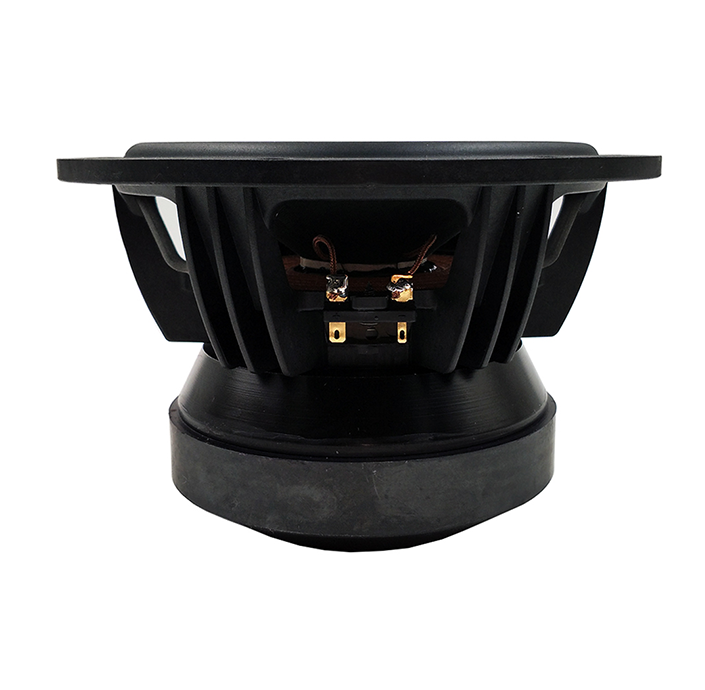

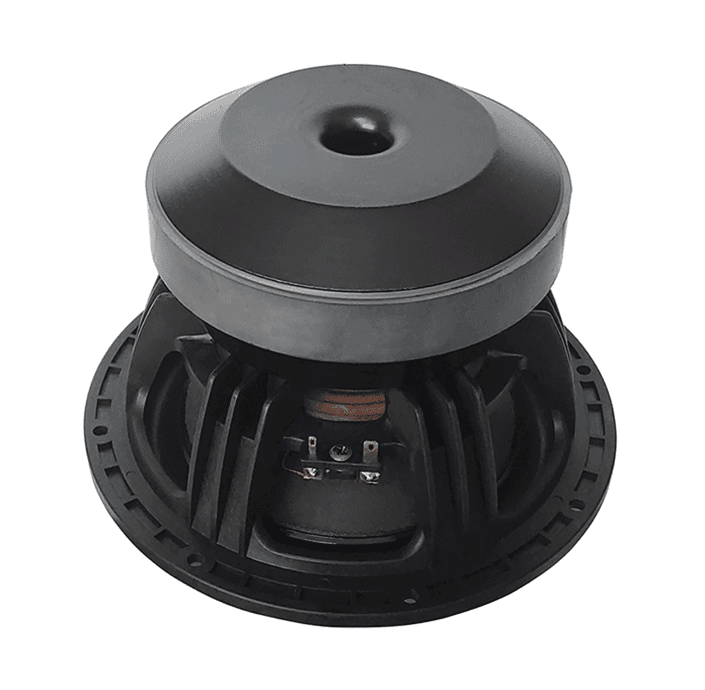

Tang Band W8-2096B
Tang Band W8-2096B is a 8" 4 ohm LF driver rated at 80W RMS. The validated T/S data includes Fs 32Hz, Qts 0.32, Vas 57.9L, Xmax 8.5mm, sensitivity 89.1dB, plus 187cm³ Vd and 86 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
8"
Impedance
4Ω
RMS Power
80W
Sensitivity
89.1dB
88.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
86
Either alignment
Vd
187cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
spl240 ptsp1medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
spl
Frequency response
240 plotted pointsMedium confidence1,056 selected pixels of 2,843 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence2,358 selected pixels of 2,358
T/S Parameters
Valid
Fs32Hz
Qts0.32
Qes0.37
Qms2.5
Vas57.9L
Re3.6Ω
Le0.25mH
BL8.0Tm
Sd220cm²
Mms35g
Xmax8.5mm
SPL89dB
Power80W
Impedance4Ω
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Tang Band
W8-2096B
8"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity
Purifi
PTT8.0X04-NAB-01
8"
Xmax9.3mm+9%
Qts0.36+12%
BL8Tm+1%
Vas70.4L+22%
Qes0.38+3%
78%
Similarity
£58.80
Visaton
W 200 S
8"
Xmax10mm+18%
Qts0.35+9%
BL7.7Tm-3%
Vas65L+12%
Qes0.38+3%
78%
Similarity
Visaton
W 200 S - 4 OHM
8"
Xmax10mm+18%
Qts0.35+9%
BL7.7Tm-3%
Vas65L+12%
Qes0.38+3%
78%
Similarity
Audio Technology
8 A 77 20 06 SD
8"
Xmax8mm-6%
Qts0.3-6%
BL9.3Tm+17%
Vas67L+16%
Qes0.35-5%
76%
Similarity
£18,240.00
Markaudio
MA200-M Multi
7.75"
Xmax9mm+6%
Qts0.35+8%
BL8.5Tm+7%
Vas65.2L+13%
Qes0.41+10%
75%
Similarity
£67.14
Visaton
W 200 S - 8 OHM
8"
Xmax10mm+18%
Qts0.33+3%
BL9Tm+13%
Vas70L+21%
Qes0.36-3%
74%
Similarity
£140.05
Visaton
GF 200
8"
Xmax10mm+18%
Qts0.34+6%
BL9.2Tm+16%
Vas68L+17%
Qes0.370%
74%
Similarity
Visaton
GF 200 - 2 x 4 Ohm
8"
Xmax10mm+18%
Qts0.34+6%
BL9.2Tm+16%
Vas68L+17%
Qes0.370%
72%
Similarity
£1,058.95
Scanspeak
21WE/4542T00
8"
Xmax7.2mm-15%
Qts0.28-12%
BL8.2Tm+3%
Vas54L-7%
Qes0.3-19%
71%
Similarity
CIARE
HWB200
8"
Xmax7mm-18%
Qts0.38+19%
BL7.3Tm-8%
Vas57L-2%
Qes0.39+5%
69%
Similarity
£45.49
Peerless
HDS-P830869
8"
Xmax7.5mm-12%
Qts0.38+19%
BL9.3Tm+17%
Vas57.6L-1%
Qes0.4+9%
68%
Similarity
£176.73
Visaton
AL 200
8"
Xmax10mm+18%
Qts0.35+9%
BL8.8Tm+11%
Vas77L+33%
Qes0.39+5%
