7-inch LF driver · MW19 series · 39 mm voice coil · 70 W

SB Acoustics MW19PF-8 8Ω

Name: SB Acoustics MW19PF-8 8 Ohm
Brand: SB Acoustics
SKU: MW19PF-8

8 Ω

No current price

View offers

Open in 00 Simulator

Fs: 30Hz
Xmax: 6.5mm
SPL: 89dB
Pe: 70W
BL: 7T·m
Vd: 103cm³
Qts: 0.34
Vas: 63L

See all 21 specs

Curve provenanceInspect 3 traces

These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works

30 degrees
Frequency response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 eca6d35cbeef…Medium confidence1,734 selected pixels of 3,038
Manufacturer datasheet, page 1
60 degrees
Frequency response
Trace datasheet-response-trace-poc/v2
206 plotted pointsSource file SHA-256 eca6d35cbeef…Medium confidence833 selected pixels of 3,039
Manufacturer datasheet, page 1
impedance
Impedance response
Trace datasheet-response-trace-poc/v2
240 plotted pointsSource file SHA-256 eca6d35cbeef…Medium confidence1,718 selected pixels of 4,516
Manufacturer datasheet, page 1

Published graphs

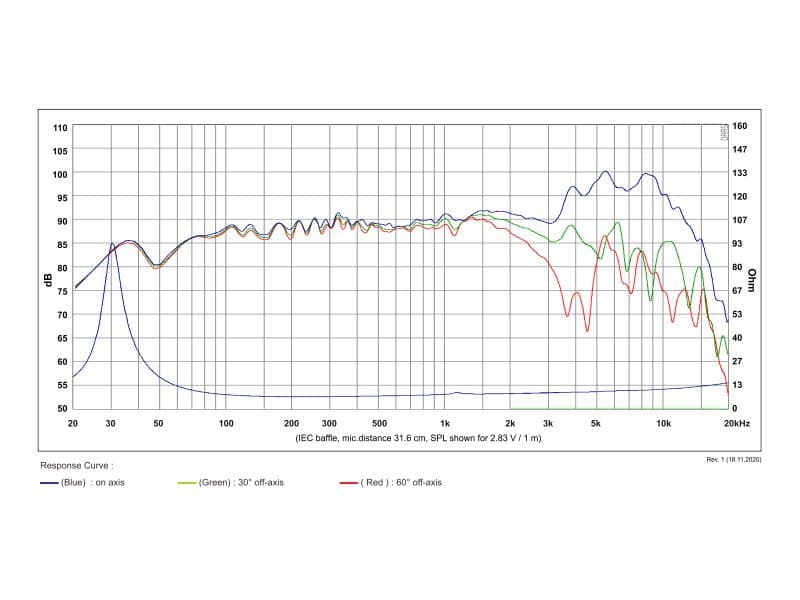

SB Acoustics MW19PF-8 manufacturer graph 1

Specifications

Published by SB Acoustics

Manufacturer page

Datasheet PDF

SB Acoustics MW19PF-8 is a 7-inch 8 ohm LF driver rated at 70 W RMS. The validated T/S data includes Fs 30 Hz, Qts 0.34, Vas 63 L, Xmax 6.5 mm, sensitivity 88.7 dB, plus 103 cm³ Vd and 81 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 30Hz
Qts: 0.34
Qes: 0.37
Qms: 5
Vas: 63L
Re: 6Ω
Le: 0.23mH

Motor and cone

BL: 7T·m
Sd: 158cm²
Mms: 16g
Xmax: 6.5mm
Vd †: 103cm³
Voice coil: 39mm
Flux density: 0.90T

Power and response

Sensitivity †: 88.7dB
Manufacturer sensitivity: 88.5dB
Power: 70W
Impedance: 8Ω
EBP †: 81 · Sealed or vented

Size and mounting

Weight: 2.3kg

Other published values

Cms: 1.78mm/N

† Calculated by bits from the published values

What this validation status means

Everything else SB Acoustics lists

LF · Primary · 7″

BL: 7T·m
Fs: 30Hz
Le: 0.23mH
Re: 6Ω
Sd: 158cm²
Cms: 1.78mm/N
Mms: 16g
Qes: 0.37
Qms: 5
Qts: 0.34
SPL: 88.7dB
Vas: 63L
Xmax: 6.5mm
Power: 70W
Impedance: 8Ω
Flux density: 0.90T
Sensitivity: 88.5dB
Calculated sensitivity †: 88.7dB
Manufacturer sensitivity: 88.5dB
Voice coil: 39mm
Weight: 2.3kg
