LF DriverSB20 series
SB Acoustics
SB Acoustics SB20PFCR30-8
SB Acoustics SB20PFCR30-8 is a 8" 8 ohm LF driver rated at 50W RMS. The validated T/S data includes Fs 34Hz, Qts 0.37, Vas 66.2L, Xmax 11.5mm, sensitivity 89.8dB, plus 248cm³ Vd and 79 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £34.95.
Size
8"
Impedance
8Ω
RMS Power
50W
Sensitivity
89.8dB
EBP
79
Either alignment
Vd
248cm³

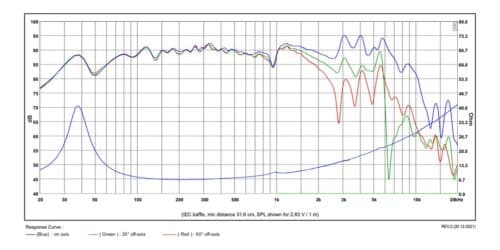

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees240 ptsp1medium
60 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
240 plotted pointsMedium confidence1,774 selected pixels of 3,388 - Trace datasheet-response-trace-poc/v1
60 degrees
Frequency response
240 plotted pointsMedium confidence1,280 selected pixels of 2,721 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,710 selected pixels of 5,129
T/S Parameters
Valid
Fs34Hz
Qts0.37
Qes0.43
Qms2.7
Vas66.2L
Re5.6Ω
Le0.84mH
BL7.7Tm
Sd216cm²
Mms21g
Xmax11.5mm
SPL90dB
Power50W
Impedance8Ω
Voice Coil31mm
Flux Density1.20T
Pricing & availability
Price definitionsPrice movement
Best current price
£34.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight1.4kg
