SB Acoustics SB23NRXS45-8
SB Acoustics SB23NRXS45-8 is a 8" 8 ohm LF driver rated at 60W RMS. The validated T/S data includes Fs 27Hz, Qts 0.38, Vas 94L, Xmax 13mm, sensitivity 88.6dB, plus 281cm³ Vd and 66 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £84.41.
Size
8"
Impedance
8Ω
RMS Power
60W
Sensitivity
88.6dB
EBP
66
Either alignment
Vd
281cm³

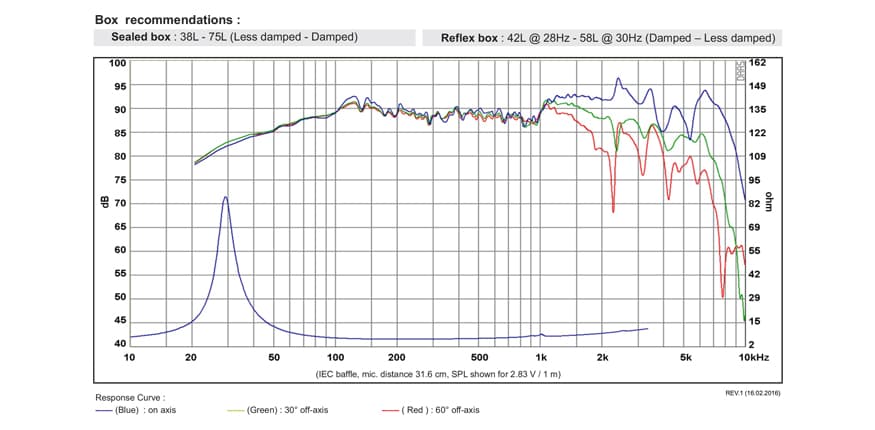

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
30 degrees215 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
30 degrees
Frequency response
215 plotted pointsMedium confidence1,062 selected pixels of 3,426
T/S Parameters
Valid
Fs27Hz
Qts0.38
Qes0.41
Qms5.4
Vas94.0L
Re5.6Ω
Le0.60mH
BL7.5Tm
Sd216cm²
Mms25g
Xmax13.0mm
SPL89dB
Power60W
Impedance8Ω
Voice Coil46mm
Flux Density0.86T
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£84.41
inc VAT
Out of stock
soundimports
Updated 11 Sept 2026· 8Ω
Source: inc VAT
£97.90
inc VAT
Out of stock
willyshifi
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£110.95
inc VAT
Best current price
Updated 17 May 2026
leanbusiness
£84.41
Avg £97.68£13.27 below avg (-13.6%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight2.7kg
